Pocket transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz
RELACART UT-200 Bodypack with HM-800S Headset

svg
RELACART

Pocket transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

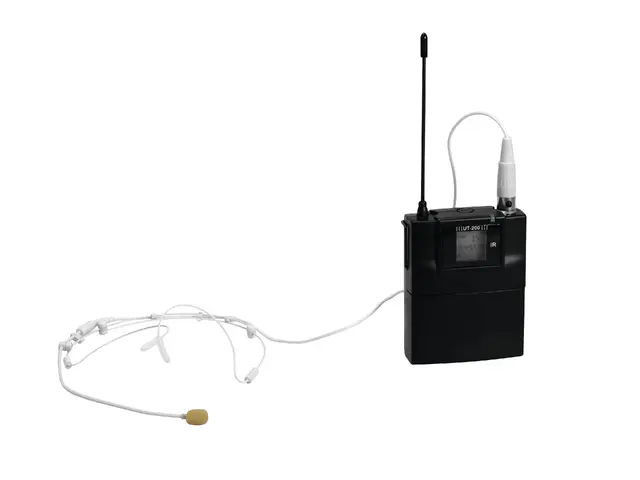

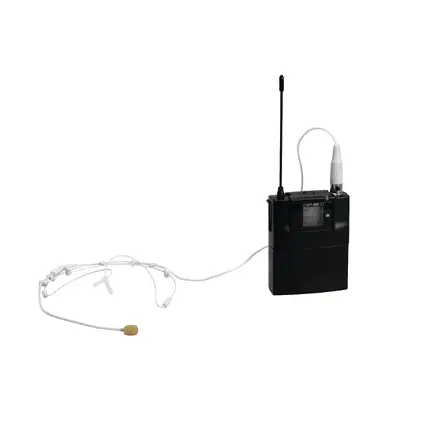

RELACART UT-200 Bodypack with HM-800S Headset

Item no. 13055225

Features

Pocket transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

  • Pocket transmitter for receiver WAM-400
  • Durable aluminum alloy housing, applicable for touring
  • Incl. headset microphone HM-800S
  • Lavalier microphone LM-C400 optional
  • Pilot tone technology (PLL) for interference-free operation
  • 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Infrared interface for easy and error-free synchronization with the receiver via infrared signal
  • Operation range 80 meters
  • LED for battery status, frequency, channel and group
  • Mute function
  • RF output power Hi/Low adjustable
  • Long battery life for up to 11 hours continuous operation
  • Operation via 2 x 1.5 V battery (type AA), not included
  • License-free and approved in the EU (please check on a country-by-country basis)
  • Polar pattern: Omnidirectional
  • Battery: 2 xMignon (AA) (provided)
Technical specifications
Type:Pocket transmitter
Power connection:Battery/battery pack (not included)
Polar pattern:Omnidirectional
Battery:2 xMignon (AA) (provided)
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency range:45 - 18000 Hz
Capsule type:Condenser
Material:aluminium
Width:6,6 cm
Height:8,4 cm
Depth:2,3 cm
Weight:0,18 kg
Transmitting frequencies:90
10 frequency banks with up to 10 preset frequencies each
Switching bandwidth:11 MHz
Deviation:±45 kHz
Modulation:FM
Coverage:80 m (with line-of-sight)
Connection:4-pin mini XLR jack (supplies 5 V)
Current consumption:110 mA
Headset microphone:
Type:Electret
Directivity pattern:Omnidirectional
Sensitivity:-47 dB
Impedance:2.2 kohms
Power supply:2-10 V DC
Connection:cable with 4-pin mini XLR plug
Cable length:100 cm
Capsule dimensions:6 x 5 mm
Packaging units
PU EAN Weight Dimensions
1 4026397612639 0,35 kg 29,5cm x 11cm x 7cm
10 4026397612646
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
13055225-Manual-111811-1.000-en.pdf (4 MB) 1.000 en
All images
Name Version Language
13055225-Images.zip
Publications
main catalog 2019 St. E #28
On page: 74
Size: 284 MB
