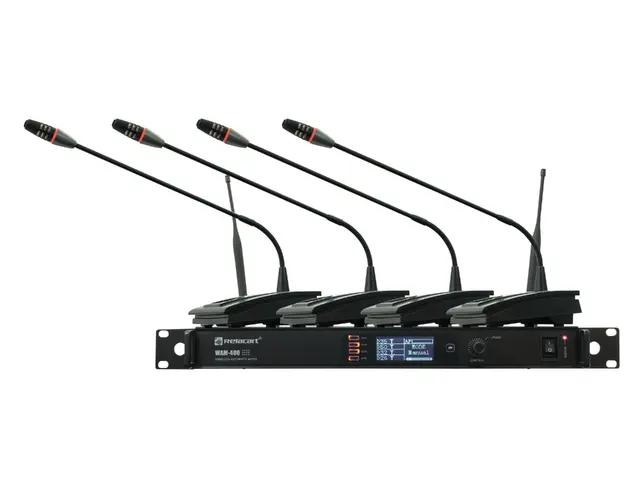

Digital conference system, 4-channel mixer and 4 UHF mics, 823-832 + 863-865 MHz
RELACART Set 1x WAM-400 and 4x UD-200 System

Name: RELACART Set 1x WAM-400 and 4x UD-200 System
Brand: RELACART

Stock for approx. 12 wk(s)

929,00 €

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Features

Digital automatic mixer with 4 input channels
4 gooseneck microphones with UHF pilot tone technology (PLL), LCD and durable metal diecast housing
2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
Easy and error-free synchronization between receiver and transmitters via infrared signal
Precise and noise-free microphone selection that automatically adjusts to changes in background room noise
Eliminates acoustic feedback and background noise
Automatic mixing technology activates only those microphones being addressed
Number of open microphones adjustable
Control algorithm adjusts gain automatically
Auto mixing parameters adjustable
Up to 5 units can be linked for operation with 20 wireless microphones, link cables included
User-friendly menu operation via bright LCD
Last used microphone stays activated (switchable)
Adjustable priority circuit for each microphone
Automatic frequency scan (AFS) finds interface-free channels
Lock function avoids accidental changing of settings
Line input e.g. for multimedia applications from PC, laptop, MP3 players
Balanced and unbalanced line outputs for PA or recording applications
Rack installation, 1 U
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
On/off/mute-switch: Yes

Technical specifications

System:	True Diversity, 4 channels
Carrier frequency:	UHF 823-832 and 863-865
Receiving frequencies:	90
	10 frequency banks with up to 10 preset frequencies each
Switching bandwidth:	11 MHz
Deviation:	±45 kHz
Frequency stability:	±10 ppm
T.H.D.:	<0.9 % at 1 kHz
S/N ratio:	>100 dB
Modulation method:	FM
Sensitivity:	5 dBµV (S/N >60 dB at 25 deviation)
Audio output:	XLR bal., 6.3 mm jack unbal., RCA L/R
Audio output level:	-10 dBV
Audio input:	RCA L/R
Audio input level:	-10 dBV
Communication:	2 x RS-232 (for external controllers)
Antenna inputs:	2 x BNC (supply 8 V/150 mA)
Power supply:	12 V DC, 1 A
	via supplied power unit connected to 100-240 V AC, 50/60 Hz
Dimensions (L x W x H):	483 x 245 x 44 mm
	Rack installation with 1 U
Microphones:
Type:	Gooseneck microphone
Carrier frequency:	UHF 823-832 and 829-832 MHz
Switching bandwidth:	11 MHz
Deviation:	±45 kHz
Modulation:	FM
Frequency stability:	±0.0005 %
RF power output:	10 mW
Coverage:	60 m (with line-of-sight)
Power supply:	2 x 1.5 V battery, type AA
Current consumption:	approx. 85 mA
Battery life:	approx. 13 hours
Dimensions:	140 x 115 x 455 mm
Frequency band:	UHF 863 - 865 MHz
Frequency band:	UHF 823 - 832 MHz
Weight:	3,2 kg
Power consumption:	12 W
Material:	Metal
Frequency range:	65 - 16000 Hz
