UHF boundary microphone with PLL multifrequency transmitter

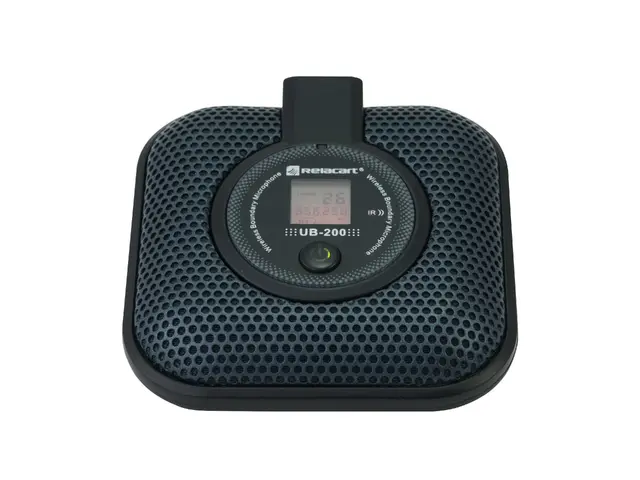

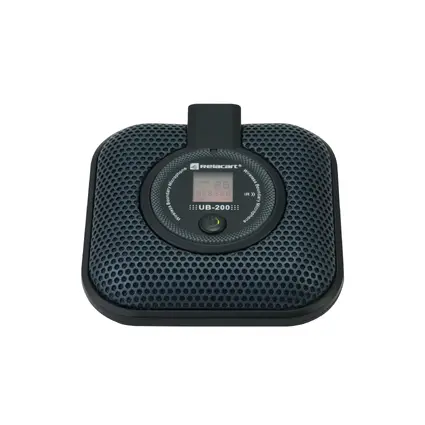

RELACART UB-200 UHF-Boundary Microphone

Name: RELACART UB-200 UHF-Boundary Microphone
Brand: RELACART

only a few items available

169,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Features

Electret boundary microphone with UHF pilot tone technology (PLL)
2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
Parallel operation of up to 9 transmitters is possible without any interference
Suitable for the WAM-400 automatic mixer
Infrared interface for easy and error-free synchronization with the receiver via infrared signal
Operation range with line of sight approx. 60 meters
LCD for battery status, frequency and channel
Mute function
Durable metal diecast housing
Operation via 2 x 1.5 V batteries (type AA), not included
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
Mute function: On/off/mute switch
Power supply of device: Battery/battery pack

Technical specifications

Type:	Electret boundary microphone
Directivity pattern:	Semi-cardioid
Carrier frequency:	UHF 823-832 and 829-832 MHz
Switching bandwidth:	11 MHz
RF power output:	10 mW
Deviation:	±45 kHz
Modulation:	FM
Frequency stability:	±0.0005 %
Dynamic range:	>90 dB, 1 kHz at max. SPL
RF power output:	10 mW
Coverage:	60 m (with line-of-sight)
Power supply:	2 x 1.5 V battery, type AA
Current consumption:	approx. 90 mA
Battery life:	approx. 10 hours
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Weight:	0,516 kg
Frequency range:	50 - 17000 Hz
Height:	4,1 cm
Depth:	11,9 cm
Width:	11 cm
Material:	Metal

Packaging units

PU	EAN	Weight	Dimensions
1	4026397525816	0,63 kg	16cm x 18,5cm x 7cm
12	4026397537314	8,40 kg	39cm x 35cm x 28cm
