Microphone with PLL multifrequency transmitter for WAM-400, 823-832 + 863-865 MHz

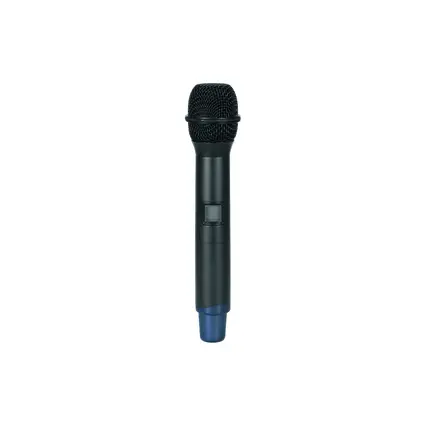

RELACART UH-200 UHF Handheld Microphone for WAM-400

svg
5,2 cm
svg
RELACART

Microphone with PLL multifrequency transmitter for WAM-400, 823-832 + 863-865 MHz

RELACART UH-200 UHF Handheld Microphone for WAM-400

Item no. 13055219

Features

Microphone with PLL multifrequency transmitter for WAM-400, 823-832 + 863-865 MHz

  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Ergonomic aluminum alloy housing, applicable for touring
  • Matches receiver WAM-400
  • Infrared interface for easy and error-free synchronization with the receiver via infrared signal
  • Operation range approx. 80 meters
  • OLED display for battery status, frequency and channel
  • Mute function
  • RF output power Hi/Low adjustable
  • Operation via 2 x 1.5 V battery (type AA), not included
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)
  • Polar pattern: Cardioid
  • Battery: 2 x Mignon (AA) (not included)
Technical specifications
Type:Transmitter
Power connection:Battery/battery pack
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Capsule type:Dynamic
Material:Aluminum
Length:25,5 cm
Diameter:5,2 cm
Weight:0,29 kg
Type:Dynamic
Directivity pattern:Cardioid
Switching bandwidth:11 MHz
RF power output:10 mW (Low), 40 mW (Hi)
Deviation:±45 kHz
Modulation:FM
Coverage:60 m (with line-of-sight)
Current consumption:110 mA
Packaging units
PU EAN Weight Dimensions
1 4026397592436 0,42 kg 29cm x 11,5cm x 7cm
9 4026397592948 4,60 kg 52cm x 42cm x 34cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
13055219-Manual-99126-1.000-WAM-400-de_en.pdf (3 MB) 1.000 de_en
All images
Name Version Language
13055219-Images.zip
Publications
main catalog 2019 St. E #28
On page: 74
Size: 284 MB
