Pocket transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz
RELACART UT-222 Bodypack with HM-800S Headset

RELACART

Pocket transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

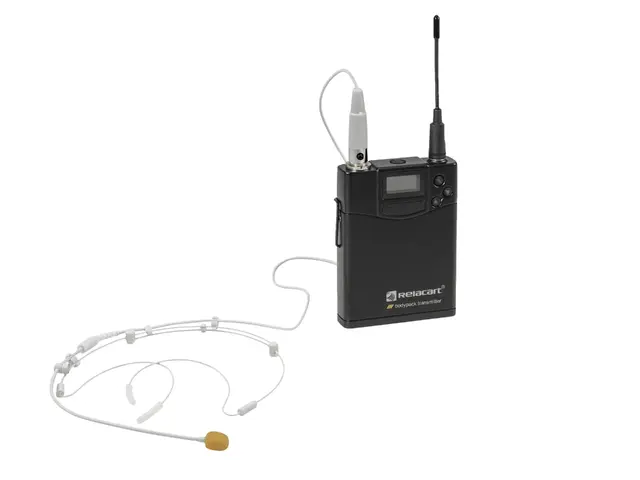

RELACART UT-222 Bodypack with HM-800S Headset

available in approx. 2 wk(s)
109,00
Save money: This article is available in a bundle.
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 13055211

svg
Save money: This article is available in a bundle.
Sets are loaded. Please wait...
Features

Pocket transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

  • Pocket transmitter for receivers UR-222S and UR-260D
  • Durable aluminum alloy housing, applicable for touring
  • Incl. headset microphone HM-800S
  • Lavalier microphone LM-C400 optional
  • Pilot tone technology (PLL) for interference-free operation
  • 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Infrared interface for easy and error-free synchronization with the receiver via infrared signal
  • Operation range approx. 80 meters
  • OLED for battery status, frequency, channel and group
  • Mute function
  • Adjustable input gain
  • RF output power Hi/Low adjustable
  • Lock function avoids accidental changing of settings
  • Long battery life for up to 11 hours continuous operation
  • Operation via 2 x 1.5 V battery (type AA), not included
  • License-free and approved in the EU (please check on a country-by-country basis)
  • Polar pattern: Omnidirectional
  • Battery: 2 x Mignon (AA) (not included)
  • Power connection: Battery/battery pack (not included)
  • Mute function: On/off/mute switch
Technical specifications
Transmitting frequencies:90
10 frequency banks with up to 10 preset frequencies each
Switching bandwidth:11 MHz
Deviation:±45 kHz
Modulation:FM
Coverage:80 m (with line-of-sight)
Connection:4-pin mini XLR jack (supplies 5 V)
Current consumption:approx. 110 mA
Battery life:approx. 11 hours
Dimensions:84 x 66 x 23 mm
Headset microphone:
Type:Electret
Sensitivity:-47 dB
Impedance:2.2 kohms
Power supply:2-10 V DC
Connection:cable with 4-pin mini XLR plug
Cable length:approx. 1 m
Capsule dimensions:6 x 5 mm
Polar pattern:Omnidirectional
Battery:2 x Mignon (AA) (not included)
Frequency range:45 - 18000 Hz
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Power connection:Battery/battery pack
Material:aluminium
Height:8,4 cm
Width:6,6 cm
Depth:2,3 cm
Weight:0,175 kg
Packaging units
PU EAN Weight Dimensions
1 4026397566550 0,27 kg 21cm x 16cm x 8cm
10 4026397573800
20 4026397573794 7,90 kg 53cm x 33cm x 42cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
13055211-Manual-99676-1.100-de_en.pdf (5 MB) 1.100 de_en
All images
Name Version Language
13055211-Images.zip
Publications
Relacart Prospekt 032017
On page: 11
Size: 4 MB
main catalog 2019 St. E #28
On page: 73
Size: 284 MB
