True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz
RELACART UR-222D 2-channel UHF System 823-832 + 863-865 MHz

svg
svg
svg
5,4 cm
svg
svg
1 U
svg
RELACART

True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz

RELACART UR-222D 2-channel UHF System 823-832 + 863-865 MHz

Stock for approx. 12 wk(s)
469,00
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 13055192

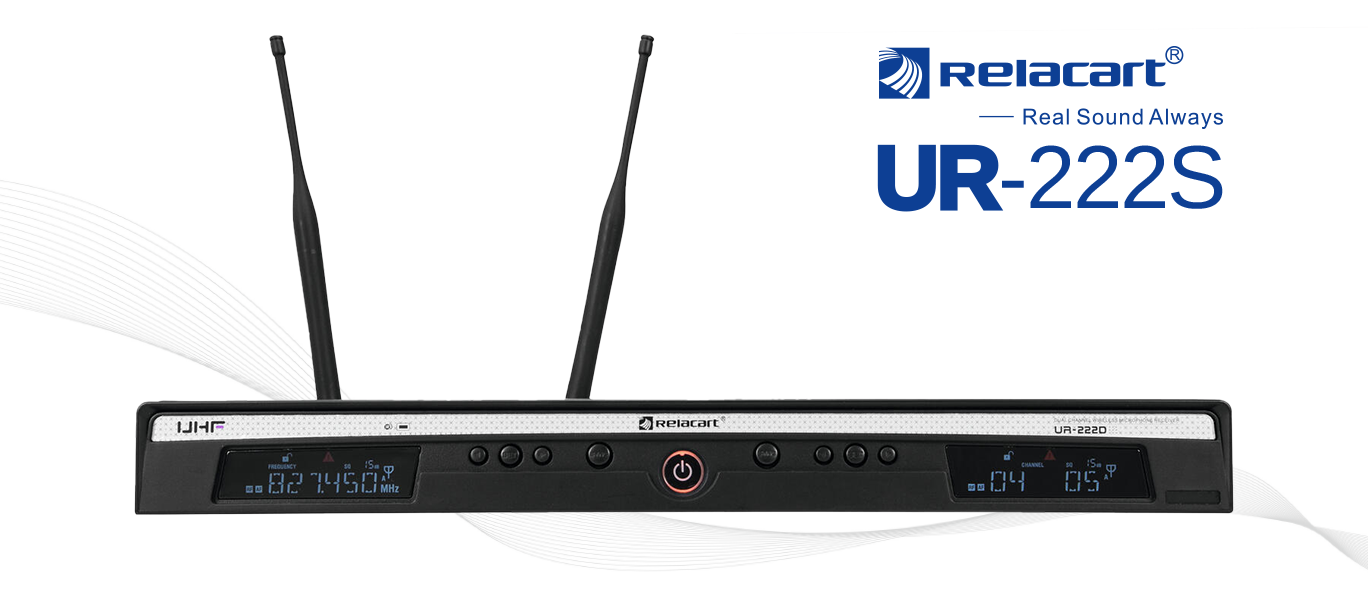

RELACART UR-222D cover image
Relacart UR-222

Reliable wireless microphone system


The UR-222 is an inexpensive and reliable UHF system for daily use. It is quickly ready for use and robust enough for touring.

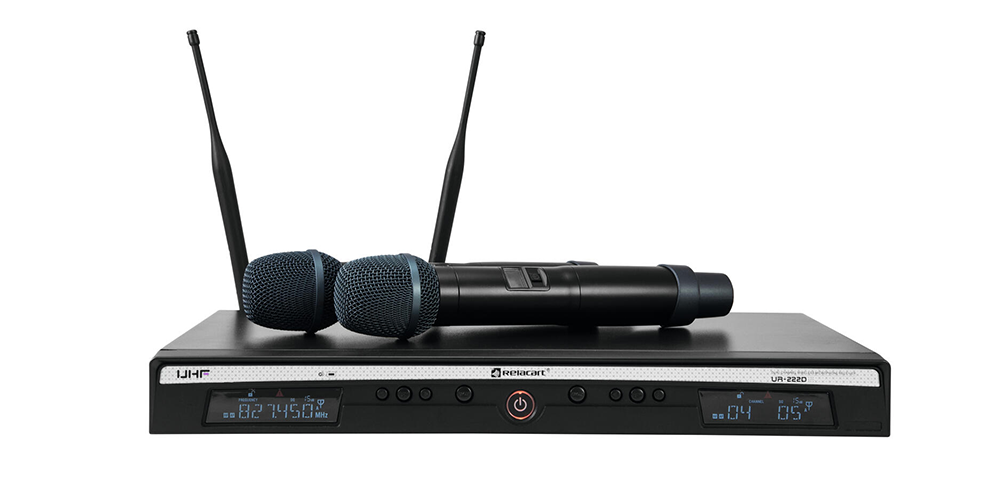

RELACART UR-222D system

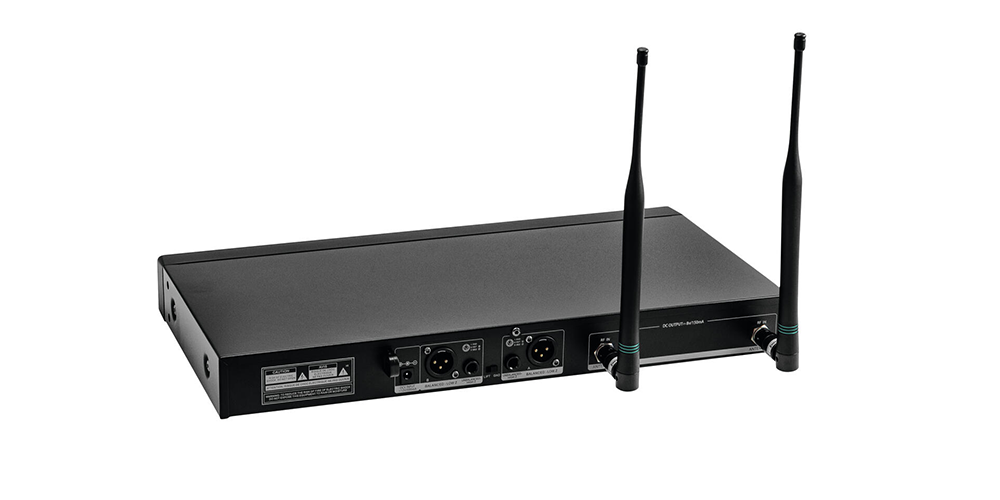

RELACART UR-222D receiver
Fast setup
Set up the system quickly and easily: Automatic Frequency Scan (AFS) finds interference-free reception channels at the touch of a button. Thanks to infrared synchronization between receiver and transmitter, the system is ready for use in no time.

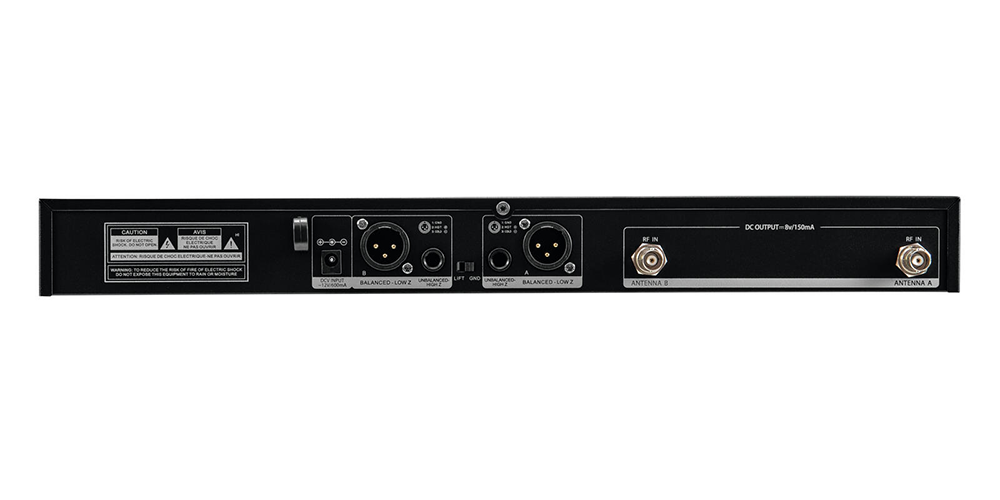

RELACART UR-222D connections
Interference-free transmission
The system works with 90 channel presets in 10 groups. Up to 9 systems can be used at the same time. True diversity reception technology and pilot tone technology ensure high transmission reliability.


Licence free
The two frequency bands 823-832 MHz (duplex gap) and 863- 865 MHz are free of registration and fees in large parts of the EU.
Strapazierfähiges Gehäuse
The wireless microphone has a durable metal housing for touring use and is comfortable to hold.

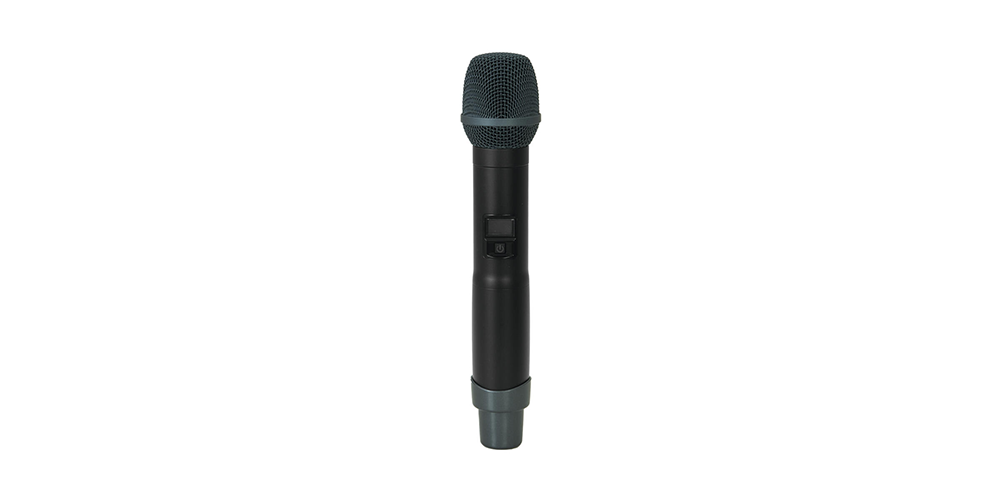

RELACART UR-222D microphone
The UR-222 is available with one channel (UR-222S) or two channels (UR-222D).
UR-222S
UR-222S
Set consisting of:
mpn13055189
1 x RELACART UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz
mpn13055206
2 x RELACART UH-222D Microphone 823-832 + 863-865 MHz
Features

True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz

RELACART UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz

2-channel multifrequency wireless receiver with high-quality diversity reception

  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Pilot frequency squelch technology delete wireless RF interference
  • Automatic frequency scan (AFS) finds interference-free channels
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Rugged metal housing
  • Multicolor LCD display
  • UHF 863 - 865 MHz License-free and approved in Europe
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Operating range up to 80m with line-of-sight
  • Desktop console housing
  • (19") 48.3 cm rack installation possible 1 U
  • Up to 9 transmitters can be operated in parallel without interference
  • Charge status indicator

Package contents

  • 1 x receiver, 1 x external mains adapter, 2 x antenna, 2 x mounting bracket, 6 x screw, 2 x jack cable, 1 x user manual, 1 x declaration of conformity

RELACART UH-222D Microphone 823-832 + 863-865 MHz

Hand-held microphone with PLL multifrequency transmitter

  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Ergonomic aluminum alloy housing, applicable for touring
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • RF output power Hi/Low adjustable
  • Gain level Hi/Mid/Low adjustable
  • Capsule M-022
  • Directly compatible with Shure's SM58 capsule
  • Polar pattern: Super cardoid
  • Operating range up to 80m
  • UHF 863 - 865 MHz License-free and approved in Europe
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • OLED display
  • Charge status indicator

Package contents

  • 1 x microphone, 1 x user manual, 1 x declaration of conformity
Technical specifications
Type:Wireless set
Weight:2,89 kg
RELACART UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz
Type:Receiver
Power supply:100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:5 W
Power connection:Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:2
Frequency range:45 - 18000 Hz
S/N ratio:>105 dB
Range:Range up to 80m with line-of-sight
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Diversity:Antenna diversity
Switching bandwidth:11 MHz
Frequency stability:± 0,0005 %
Parallel mode:Max. 9 transmitter
Modulation:FM
Frequency selection:90 switchable frequencies
In 10 groups with up to 10 preset frequencies each
Display type:Multicolor LCD display
Display:Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency
Control elements:Navigation keys, menu, groundlift selector
Connections:Output: line via 2 x 3-pin XLR
Output: line via 2 x 6.3 mm plug (unbal.)
Antenna via 2 x BNC (F) 8 V
Material:Metal
Housing design:Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions:Width: 41 cm
Depth: 26 cm
Height: 4,6 cm
Weight:2,32 kg
RELACART UH-222D Microphone 823-832 + 863-865 MHz
Type:Hand-held transmitter
Power supply:3 V DC
Capsule type:Dynamic
Polar pattern:Super cardoid
Battery:2 x Mignon (AA) (not included)
Frequency range:120 - 16000 Hz
Sensitivity:-53 dB
Max. SPL:145 dB
Range:Range up to 80m
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Switching bandwidth:11 MHz
RF power output:10 mW
Modulation:FM
Frequency selection:90 switchable frequencies
In 10 groups with up to 10 preset frequencies each
Display type:OLED display
Display:Charge status indicator , frequency , channel
Control elements:Gain-switch (high-mid-low), transmitter power switch (high-low)
Switch:On/off/mute switch
Material:Aluminum
Dimensions:Length: 26 cm
Diameter: Ø 5,4 cm
Weight:280 g
Packaging units
PUEANWeightDimensions
140263976025793,60 kg60cm x 43cm x 8,5cm
4402639760258615,85 kg44cm x 37cm x 61cm
