High-quality hand-held microphone with multifrequency transmitter

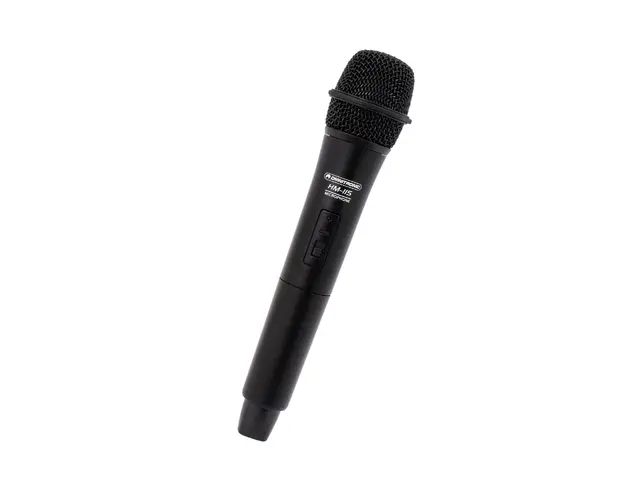

OMNITRONIC HM-115 MK II Wirel. microphone

Name: OMNITRONIC HM-115 MK II Wirel. microphone
Brand: OMNITRONIC

The article is no longer in our assortment.

Features

High-quality hand-held microphone with multifrequency transmitter

Provides high-quality vocal and voice pickup for stages, discotheques, public speaking, theater etc.
Integrated multifrequency transmitter with UHF PLL technology
Operation in the low-interference UHF-band (800.100-813.000 MHz) with 16 frequencies selectable
Dynamic microphone capsule
Cardioid characteristic
Resonance-absorbing coating
LED indicator for battery capacity
Power supply via 2 x 1.5 V mignon batteries (type AA) (not supplied)
License-free and approved in Germany

Technical specifications

Frequency range:	50 - 15000 Hz
Frequency band:	UHF
Microphone-Type:	Dynamic
Length:	28,6 cm
Diameter:	5,6 cm
Type:	Dynamic hand-held microphone
Polar pattern:	Cardioid
Carrier frequency:	UHF 800.100-813.000 MHz
Frequency stability:	±0.005 %
RF power output:	10 mW max.
Power consumption:	approx. 65 mA, ±5 mA
Power supply:	2 x 1.5 V mignon batteries (type AA)
Battery life:	12 hours
Dimensions (D x L):	56 x 286 mm
Weight:	250 g

Packaging units

PU	EAN	Weight	Dimensions
1	4026397401646	0,40 kg	30cm x 6cm x 7cm
50	4026397401653	21,35 kg	44,5cm x 35cm x 53cm

Support

Spare parts

Loading spareparts. Please wait...

Downloads

User manual

Name	Version	Language
13055105-Manual-46339-1.300-de_en.pdf (181 KB)	1.300	de_en

Service document

Name	Version	Language
13055105-Service-6245-1.000-de.pdf (152 KB)	1.000	de

All images

Name	Version	Language
13055105-Images.zip
