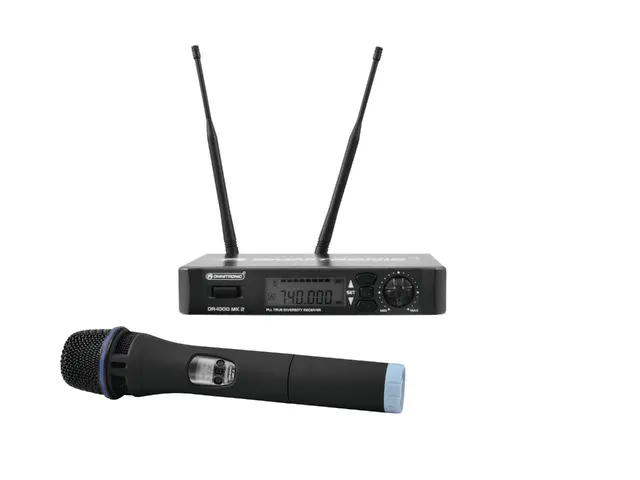

Hand-held microphone and multifrequency wireless receiver
OMNITRONIC HM-1000 MK2 + DR-1000 MK2 Set

Name: OMNITRONIC HM-1000 MK2 + DR-1000 MK2 Set
Brand: OMNITRONIC

Hand-held microphone and multifrequency wireless receiver

OMNITRONIC HM-1000 MK2 + DR-1000 MK2 Set

The article is no longer in our assortment.

Item no. 13055091

Print product

Product badge

5,5 cm

13055092 OMNITRONIC HM-1000 MK2 Wireless microphone

Professional features for professional use
Who does not know the problems caused by anxious users: the presenter starts switching on and off the microphone, tests the signal transmission by knocking on the cover and making wild announcements or even changes the frequency. Thanks to OMNITRONIC's HM-1000, these strains on our nerves are over. Due to a special lock function, the user cannot make any changes by himself or even switch the microphone on and off.
The sound engineer can read all microphone operation modes right from the receiver display: is the frequency right, are microphone signals received and is the battery power still sufficient?
In this way, an event can perfectly be prepared and the sound engineer can act immediately if problems occur.
Every OMNITRONIC HM-1000 comes with 8 different colour caps so that every frequency can individually be marked. After making the necessary adjustments simply attach the colour cap to the end of the microphone body.
All necessary adjustments can easily be carried out via micro buttons. All modes are indicated on the LC-display.
If the signal strength at the receiver is too high, the microphone gain can be adjusted in 4 steps: 0, -10, -20 and -30 dB.
The metal housing of the HM-1000 is very rugged and could not be destroyed by falling one meter.

13061092 OMNITRONIC DR-1000 MK2 Wireless Receiver

A variety of options with multi-frequency wireless systems
With the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.

Features

Set consisting of:
1x 13055092: OMNITRONIC HM-1000 MK2 Wireless microphone
1x 13061092: OMNITRONIC DR-1000 MK2 Wireless Receiver

Hand-held microphone and multifrequency wireless receiver

Dynamic hand-held microphone with UHF pilot tone technology (PLL)
Provides high-quality vocal and voice pickup
Matches receiver DR-1000 MK2
Operation in the low-interference UHF band (740-764 MHz)
192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
Multifrequency wireless receiver with UHF pilot tone technology (PLL)
High-quality true diversity reception
Two removable antennas (BNC connection)
Operation in the low-interference UHF band (740-764 MHz)
192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
Polar pattern: Cardioid

Microphone

Mute function: Yes

13055092 OMNITRONIC HM-1000 MK2 Wireless microphone

Hand-held microphone with PLL multifrequency transmitter

Dynamic hand-held microphone with UHF pilot tone technology (PLL)
Provides high-quality vocal and voice pickup for stages, discotheques, public speaking, theater etc.
Matches receiver DR-1000 MK2
Operation in the low-interference UHF band (740-764 MHz)
192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
Operation range 100 meters
Multichannel operation with up to 16 microphones possible
LCD for battery status and frequency
Sensitivity adjustable in 4 steps (0, -10, -20, -30 dB)
Lock function avoids undesired changes by users, also accidental shutdown
Aluminum diecast housing
Operation via 2 x 1.5 V mignon battery (type AA), not included
Delivery includes microphone case, microphone holder and 8 color rings to distinguish the microphones on stage
License required in Germany
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (provided)
Mute function: Yes

13061092 OMNITRONIC DR-1000 MK2 Wireless Receiver

Multifrequency wireless receiver, True Diversity

Multifrequency wireless receiver with UHF pilot tone technology (PLL)
High-quality true diversity reception
Two removable antennas (BNC connection)
Operation in the low-interference UHF band (740-764 MHz)
192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
Operation range with line of sight 100 meters
System expandable to up to 16 receivers with 16 microphones
LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
Automatic frequency scan
Output level control
Lock function avoids undesired changes by users, also accidental shutdown
Mute mode when signal is absent or too weak
6.3 mm and XLR output
Operation via supplied power unit
Rugged metal housing
Optional mounting frame for rack installation available
Optional antenna boosters and antenna distributor for easy setup of several receivers
Optional hand-held microphone, pocket transmitter, lavalier microphone and headset available
License required in Germany
Housing design: (19") 48.3 cm rack installation possible

Technical specifications

Polar pattern:	Cardioid
Frequency band:	UHF 740 - 764 MHz
Microphone-Type:	Dynamic
Type:	Wireless set


13055092 OMNITRONIC HM-1000 MK2 Wireless microphone
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (provided)
Frequency range:	50 - 16000 Hz
Frequency band:	UHF 740 - 764 MHz
Microphone-Type:	Dynamic
Type:	Transmitter
Length:	24,5 cm
Diameter:	5,5 cm
Weight:	0,88 kg
Type:	Hand-held dynamic microphone
Directivity pattern:	Cardioid
Switching bandwidth:	24 MHz
No. of frequencies:	192
Frequency steps:	125 kHz
Sensitivity:	0, -10, -20, -30 dB
Modulation:	FM
Frequency stability:	±0.005%
RF power output:	10 mW
Coverage:	100 m (with line-of-sight)
Current consumption:	approx. 200 mA
Dimensions:	55 x 245 mm

13061092 OMNITRONIC DR-1000 MK2 Wireless Receiver
Power supply:	110-240 V AC, 50/60 Hz
Power consumption:	6,00 W
Frequency band:	UHF 740 - 764 MHz
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Range:	100 m with line of sight
Type:	Receiver
Housing design:	(19") 48.3 cm rack installation possible
Width:	21,3 cm
Height:	4 cm
Depth:	15 cm
Weight:	1,33 kg
System:	True diversity, one channel
Carrier frequency:	UHF 740-764 MHz
Switching bandwidth:	24 MHz
No. of frequencies:	192
Frequency steps:	125 kHz
Frequency stability:	±0.005 %
T.H.D.:	<0.6 % at 1 kHz
S/N ratio:	>105 dB
Dynamic range:	>96 dB
Modulation method:	FM
AF response:	40-18000 Hz
Audio output:	3-pin XLR, balanced
	6.3 mm jack, unbalanced
	via supplied power unit
Dimensions:	213 x 150 x 40 mm
