2-channel UHF PLL microphone system

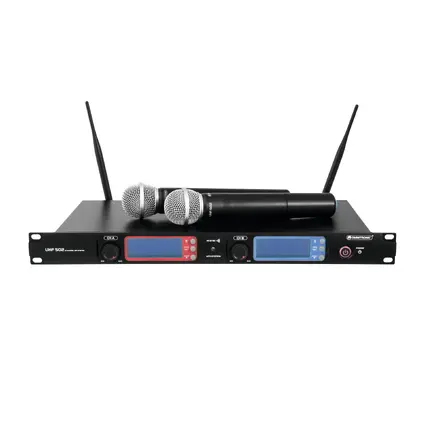

OMNITRONIC UHF-502 2-Channel Wireless Mic System 863-865 MHz

OMNITRONIC

2-channel UHF PLL microphone system

OMNITRONIC UHF-502 2-Channel Wireless Mic System 863-865 MHz

Stock for approx. 12 wk(s)
179,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 13053530

Features
  • 2-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
  • 80 fixed frequencies selectable per channel
  • Pilot tone technology (PLL) and noise squelch for interference-free operation
  • Operation range with line of sight approx. 50 meters
  • Automatic frequency scan (AFS) finds interface-free channels
  • Easy and error-free synchronization between receiver and transmitters via infrared signal
  • LCDs for RF reception level, AF audio level, frequency and channel
  • Parallel operation of up to 4 transmission channels is possible without any interference
  • Lock function avoids accidental changing of the transmission channel
  • 2 separate channels with volume controls
  • Balanced XLR output per channel
  • 6.3 mm jack for mixed signal output, switchable mic/line
  • Jack cable included
  • Non-diversity system with two removable antennas (BNC connection)
  • Microphones with mute switch and color caps for distinction on stage
  • Operation of the receiver unit via supplied power unit
  • Operation of the microphones via 2 x 1.5 V batteries (type AA), not included
  • Receiver unit with aluminum front panel and dimensions for 483 mm rack installation (1U)
  • License-free and approved in the EU
  • On/off/mute-switch: On/off/mute-switch Microphone
  • Polar pattern: Unidirectional
Technical specifications
System:Non-diversity, 2 channels
Carrier frequency:UHF 863-865 MHz
Color code:CH A = red, CH B = blue
Receiving frequencies:80
Coverage:50 m (with line-of-sight)
RF power output:10 mW
Modulation method:FM
Frequency stability:10 ppm
Sensitivity:-95 dB
S/N ratio:>80 dB
Selectivity:>80 dB
T.H.D.:<0.1 %
Audio outputs:
Mic:2 x XLR, bal.
Mix:6.3 mm jack, unbal.
Power supply:
Receiver:12 V DC via supplied power unit (100-240 V AC, 50/60 Hz)
Microphones:2 x 1.5 V battery, type AA
Dimensions, weight:
Receiver:253 x 482 x 51 mm (L x W x H), 1.9 kg
Microphones:50 x 240 mm (D x L), 230 g (w/o batteries)
Frequency band:UHF 863 - 865 MHz
Power consumption:5 W
Material:Metal
Frequency range:40 - 18000 Hz
Weight:2,5 kg
Height:4,45 cm
Depths:25,3 cm
Width:48,3 cm
Packaging units
PU EAN Weight Dimensions
1 4026397603989 3,00 kg 51cm x 39cm x 8cm
5 4026397617405 16,10 kg 52cm x 38cm x 42cm
