UHF wireless guitar system
OMNITRONIC GS-100 UHF wireless guitar set

OMNITRONIC

UHF wireless guitar system

OMNITRONIC GS-100 UHF wireless guitar set

Item no. 13053501

Features

UHF wireless guitar system

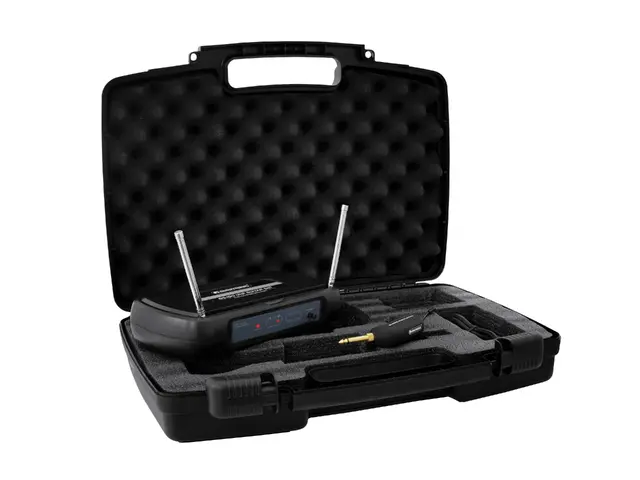

  • Set includes receiver and mini-transmitter
  • The GS-100 guitar system replaces the cable between guitar and stage amplifier or mixer, providing unparalleled freedom of movement on stage
  • Receiver:
  • Diversity system with folding antennas
  • Operation in the low-interference UHF band (863-865 MHz)
  • Balanced XLR output and unbal. 6.3 mm output
  • Adjustable squelch and output level
  • LED indicators for antenna A/B, audio signal and peak
  • Incl. jack-jack cable for connecting the receiver to an audio mixer
  • Operation via supplied power unit
  • Mini-transmitter:
  • Lightweight and aerodynamic design with 6.3 mm jack
  • Switchable input attenuation: 0 dB, -0 dB
  • LED indicator for battery capacity
  • Operation via supplied micro battery (type AAA)
  • License-free and approved in the EU
  • Battery: 1 xMicro (AAA) (not included)
Technical specifications
Power consumption:5,00 W
Battery:1 xMicro (AAA) (not included)
Width:23,5 cm
Height:4,4 cm
Depth:11,8 cm
Weight:1,70 kg
Carrier frequency:UHF 863.900 MHz
Coverage:50 m (with line-of-sight)
Frequency range:60-16000 Hz (±3 dB)
T.H.D.:<1 %
Dynamic range:90 dBA
Receiver:
System:Diversity, 1 channel
Max. audio output level:-18 dBV/ 3000 ohms (6.3 mm jack)
-12 dBV/ 600 ohms (XLR)
Output impedance:1 kohms (6.3 mm jack)
200 ohms (XLR)
Sensitivity:<-92 dB
Power supply:12-18 V DC, 400 mA (receiver)
230 V AC, 50 Hz (power supply unit)
Micro-transmitter:
RF power output:<10 mW
Frequency range:50-20000 Hz
T.H.D.:<1 %
Dynamic range:90 dBA
S/N ratio:<102 dBV
Max. audio input level:10 dBV
Gain adjustment range:30 dB
Input impedance:500 kohms
Dimensions (H x W x D):76 x 20 x 28 mm
Packaging units
PU EAN Weight Dimensions
1 4026397325331 1,90 kg 43cm x 10cm x 31cm
5 4026397326451 10,90 kg 54cm x 44,5cm x 34cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
13053501-Manual-43285-1.100-de_en.pdf (2 MB) 1.100 de_en
All images
Name Version Language
13053501-Images.zip
