150 W AES, 8 ohms, 97.5 dB, 63-3000 Hz

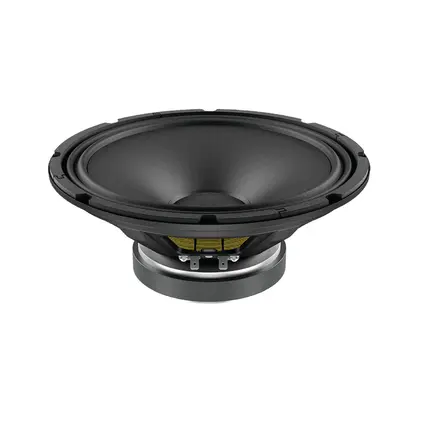

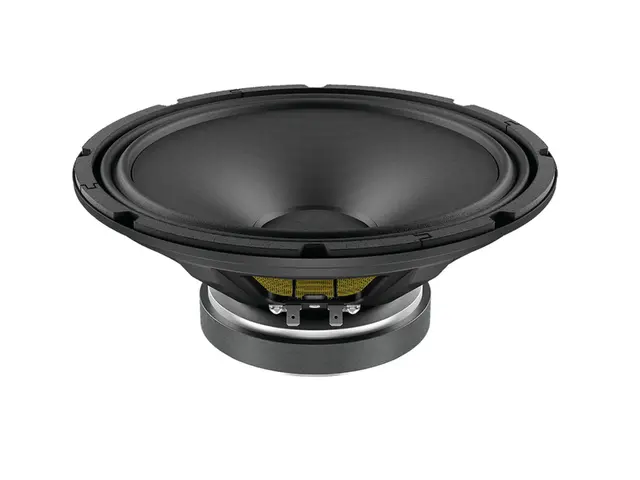

LAVOCE WSF101.82 10" Woofer Ferrite Magnet Steel Basket Driver

Name: LAVOCE WSF101.82 10" Woofer Ferrite Magnet Steel Basket Driver
Brand: LAVOCE

Stock for approx. 12 wk(s)

49,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Features

150 W AES, 8 ohms, 97.5 dB, 63-3000 Hz

Experienced Italian R&D team with outstanding technical know-how
Innovation-driven culture
Superb and elegant Italian mechanical & aesthetical design
Strictest standards and tools in testing and validation
Modern and efficient production system with a carefully balanced level of automation
Total Quality Management system
Efficient logistics
ISO 9001 certification

Technical specifications

Type:	25 cm woofer (10")
Rated power:	150 W AES
Program power:	300 W
Impedance:	8 ohms
Sensitivity:	97.5 dB
Voice coil diameter:	4.6 cm (1.8")
Chassis material:	Steel
Magnet material:	Ferrite
Weight:	2,90 kg
Frequency range:	65 - 3000 Hz
Impedance:	8 Ohm
Diameter:	(10") ca. 25 cm Basket diameter; (1.8") ca. 4.5 cm Moving coil

Packaging units

PU	EAN	Weight	Dimensions
1	4026397632514	3,45 kg	41cm x 31,5cm x 26,5cm
1	4026397635065	3,55 kg	30cm x 30cm x 14,8cm
4	4026397624502	12,25 kg	53cm x 31,5cm x 27cm
