40 W AES, 8 ohms, 90 dB, 90-6000 Hz

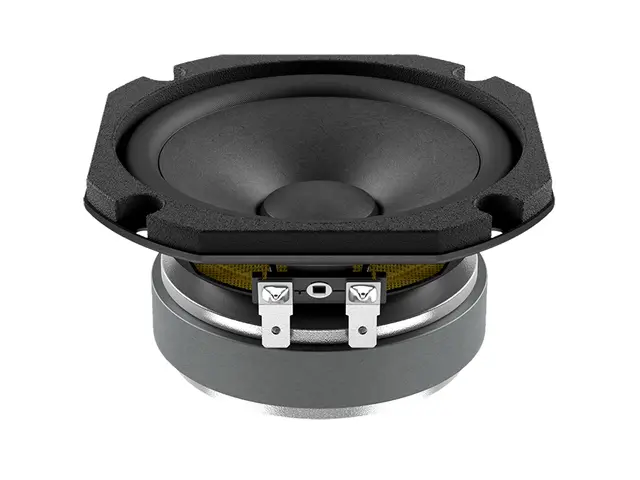

LAVOCE WSF041.00 4" Woofer Ferrite Magnet Steel Basket Driver

Name: LAVOCE WSF041.00 4" Woofer Ferrite Magnet Steel Basket Driver
Brand: LAVOCE

Stock for approx. 12 wk(s)

13,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Features

40 W AES, 8 ohms, 90 dB, 90-6000 Hz

Experienced Italian R&D team with outstanding technical know-how
Innovation-driven culture
Superb and elegant Italian mechanical & aesthetical design
Strictest standards and tools in testing and validation
Modern and efficient production system with a carefully balanced level of automation
Total Quality Management system
Efficient logistics
ISO 9001 certification

Technical specifications

Type:	10 cm woofer (4")
Rated power:	40 W AES
Program power:	80 W
Impedance:	8 ohms
Sensitivity:	90 dB
Voice coil diameter:	2.5 cm (1")
Chassis material:	Steel
Magnet material:	Ferrite
Weight:	0,73 kg
Frequency range:	90 - 6000 Hz
Impedance:	8 Ohm
Diameter:	Basket diameter; (1") approx. 2.54 cm Moving coil

Packaging units

PU	EAN	Weight	Dimensions
1	4026397634921	0,81 kg	13,5cm x 12cm x 6,5cm
1	4026397632323	1,08 kg	31cm x 21,5cm x 20,5cm
4	4026397624823	3,95 kg	35cm x 35cm x 17,5cm
18	4026397634938	9,79 kg	41,5cm x 37cm x 16cm
