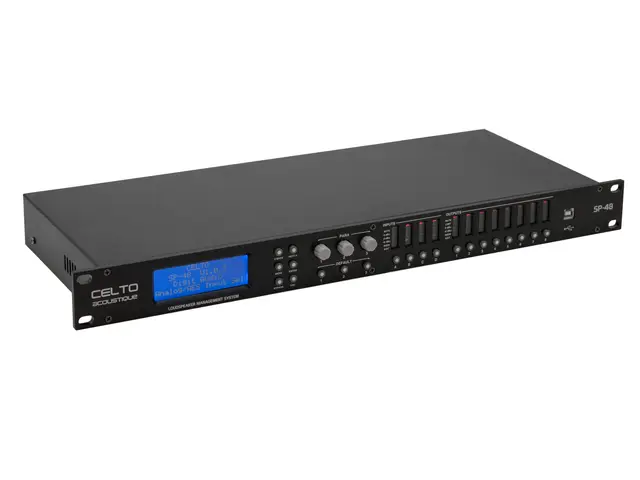

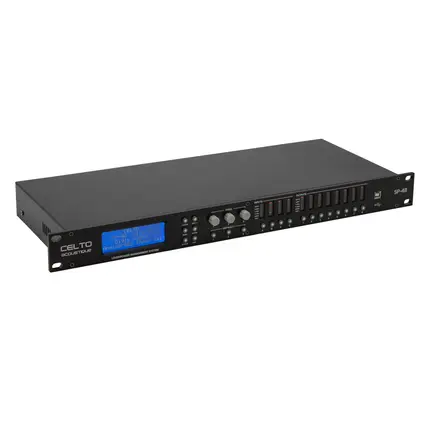

CELTO ACOUSTIQUE SP48 Digital Speaker Controller

svg
svg
svg
CELTO ACOUSTIQUE



CELTO ACOUSTIQUE SP48 Digital Speaker Controller

Stock for approx. 12 wk(s)
Priceon demand
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 11043814
Features
  • Digital signal processor
  • (19") 48.3 cm rack installation
  • For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

  • 1 x controller, 1 x power cord, 1 x uSB cable, 1 x network cable, 4 x feet, 1 x cD
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:Max. 35 W
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:20 - 20000 Hz
THD:<0,003 % at 1 kHz
Network connection:Protocol: Ethernet TCP/IP via
DSP:Digital signal processor
Crossover frequency:20-20000 Hz
Impedance:Input 40 kOhm
Output 60 Ohm
Gain:Input: -40 dB to +6 dB
Output: -40 dB to +15 dB
Filter:Linkwitz-Riley; Butterworth; Bessel; 12db/oct; 18db/oct; 24db/oct; 48db/Okt
Delay:0 - 1000 ms
Dynamic range:Input: 112 dB
Output: 118 dB
Sample rate:96 kHz
Connections:Input: line via 4 x 3-pin XLR
Output: line via 8 x 3-pin XLR
Max. level:Input: +18 dBu
Output: +20 dBu
USB port:Typ B
Housing design:(19") 48.3 cm rack installation
Dimensions:Width: 48,3 cm
Depth: 20 cm
Height: 4,4 cm
Weight:2,72 kg
Packaging units
PU EAN Weight Dimensions
1 4026397688238 3,20 kg 55cm x 30cm x 10cm
Support
Spare parts
No spare parts available.
