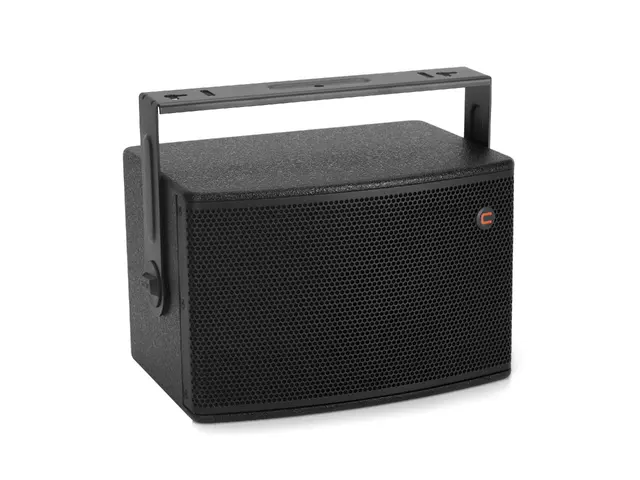

Big sound in small package, mounting bracket included
| Rated power: | 200 W RMS |
| Program power: | 400 W |
| Frequency range: | 52 - 22000 Hz |
| Sensitivity: | 92 dB (1W/1m) |
| Max. SPL: | 121 dB |
| Dispersion angle: | 80° Omnidirectional |
| Crossover frequency: | Passive |
| high-pass 2500 Hz, 12db/oct on LF | |
| low-pass 2500 Hz, 18db/oct on HF | |
| Recommended | |
| high-pass 30 Hz, 24db/oct in full-range mode | |
| high-pass 60-140 Hz with iFIX13S or iFIX17S subwoofer | |
| Impedance: | 8 Ohm |
| Color: | Black, Smooth textured coating, painted; any RAL color available on request |
| Attachment system: | Panning and tilting mounting bracket for ceiling or wall installation in most varying angles |
| Connections: | Input: Speakers via screw terminal |
| Speakers: | 1 x woofer (7.5") approx. 19 cm with Ferritmagnet |
| Voice coil lows (2") approx. 5 cm | |
| 1 x compression tweeter highs (0.75") approx. 1.91 cm | |
| Voice coil compression tweeter highs (1") approx 2,5 cm Diaphragmmaterial: Ketone-Polymer | |
| Material: | Birch multiplex, 15 mm, CNC made with tongue and grove assembly |
| Width: | 37 cm |
| Height: | 24.5 cm |
| Depth: | 26.8 cm |
| Weight: | 10.25 kg |
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397662573 | 12,00 kg | 33cm x 38cm x 49cm |
