PSSO Amp Set MK2 for Line-Array S

Name: PSSO Amp Set MK2 for Line-Array S
Brand: PSSO

PSSO Amp Set MK2 for Line-Array S

this item is not in stock.

2.249,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 11041068

Print product

Product badge

9 mm

1 U

2 U

10451684 PSSO DDA-1700 Amplifier

Stereo PA amplifiers with up to 3.5kW of power
The stereo PA amplifiers of the DDA series with integrated limiter have been specially designed for stage and the disco applications. The amplifiers may be used in stereo operation, parallel operation or in mono bridge operation. All models employ a Class D architecture. Thanks to their switch mode power supply unit, the weight of the amplifiers is considerably lower than that of amplifiers of comparable power equipped with a standard power supply unit which makes them particularly attractive for rental companies. The amplifiers and the speakers connected are protected through extensive protective circuits.

10451696 PSSO QCA-6400 4-Channel SMPS Amplifier

4-channel PA Amplifiers with Integrated SMPS
The 4-channel PA amplifiers of the QCA series offer ultra-high output power paired with a low weight and small overall height. The amplifiers use a patented second-generation Class I output circuitry which combines the high efficiency off Class D and the sound quality of Class A. Featuring a modern switch-mode power supply, the amplifiers provide up to 10 kW peak power and weigh less than 16 kg. This makes the series particularly attractive for mobile applications. The amplifiers can be used flexibly in stereo operation, parallel operation or in mono bridge operation. Extensive protective circuits will protect the amplifiers and the speakers connected.

Features

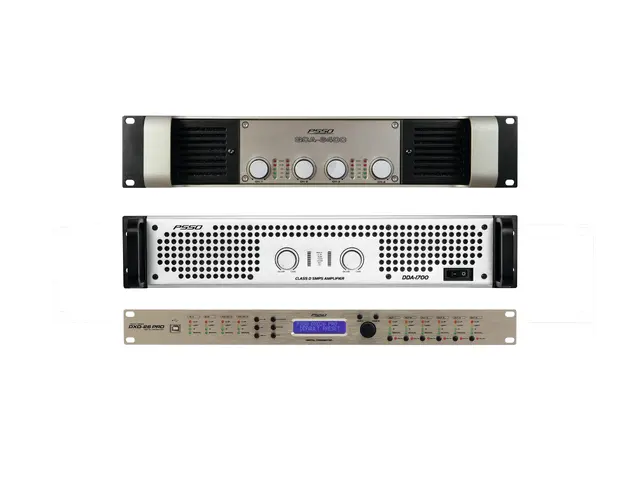

Set consisting of:
1x 10451684: PSSO DDA-1700 Amplifier
1x 10451696: PSSO QCA-6400 4-Channel SMPS Amplifier
1x 10356362: PSSO DXO-26 PRO Digital Controller
1x 30100150: OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U
1x 30109190: ROADINGER Rack Profi KM 6U 55cm with wheels

10451684 PSSO DDA-1700 Amplifier

Stereo PA amplifier with SMPS, 2 x 850 W / 4 ohms

Stereo PA amplifier with class D circuitry
Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
Limiter and speaker switch-on delay
3 operating modes can be selected (stereo, parallel or bridged)
2 calibrated level controls for precise level adjustment
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
Highly efficient front-to-rear air routing
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs and screw terminals
Rugged steel chassis with aluminum front panel
Rack installation with 2 units
Housing design: (19") 48,3 cm rack installation 2 U
Power connection: Mains input P-Con (Power-In) Power supply cord with safety plug (M) (provided)
Height unit: 2 U

10451696 PSSO QCA-6400 4-Channel SMPS Amplifier

PA amplifier with SMPS, 4 x 1600 W / 2 ohms, 4 x 1400 W / 4 ohms

4-channel PA amplifier with class I circuitry
4 x 1400 W/4 ohms
Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
Speaker switch-on delay
3 operating modes can be selected (stereo, parallel or bridged)
4 level controls for precise level adjustment
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals
Highly efficient front-to-rear air routing
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
Rack installation with 2 units
Neutrik Speakon outputs
Power connection: Fixed Power supply cord with safety plug (M)
Housing design: (19") 48,3 cm rack installation 2 U
Height unit: 2 U

10356362 PSSO DXO-26 PRO Digital Controller

Digital speaker management system with real-time network communication, 2 inputs and 6 outputs

Digital network speaker management system with 64-bit processing
Premium components ensure excellent sound-features
Flexible routing configurations for all standard mono and stereo output operating modes
2 analog inputs and 1digital AES/EBU interface (XLR)
6 analog outputs (XLR)
10-band parametric EQ per input and output
Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass
Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
The intelligent software for PC and Mac allows convenient control with a computer
Full configuration and real-time network communication via the built-in Ethernet interface
Up to 80 user presets storable in the device via software
Control of all functions also possible via the controls at the front panel
Alphanumeric LCD screen with 2 lines of 16 characters each
Input sensitivity digitally adjustable
Inputs and outputs with 4-digit VU meter
Mute switch with LED indicator per output
Up to 2000 ms signal delay adjustable for the inputs and outputs
Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
Switchable phase (180°)
Lock function for protecting the program settings
Rack installation, 1 U
Windows XP, Vista, 7, 8, 10 and Mac OS X 10.5.8 and better
Control your speaker systems more flexible than ever with the DXO Control app
DXO Control for iPad supports all functions of the PC software and is available for free from the app store
PC connect: DXO Software via USB; DXO Software via RJ45 (F) mounting version Firmware can be updated
DSP: Digital signal processor
Housing design: (19") 48,3 cm rack installation 1 U
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
Height unit: 1 U

30100150 OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U

U-front panel in different sizes

1 mm steel, black, powder-coated
Weight 465-1350 g (depending on the version)
Housing design: 1 U
Height unit: 1 U

30109190 ROADINGER Rack Profi KM 6U 55cm with wheels

PRO flightcase for 483 mm units (19")

Profile rails with mounting facility for 483 mm units (19"), e.g. light PA amplifiers, power packs, additional equipment
Stomped profile rails for cage nuts
2 removable covers (double-door version)
High-quality workmanship with 9 mm multiplex birch wood, dark brown laminated
Aluminum profile frames (30 mm) with rounded edges
Three-leg, medium-sized steel ball corners
2 x recessed case handles with mounting dish and backing ring
4 butterfly lock
4 wheels with 2 brakes
4 x chrome case handles
Available in different height units (1 U = 44 mm)
Made in Europe
Transport aid: With wheels

Technical specifications

10451684 PSSO DDA-1700 Amplifier
Power output (RMS):
Stereo, parallel at 4 ohms	2 x 850 W
Stereo, parallel at 8 ohms	2 x 500 W
8 ohms bridged	1 x 1700 W
Signal-to-Noise ratio:	>100 dB
Total harmonic distortion:	<0.15 %
Damping factor:	>500
Voltage gain:	38.2 dB
Slew rate:	>10 V/µsec
Input sensitivity:	0.775 V/1.0 V/1.81 V bzw. 39.3 dB/37 dB/32 dB, switchable
Input impedance:	20 kohms (balanced), 10 kohms (unbalanced)
Input connectors:	4 x XLR
Output connectors:	4 x Speaker, 4 x XLR feed-through output
Circuitry:	Class D
Protection:	Softstart, short-circuit, overheat, overload, clip limit, RF and VHF signals
Cooling:	2 temperature-controlled fans, front-to-rear
Controls:	Power switch, input attenuators, mode switch stereo/parallel/bridged, input sensitivity
LED indicators:	protect, clip, -5 dB, -10 dB, -20 dB (per channel)
Construction:	steel chassis, aluminum front
Dimensions:	483 x 307 x 89 mm
	Rack installation with 2 U
Weight:	6 kg
Power consumption:	150 W 1/8 power
Frequency range:	20 - 20000 Hz
Height:	8,9 cm
Depth:	30,7 cm
Width:	48,3 cm
Power/channel (4 Ohm):	850 W
Power connection:	Mains input P-Con (Power-In) Power supply cord with safety plug (M)
Power supply:	110-240 V AC, 50/60 Hz
10451696 PSSO QCA-6400 4-Channel SMPS Amplifier
Power output (RMS):
2 ohms	4 x 1600 W
4 ohms	4 x 1400 W
8 ohms	4 x 800 W
4 ohms bridged	2 x 3200 W
8 ohms bridged	2 x 2800 W
Signal-to-Noise ratio:	>80 dB
Total harmonic distortion:	<0.05 %
Damping factor:	>800
Slew rate:	>10 V/µsec
Crosstalk:	>65 dB
Input sensitivity:	0.775 V/1.0 V/1.4 V/38 dB/32 dB/26 dB, switchable
Voltage gain:	40.3 dB (0.775 V), 38 dB (1.0 V), 35.1 dB (1.4 V)
Input impedance:	20 kohms (balanced), 10 kohms (unbalanced)
Input connectors:	4 x XLR
Output connectors:	4 x Speaker, 4 x XLR feed-through output
Protection:	Overheat, overload, short-circuit, over-current, DC voltage, softstart, VHF signals
Cooling:	2 temperature-controlled fans, front-to-rear
Controls:	Power switch, input attenuators, mode switch stereo/parallel/bridged, input sensitivity
LED indicators:	Protect, clip, signal (per channel)
Construction:	Steel chassis, aluminum front panel
Dimensions:	483 x 445 x 89 mm
	Rack installation with 2 U
Power consumption:	820,00 W 1/8 power
Weight:	13,45 kg
Power/channel (8 Ohm):	800 W
Power/channel (4 Ohm):	1400 W
Frequency range:	20 - 20000 Hz
Height:	8,9 cm
Depth:	44,5 cm
Width:	48,3 cm
Power connection:	Fixed Power supply cord with safety plug (M)
Power supply:	230 V AC, 50 Hz
10356362 PSSO DXO-26 PRO Digital Controller
Analog inputs:	2 x XLR, balanced
Maximum input level:	+22 dBu
Input impedance:	10 kohms
Dynamic range:	118 dBA
Digital input:	1 x AES/EBU (XLR)
Input impedance:	110 ohms
Outputs:	6 x XLR, balanced
Output impedance:	50 ohms (electronically balanced)
Output gain range:	-50 to +12 dB
Maximum output level:	+12 dBu
Dynamic range:	118 dBA
Sampling frequency:	65 kHz
Distortion:	0.005 %
Filter types:	Bessel, Butterworth or Linkwitz-Riley
Slopes:	6, 12, 18 or 24 dB/octave
Crossover frequency:	20-20000 Hz
Delay:	0 to 2000 ms (inputs/outputs)
Communication:	LAN (TCP/IP), USB type B
Power consumption:	10,00 W
Weight:	2,5 kg
Frequency range:	10 - 40000 Hz
Height:	4,45 cm
Depth:	22,3 cm
Width:	48,3 cm
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply:	110-240 V AC, 50/60 Hz
30100150 OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U
Weight:	0,29 kg
Width:	48,3 cm
Height:	4,45 cm
30109190 ROADINGER Rack Profi KM 6U 55cm with wheels
Strength:	9 mm
Outside dimensions (W x D x H):	530 x 710 x 430 mm
Inside dimensions:
Mounting width:	483 mm (19")
Mounting height:	275 mm (6 U)
Mounting depth:	550 mm
Corner dimensions:	65 mm
Weight:	20,00 kg
Color:	Black laminated
Maximum load:	50 kg
Width:	53 cm
Mounting depth min.:	ca. 550 mm
Depth:	71 cm
Height:	43 cm
Material:	Birch multiplex 9 mm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397635539	46,90 kg	72cm x 62cm x 87cm
