PSSO PA Set PRO M

PSSO

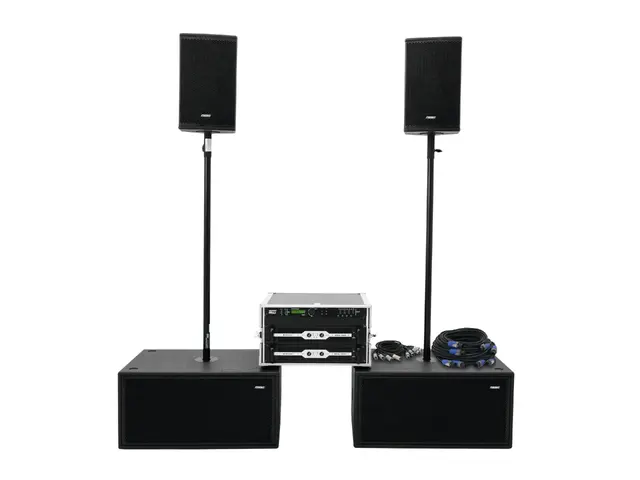

PSSO PA Set PRO M

Item no. 11041060

10451082 OMNITRONIC SMA-600 Amplifier

Weight Watcher!
Weight reduction, a wish certainly shared by many. Generally speaking, it's all about comfort. Whether it's packed luggage, cellular phones, cameras or even amplifiers. That's right, amplifiers, too. Whoever has installed a sound system before, can really appreciate light-weight devices as opposed to an aching back. Our recommendation: the new SMA-Amplifier Series from OMNITRONIC. By virtue of its switch-mode power supply technology, it saves an enormous amount of weight, comparing to many other amplifiers. If only three amplifiers are built into a rack, differences of 30kg or more can be achieved. A factor not to be underestimated, also when transporting. After all, payload weight equally needs to be considered. But not only due to its weight, the SMA-Series also convinces due to its functions as well as its power for mid-sized and larger applications.
Just give it a try, its worth it!

10451086 OMNITRONIC SMA-1500 Amplifier

Weight Watcher!
Weight reduction, a wish certainly shared by many. Generally speaking, it's all about comfort. Whether it's packed luggage, cellular phones, cameras or even amplifiers. That's right, amplifiers, too. Whoever has installed a sound system before, can really appreciate light-weight devices as opposed to an aching back. Our recommendation: the new SMA-Amplifier Series from OMNITRONIC. By virtue of its switch-mode power supply technology, it saves an enormous amount of weight, comparing to many other amplifiers. If only three amplifiers are built into a rack, differences of 30kg or more can be achieved. A factor not to be underestimated, also when transporting. After all, payload weight equally needs to be considered. But not only due to its weight, the SMA-Series also convinces due to its functions as well as its power for mid-sized and larger applications.
Just give it a try, its worth it!
Features

11041098 PSSO K-208 2-Way Top 200W

Pro PA speaker with 8" woofer, 1" horn and 200 W RMS, 8 ohms

  • Rugged full-range top speaker, qualified for suspension and touring applications
  • Housing made of 15 mm birch plywood
  • 20 cm (8") bass speaker with diecast aluminum basket
  • Rotatable 25 mm constant directivity horn tweeter (1", 44 mm voice coil)
  • Premium custom-made drivers by European manufacturer CELTO Acoustique
  • Passive 2-way crossover
  • Bassreflex system
  • Parallel Neutrik Speakon connectors
  • M10 thread for Omnimount wall brackets
  • Adapter for stand installation available as accessory (SPA-10L)
  • Trapezoidal multi-functional housing with scratch-resistant lacquer surface
  • Impact-resistant steel grille with acoustic foam
  • Applications: standing, as monitor, on a subwoofer or speaker stand, suspended

11041130 PSSO K-122 Subwoofer 800W

Pro PA bassreflex sub, 2 x 12" woofer, 800 W RMS, 4 ohms

  • Rugged pro bassreflex subwoofer, qualified for touring applications
  • Housing made of birch plywood
  • 2 x 30 cm (12") bass speaker with steel sheet basket
  • Premium custom-made drivers by European manufacturer CELTO Acoustique
  • Parallel Neutrik Speakon connectors
  • Metal flange for top speakers
  • Carrying handles and rubber feet
  • Scratch-resistant lacquer surface
  • Impact-resistant steel grille with acoustic foam

10451082 OMNITRONIC SMA-600 Amplifier

Stereo PA amplifier with integrated limiter and SMPS 2 x 300 W/4ohms

  • Low weight and height due to integrated switch-mode power supply
  • Temperature-controlled fan, particularly quiet during operation
  • Limiter and speaker switch-on delay
  • Switchable bass-boost at 80 Hz with 6 dB level increase
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • Selectable input sensitivity
  • 2 level controls
  • 3 LEDs for each channel for activated protective circuit (protect) overload (clip) and signal
  • 2 LEDs for parallel and bridge operation
  • Complete protection set against short-circuit, overheat, DC voltage and VHF signals
  • Electronically balanced inputs via XLR mounting jacks, with feed-through output (stereo RCA/6.3 mm jack)
  • Speaker outputs via lockable Speaker plugs
  • Class AB circuitry
  • Robust steel chassis
  • Rack installation with 2 units

10451086 OMNITRONIC SMA-1500 Amplifier

Stereo PA amplifier with integrated limiter and SMPS 2 x 750 W/4 ohms

  • Low weight and height due to integrated switch-mode power supply
  • Temperature-controlled fan, particularly quiet during operation
  • Limiter and speaker switch-on delay
  • Switchable bass-boost at 80 Hz with 6 dB level increase
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • Selectable input sensitivity
  • 2 level controls
  • 3 LEDs for each channel for activated protective circuit (protect) overload (clip) and signal
  • 2 LEDs for parallel and bridge operation
  • Complete protection set against short-circuit, overheat, DC voltage and VHF signals
  • Electronically balanced inputs via XLR mounting jacks, with feed-through output (stereo RCA/6.3 mm jack)
  • Speaker outputs via lockable Speaker plugs
  • SMA-1500 and SMA-2000 with additional pairs of screw terminals for 8 ohms bridge operation
  • Class 2 H circuitry
  • Robust steel chassis
  • Rack installation with 2 units

10356321 OMNITRONIC DXO-24E Digital Controller

Digital stereo active crossover with 2 inputs and 4 outputs, incl. software

  • Flexible routing configurations for all standard mono and stereo output operating modes
  • 2 analog inputs and 4 analog outputs (XLR)
  • Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
  • Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
  • Up to 30 user presets storable in the device via software
  • Alphanumeric LCD screen with 2 lines of 16 characters each
  • Input sensitivity digitally adjustable
  • Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
  • Mute switch with LED indicator per output
  • 7-band parametric EQ per output
  • Up to 7 ms signal delay adjustable for the outputs
  • Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
  • Switchable phase
  • Lock function for protecting the program settings
  • Rack installation, 1 U
  • Windows XP, Vista, 7 and Mac OS X 10.5.8 and better

60004554 OMNITRONIC Distance Tube Subwoofer/Satellite 120cm

Distance tube

  • Connecting tube for satellite systems
  • For stand inserts with standard diameter (35 mm)
  • Powder-coated steel version
  • Available in different sizes
  • Color: black

30109786 ROADINGER Amplifier Rack PR-2, 6U, 47cm deep

Flightcase for 483 mm units (19")

  • Profile rails with 6 U mounting facility for 483 mm units (19"), e.g. PA amplifiers, power packs, additional equipment
  • Front and rear rack rails
  • 2 removable covers (double-door version)
  • Max. depth 420 mm (plus 90 mm per cover)
  • High-quality workmanship with plywood multilayered glued, black laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Three-leg, medium-sized steel ball corners
  • 4 high-quality butterfly locks (w/o locking function)
  • 2 wooden slide rails on the bottom
  • 2 hinged, chrome case handles
  • Delivery includes mounting screws
  • Available in different height units (1 U = 44 mm)
  • Height unit: 6 HE

3022790C PSSO Speaker cable Speakon 2x1.5 5m bk

High-quality speaker cable

  • With Neutrik plugs from Liechtenstein
  • Cable from German production
  • 2 pole speaker cable
  • With Neutrik Speakon cable plugs
  • Cable cross-section: 1.5 mm²
  • Cable length: 5 m
  • Cable diameter: 7 mm
  • Weight: 0.5 kg
  • Made in Germany

30227840 PSSO XLR cable 3pin 1m bk Neutrik

Dependable microphone cable

  • High quality connection for microphones etc.
  • High conductivity
  • Slim and short construction
  • Made in Germany

30100150 OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U

U-front panel in different sizes

  • 1 mm steel, black, powder-coated
  • Weight 465-1350 g (depending on the version)
  • Height unit: 1 HE

59007073 EUROLITE SPA-10L Adapter

For 36 mm tube with large mounting plate, max. load WLL 100 kg

  • Adapter for installing a spot light on a stand with 35 mm telescopic tube
  • M10 wing bolt
Technical specifications

11041098 PSSO K-208 2-Way Top 200W

Rated power:200 W RMS
Components:20 cm woofer (8"), 2.5 cm horn (1")
Connection: 2 x Speakon
Sensitivity:95 dB
Maximum SPL:124 dB
Frequency range:57-20000 Hz
Crossover frequency:1.8 kHz
Dispersion angle:90° x 60°
Dimensions (H x W x D):270 x 445 x 270 mm
Impedance:8 Ohm
Weight:12 kg
Size of woofer:20 cm (8")
Number of bass-woofer:1 Stück

11041130 PSSO K-122 Subwoofer 800W

Rated power:800 W RMS
Components:2 x 30 cm woofer (2 x 12")
Connection: 2 x Speakon
Sensitivity:97 dB
Maximum SPL:132 dB
Frequency range:37-1500 Hz
Dimensions (H x W x D):370 x 750 x 500 mm
Impedance:4 Ohm
Weight:36 kg
Size of woofer:30 cm (12")
Number of bass-woofer:2 Stück

10451082 OMNITRONIC SMA-600 Amplifier

Power supply:230 V AC, 50 Hz
Power output sine:
stereo 4 ohms2 x 324 W
stereo 8 ohms2 x 231 W
8 ohms bridged1 x 600 W
Frequency range:20-20000 Hz, ±0.5 dB
Damping factor:>150
Distortion factor:0.05 %
Slew rate:>20 V/µsec
S/N ratio:>90 dB
Channel seperation:>65 dB/ 1 kHz
Input sensitivity:26 dB/32 dB (2.2 V/1.05 V), switchable
Voltage gain:26 dB/32 dB
Input impedance:20 kohms (balanced), 10 kohms (unbalanced)
Input connectors:stereo XLR
Output connectors:stereo Speaker, feed-through output (stereo RCA, stereo 6.3 mm jack)
Circuitry:class AB
Control elements:power switch, level control per channel, mode switch (stereo/parallel/bridged), sensitivity selector, peak filter selector
LED indicators:parallel, bridge (globally), protect, clip, signal (per channel)
Protection circuits:short-circuit, overheat, DC voltage, VHF signals, softstart
Construction:steel chassis
Dimensions (DxWxH):340 x 483 x 92 mm (19", 2 U)
Weight:6 kg
Power consumption:421.00 W
Power/channel (8 Ohm):231
Power/channel (4 Ohm):324

10451086 OMNITRONIC SMA-1500 Amplifier

Power supply:230 V AC, 50 Hz
Power output sine:
stereo 4 ohms2 x 743 W
stereo 8 ohms2 x 480 W
8 ohms bridged1 x 1500 W
Frequency range:20-20000 Hz, ±0.5 dB
Damping factor:>150
Distortion factor:0.05 %
Slew rate:>20 V/µsec
S/N ratio:>90 dB
Channel seperation:>70 dB/ 1 kHz
Input sensitivity:26 dB/32 dB (3.1 V/1.55 V), switchable
Voltage gain:26 dB/32 dB
Input impedance:20 kohms (balanced), 10 kohms (unbalanced)
Input connectors:stereo XLR
Output connectors:stereo Speaker, 2 pairs of screw terminals, feed-through output (stereo RCA, stereo 6.3 mm jack)
Circuitry:class 2 H
Control elements:power switch, level control per channel, mode switch (stereo/parallel/bridged), sensitivity selector, peak filter selector
LED indicators:parallel, bridge (globally), protect, clip, signal (per channel)
Protection circuits:short-circuit, overheat, DC voltage, VHF signals, softstart
Construction:steel chassis
Dimensions (DxWxH):390 x 483 x 92 mm (19", 2 U)
Weight:9 kg
Power consumption:522.00 W
Power/channel (8 Ohm):480
Power/channel (4 Ohm):743

10356321 OMNITRONIC DXO-24E Digital Controller

Power supply:100-240 V AC, 50/60 Hz
via power unit included in the delivery
Inputs:2 x XLR, balanced
Maximum input level:+22 dBu
Input impedance:10 kohms
Dynamic range:114 dBA
Outputs:4 x XLR, balanced
Output impedance:50 ohms (electronically balanced)
Output gain range:-50 to +12 dB
Maximum output level:+9 dBu
Dynamic range:110 dBA
Sampling frequency:67 kHz
Frequency range:10-30000 Hz
Distortion:0.005 %
Filter types:Bessel, Butterworth or Linkwitz-Riley
Slopes:6, 12, 18 or 24 dB/octave
Crossover frequency:20-20000 Hz
Delay:0-5 msec
Communication:USB type B
Dimensions (WxHxD):482 x 44 x 128 mm
Weight:3 kg

60004554 OMNITRONIC Distance Tube Subwoofer/Satellite 120cm

Maximum load:35 kg
Height:120 cm
Weight:1 kg
Max. Height:1.2 m
Maximum carrying capacity:35 kg

30109786 ROADINGER Amplifier Rack PR-2, 6U, 47cm deep

Strength:7 mm
Outside dimensions (W x D x H):545 x 640 x 320 mm
Inside dimensions:
Mounting width:483 mm (19")
Mounting height:270 mm (6 U)
Mounting depth:470 mm (90 mm per cover)
Exterior corner dimensions:64 mm
Weight:11.5 kg
Mounting depth:ca. 420 mm
Color:Black
Maximum load:50 kg

3022790C PSSO Speaker cable Speakon 2x1.5 5m bk

Color:Black
Plug A:1 x 2-pole Speakon (M)
Plug B:1 x 2-pole Speakon (M)

30227840 PSSO XLR cable 3pin 1m bk Neutrik

Color:Black
Plug A:1 x 3-pole XLR (M)
Plug B:1 x 3-pole XLR (F)

30100150 OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U

Weight:0.465 kg

59007073 EUROLITE SPA-10L Adapter

Maximum load WLL (4-fold):100 kg
Maximum load BGV C1 (8-fold):50 kg
Receiver:D = 36.5 mm
Receiver:L = 120 mm
Strength:1 mm
Mounting plate:D = 120 mm
Mounting plate:Thickness 3 mm
Thread:M10 x 50 mm
Dimensions (L x W x H):120 x 120 x 170 mm
Weight:0.5 kg
Packaging units
PU EAN Weight Dimensions
1 4026397568615
Support
Spare parts
Loading spareparts. Please wait...
Downloads
All images
Name Version Language
11041060.zip
Please wait while the page is loading...
We use cookies to ensure you get the best user experience on our website. By continuing, you accept the cookie use
I accept
