Compact line array for permanent installations and touring purposes
PSSO CLA Basic System MK2 L complete

svg
svg
PSSO

Compact line array for permanent installations and touring purposes

PSSO CLA Basic System MK2 L complete

Item no. 11041058

11040915 PSSO CLA-118 LINE ARRAY Floor Subwoofer

Versatile and powerful bass,
with a perfect setup for the tops.

11040910 PSSO CLA-115 LINE ARRAY Subwoofer

Powerful bass,
perfectly corresponding to the tops. The bolting inside provides additional reinforcement. The U-Turn-Rigging-System alleviates the installation. All you have to do is to simply turn down the connectors and secure them with quicklock pins.
Features

Compact line array for permanent installations and touring purposes

  • Large basis set suitable for large open airs
  • Time saving 2-man installation directly from the transport case
  • Low weight of the whole construction and reduced demands for the flying points
  • Tight locking pins eliminating vibration noise
  • Flying hardware regularly tested by an independent and accredited testing institute
  • The set includes four CLA-115 bass reflex subwoofers, four CLA-118 floor subwoofers and sixteen CLA-228 MKII tops as well as two matching flying brackets

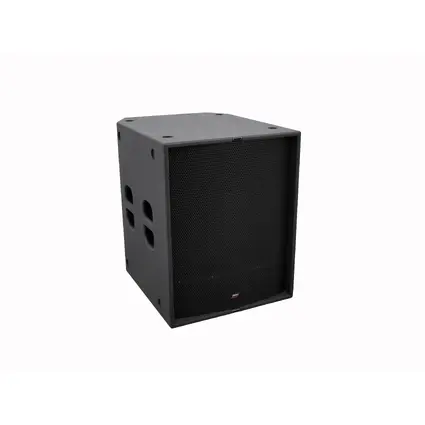

11040915 PSSO CLA-118 LINE ARRAY Floor Subwoofer

Bassreflex subwoofer, 18" woofer, 800 W RMS, 8 ohms

  • Bass support for the line array for permanent installations and touring purposes
  • Powerful bassreflex subwoofer
  • 45 cm woofer (18") with 115 mm voice coil with aluminum chassis
  • Housing made of several layer 18 mm birch plywood
  • Extremely rugged surface finish
  • Integrated locking-system for optional wheel boards
  • 8 rubber feet with fitting sinkings
  • Transport aid: Wheelboard optional

11040910 PSSO CLA-115 LINE ARRAY Subwoofer

Subwoofer, 15" woofer, 500 W RMS, 8 ohms, can be flown

  • Compact line array for permanent installations and touring purposes
  • Powerful bassreflex subwoofer
  • 38 cm woofer (15") with 100 mm voice coil with aluminum chassis
  • Housing made of several layer 15 mm birch plywood
  • Extremely rugged surface finish
  • No disturbing steel parts due to U-Turn Rigging System
  • Easy rigging with captive quick release pins
  • Tight locking pins eliminating vibration noise
  • Flying hardware regularly tested by an independent and accredited testing institute
  • Integrated locking-system for optional wheel boards
  • 4 rubber feet with fitting sinkings on the top
  • Transport aid: Wheelboard optional

11040950 PSSO Flying Bracket CLA-228/CLA-115

Flying bracket for PSSO Line Array systems CLA-228 and CLA-115

  • Flying hardware regularly tested by an independent and accredited testing institute
  • LGA tested

11040901 PSSO CLA-228 MK2 LINE ARRAY Top

Top speaker, 2 x 8" woofer, 1,73" driver, MF: 300 W RMS, HF: 60 W RMS

  • Improved MKII version with BEYMA drivers
  • Compact line array for permanent installations and touring purposes
  • Time saving 2-man installation directly from the transport case
  • Lightweight housing due to high-quality plastic
  • Low weight of the whole construction and reduced demands for the flying points
  • Elegant housing design for avoiding resonance and standing waves
  • Two powerful 20 cm low/mid neodymium magnets (2 x 8")
  • 4.4 cm neodymium driver (1.73") with titanium diaphragm
  • Specially designed waveguide
  • Maximum efficiency due to biamped control
  • Wide horizontal dispersion angle of 100°
  • Curving adjustable between 0° and 12°
  • Easy rigging with captive quick release pins
  • Tight locking pins eliminating vibration noise
  • Flying hardware regularly tested by an independent and accredited testing institute
Technical specifications
Frequency range:42 - 200 Hz
Weight:53 kg
Top
Width:67 cm
Height:28,5 cm
Depth:28,5 cm
Bass
Width:67 cm
Height:68 cm
Depth:48 cm
CLA-115:
Rated power:500 W RMS
Program power:1000 W
Components:38 cm woofer (15")
Connection: 2 Speaker sockets (4-pin)
Sensitivity:98 dB
Maximum SPL:125 dB
Impedance:8 ohms
Dimensions (H x W x D):480 x 670 x 680 mm
CLA-118:
Rated power:800 W RMS
Program power:1600 W
Components:45 cm woofer (18")
Connection: 2 Speaker sockets (4-pin)
Sensitivity:97 dB
Maximum SPL:126 dB
Impedance:8 ohms
Dimensions (H x W x D):740 x 580 x 730 mm
Weight:56 kg
CLA-228MKII:
MF rated power:300 W RMS
HF rated power:60 W RMS
MF program power:600 W
HF program power:120 W
Components:2 x 20 cm woofer (2 x 8"), 4.4 cm driver (1.73")
Connection: 2 Speakon sockets (4-pin)
MF sensitivity:96 dB
HF sensitivity:104 dB
MF maximum SPL:123 dB
HF maximum SPL:124 dB
Impedance:MF 16 ohms / HF 16 ohms
Crossover frequency:1.8 kHz
Dispersion angle:H=100°, V=3°
Dimensions (H x W x D):285 x 670 x 285 mm
Weight:18 kg
Flying bracket:
Maximum load BGV C1 (8-fold):400 kg
Maximum load BGV C1 (10-fold):320 kg
Maximum load BGV C1 (12-fold):260 kg
Dimensions (L x W x H):680 x 632 x 62 mm
Weight:17 kg
11040915 PSSO CLA-118 LINE ARRAY Floor Subwoofer
output:max. 1600 W
Rated power:800 W RMS
Program power:1600 W
Woofer:(18") approx 46 cm
Number of woofers:1 pc/pcs
Frequency range:38 - 200 Hz
Sensitivity:97 dB (1W/1m)
Max. SPL:126 dB
Impedance:8 Ohm
Connections:2 x Speaker
Width:58 cm
Height:74 cm
Depth:73 cm
Weight:58,45 kg
Components:45 cm woofer (18")
11040910 PSSO CLA-115 LINE ARRAY Subwoofer
output:max. 1000 W
Rated power:500 W RMS
Program power:1000 W
Woofer:(15") approx 38 cm
Number of woofers:1 pc/pcs
Frequency range:42 - 200 Hz
Sensitivity:98 dB (1W/1m)
Max. SPL:125 dB
Impedance:8 Ohm
Connections:2 x Speaker
Width:66,8 cm
Height:48 cm
Depth:68 cm
Weight:49,85 kg
Components:38 cm woofer (15")
11040950 PSSO Flying Bracket CLA-228/CLA-115
Max. load WLL (4fold):800 kg
Width:63,2 cm
Height:6,2 cm
Depth:68 cm
Weight:16,80 kg
11040901 PSSO CLA-228 MK2 LINE ARRAY Top
Frequency range:68 - 20000 Hz
Sensitivity:HF 104 dB; MF 96 dB
Crossover frequency:1800 Hz
Impedance:4/8 ohms biamp
Width:67 cm
Height:28,5 cm
Depth:28,5 cm
Weight:19,15 kg
MF rated power:300 W RMS
HF rated power:60 W RMS
MF program power:600 W
HF program power:120 W
Components:2 x 20 cm woofer (2 x 8"), 4.4 cm driver (1.73")
Connection: 2 Speakon sockets (4-pin)
MF maximum SPL:123 dB
HF maximum SPL:124 dB
Impedance:MF 16 ohms / HF 8 ohms
Dispersion angle:H=100°, V=3°
Packaging units
PU EAN Weight Dimensions
1 4026397568592
