Compact speaker array

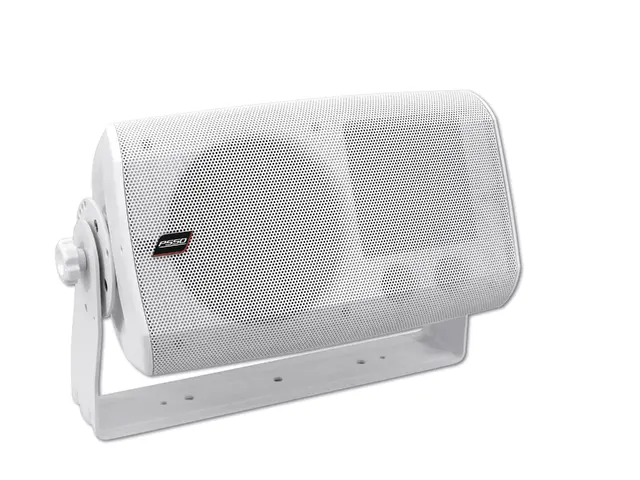

PSSO CSK-218W top, white

PSSO

Compact speaker array

PSSO CSK-218W top, white

Item no. 11040807

The CSK high-mid speaker units,
this series brings even finer resolution of the high frequency range and an amazing level stability. The distinguishing feature compared to the CSA series are the tweeters. CSK speakers are not equipped with a single horn tweeter but, depending on the number of woofers, with one or two 2.5 cm dome tweeters. This tweeter makes an even wider dispersion angle possible. The CSK-218 with one woofer and one tweeter has a dispersion angle of 120° x 120°, whereas the version with two woofers and two tweeters offers 120° x 60°.


Where should the CSK be used?
We can recommend permanent installation in bars, lounges or clubs - exactly where great importance is placed on low levels and precise sound quality. But as it is quite versatile, the CSK should not be reduced to our suggestion only.
Features
  • Compact speaker array for permanent installations and touring purposes
  • Mounting bracket for permanent installation included in the delivery
  • Speaker flange for mobile use can be ordered separately
  • Lightweight housing due to high-quality special plastic
  • Dome tweeters
  • Wide horizontal dispersion angle
Technical specifications
Rated power:100 W RMS
Program power:200 W
Components:20 cm woofer (8"), 2.5 cm tweeter (1")
Connection: 2-pin terminal
Sensitivity:90 dB
Maximum SPL:110 dB
Impedance:8 ohms
Frequency range:65-16000 Hz
Crossover frequency:3.3 kHz
Dispersion angle:H=120°, V=120°
Dimensions (H x W x D):250 x 465 x 340 mm
Weight:8 kg
Packaging units
PU EAN Weight Dimensions
1 4026397362893 9,85 kg 56cm x 36,5cm x 42,5cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00042854.pdf 1.00 de/en
Illustration
Press report
Name Version Language
00054269.pdf 0.00 de
00054270.pdf 0.00 en
00057330.pdf 0.00 de
00057333.pdf 0.00 en
All images
Name Version Language
11040807.zip
