Compact speaker array
PSSO CSA-228W top, white

PSSO

Compact speaker array

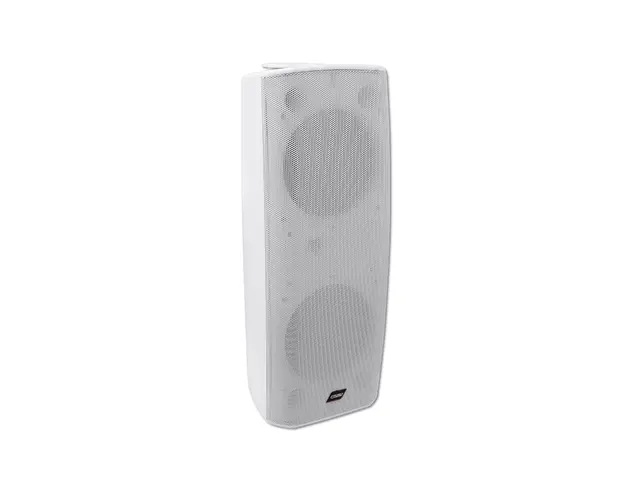

PSSO CSA-228W top, white

Item no. 11040801

The CSA high-mid speaker units,
they are very powerful and feature a horn tweeter with 3.5 cm driver and, depending on the model, one or two 20 cm woofers (CSA-218 or CSA-228 respectively). The tweeter of the smaller version, the CSA-218, ensures a horizontal and vertical dispersion angle of 90°. Thus the CSA-218 can be used standing or lying without having to make compromises in terms of sound or directivity. The larger version, the CSA-228, is designed for upright use and has a dispersion angle of 90° x 40°.


Where should the CSA be used?
We can recommend mobile use. Concerts or weddings are supported in a powerful, resonant and linear way. But as it is quite versatile, the CSA should not be reduced to our suggestion only.
Features
  • Compact speaker array for permanent installations and touring purposes
  • Horn tweeter for powerful highs
  • Lightweight housing due to high-quality plastic
  • Wide horizontal dispersion angle
Technical specifications
Rated power:300 W RMS
Program power:600 W
Components:2 x 20 cm woofer (2 x 8"), 3.4 cm driver (1.33")
Connection: 2 Speaker sockets (4-pin)
Sensitivity:95 dB
Maximum SPL:119 dB
Impedance:8 ohms
Crossover frequency:2.5 kHz
Dispersion angle:H=90°, V=40°
Dimensions (H x W x D):250 x 665 x 340 mm
Weight:15 kg
Frequency range:75 - 18000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397362831 16,75 kg 75cm x 42cm x 38cm
