Powerful bassreflex subwoofer

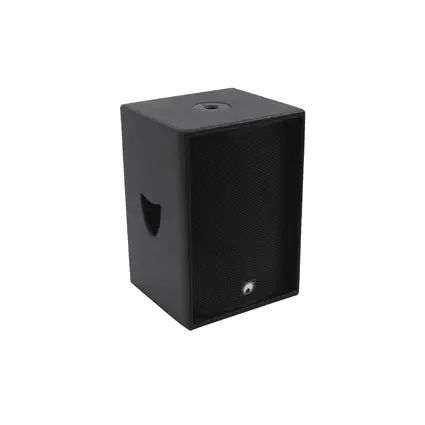

OMNITRONIC PAS-121 Subwoofer

OMNITRONIC

Powerful bassreflex subwoofer

OMNITRONIC PAS-121 Subwoofer

Item no. 11039620

Pretty thing that makes your heart swing!
Small, pretty and powerful. These are the demands made on most of the technical devices nowadays. Concerning mobile phones or digital cameras this is obvious, but also many showtechnic products run this path. For subwoofers for example it often proves advantageous, when their dimensions are manageable and their sound is unmistakable. With its high sound-pressure, its snug design and its compact appearance, our PAS-121 meets all the requirements. Very interesting for bars, that sometimes have space problems and desperately look for a place where to install the loudspeakers, because the horizontal bassreflex subwoofer can easily be put beneath a bench. Et voilà, the problem is solved.
Features

Powerful bassreflex subwoofer

  • Cubic housing
  • Powerful, dry bass via voluminous housing with bass-reflex-system
  • For a combination with the PAS-tops
  • High sound-pressure
  • Very high durability
  • Housing made of several layer, 18-mm birch plywood
  • Scratch-resistant lacquer surface
  • Impact-resistant steel grille with acoustic foam
  • With flange for top speaker installation
  • Very large amplification systems can be realized via several PAS-speaker-systems and the respective power amplifiers
  • Ideal as PA-system or amplification system for medium-sized and large discotheques
Technical specifications
output:max. 700 W
Rated power:350 W RMS
Program power:700 W
Woofer:(12") approx 30 cm
Number of woofers:1 pc/pcs
Sensitivity:96 dB (1W/1m)
Connections:2 x Speaker
Width:39,8 cm
Height:36,4 cm
Depth:57,1 cm
Weight:21,45 kg
Components:30 cm woofer (12")
Connection: 2 Speaker sockets
Sensitivity:96 dB
Maximum SPL:126 dB
Frequency range:48-120 Hz, ±3 dB
Dimensions (H x W x D):398 x 571 x 364 mm
Packaging units
PU EAN Weight Dimensions
1 4026397288445 23,35 kg 42cm x 39cm x 61cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
11039620-Manual-63754-2.300-de_en.pdf (4 MB) 2.300 de_en
All images
Name Version Language
11039620-Images.zip
