High quality bandpass/hybrid subwoofer
OMNITRONIC PAS-15 Subwoofer

OMNITRONIC

High quality bandpass/hybrid subwoofer

OMNITRONIC PAS-15 Subwoofer

Item no. 11039610

Features

High quality bandpass/hybrid subwoofer

  • Powerful 2-chamber bandpass subwoofer
  • Cubic housing
  • For a combination with the PAS tops
  • High sound-pressure
  • Very high durability
  • Housing made of several layer, 18 mm birch plywood
  • Scratch-resistant lacquer surface
  • Impact-resistant steel grille with acoustic foam
  • Can be used lying or standing
  • With two flanges for top speaker installation
  • Suitable castors optional
  • Very large amplification systems can be realized via several PAS-speaker-systems and the respective power amplifiers
  • Ideal as PA system or amplification system for medium-sized and large discotheques
Technical specifications
Frequency range:38 - 400 Hz
Width:48,5 cm
Height:53 cm
Depth:74 cm
Weight:39,50 kg
Rated power:600 W RMS
Program power:1200 W
Components:38 cm woofer (15")
Connection: 2 Speaker sockets
Sensitivity:96 dB
Maximum SPL:124 dB
Impedance:8 ohms
Dimensions (H x W x D):485 x 740 x 530 mm
Packaging units
PU EAN Weight Dimensions
1 4026397162592 44,00 kg 56cm x 51cm x 78cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
11039610-Manual-63754-2.300-de_en.pdf (4 MB) 2.300 de_en
Illustration
Data sheet
Name Version Language
11039610-Datasheet-6340-1.100-de_en.pdf (172 KB) 1.100 de_en

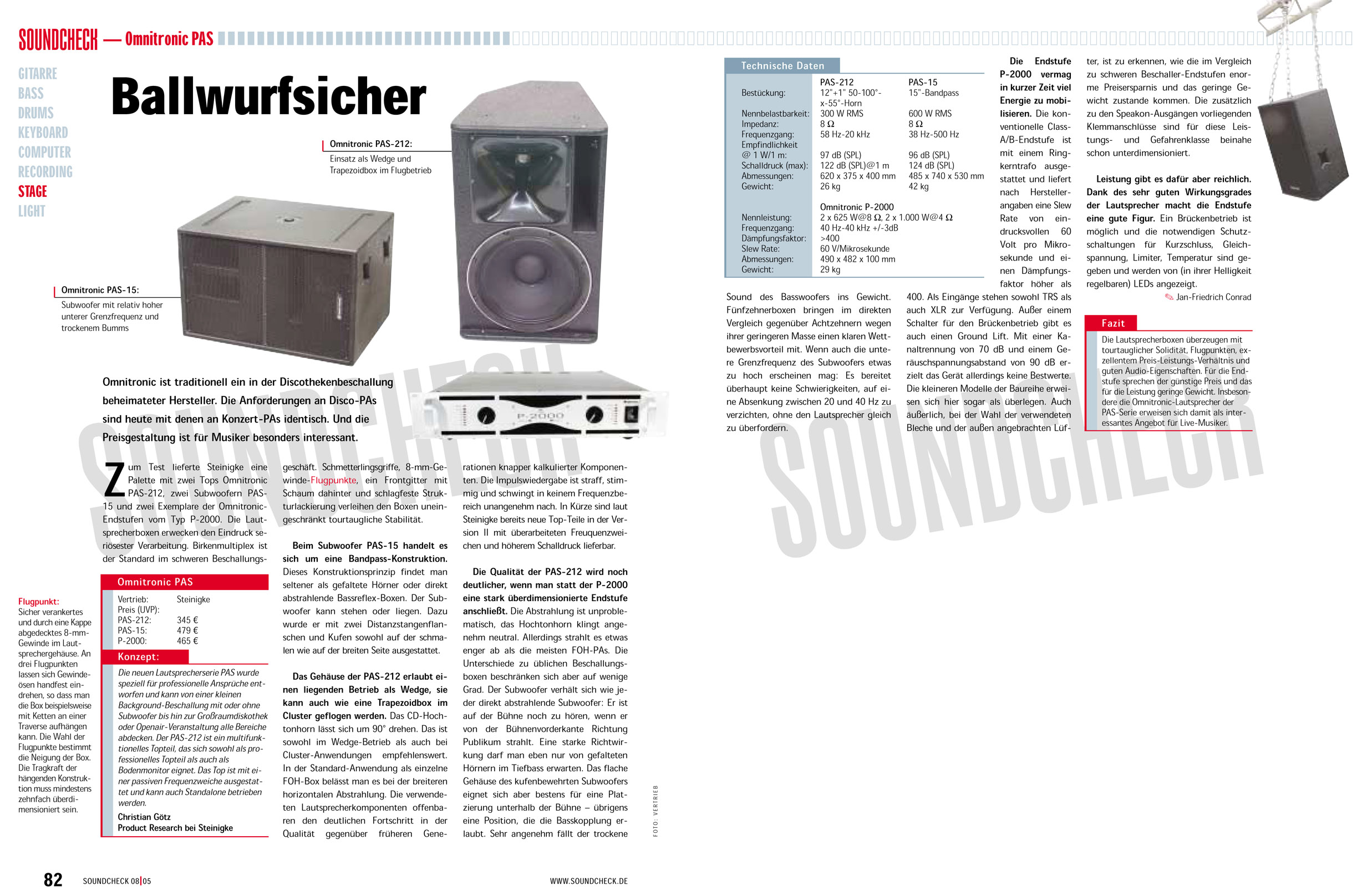

Press report
Service document
Name Version Language
11039610-Service-6254-1.000-de_en.pdf (172 KB) 1.000 de_en
All images
Name Version Language
11039610-Images.zip
