Active 2-way PA speaker system with DSP

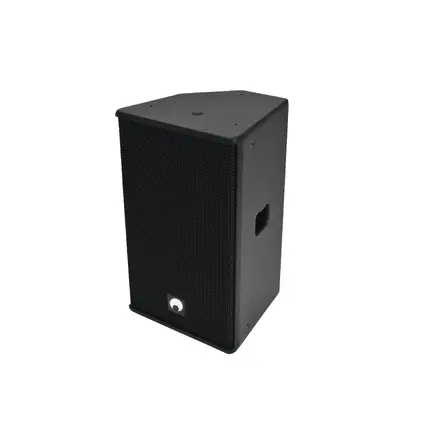

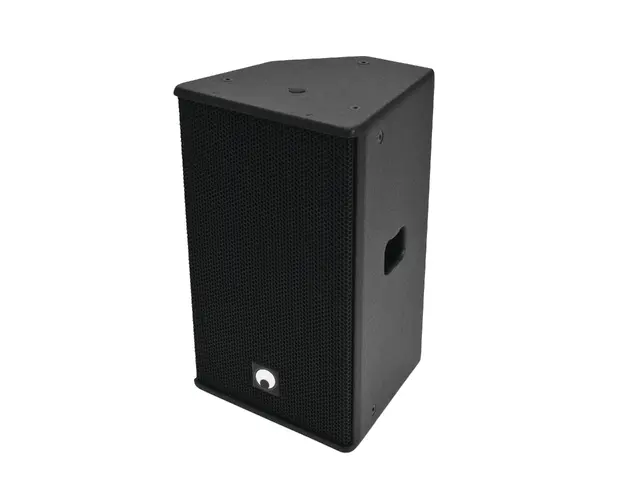

OMNITRONIC PAS-212PRO-A 2-Way Top, active, DSP

OMNITRONIC

Active 2-way PA speaker system with DSP

OMNITRONIC PAS-212PRO-A 2-Way Top, active, DSP

Stock for approx. 3 wk(s)
399,00
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 11039445

Features
  • Active 2-way speaker system for touring applications and permanent installations
  • Class D circuitry with switch-mode power supply and 800 watts peak power
  • DSP with 5 EQ presets and status display window
  • Rugged full-range top speaker qualified for suspended installation and flange for stand installation
  • Rotatable constant directivity horn (asymmetrical) with coil driver
  • 30 cm woofer in bassreflex cabinet provides powerful, dry bass
  • Power, signal and limiter indication
  • Adjustable line input, (XLR/6.3 mm jack and RCA)
  • Adjustable microphone input (XLR/6.3 mm jack), switchable to line
  • Line output (XLR) for linking further active speaker systems
  • Optimized for combination with PAS subwoofers
  • Impact-resistant steel grille with acoustic foam
  • Trapezoidal, multilayered glued plywood housing with monitor shape
  • Can be used lying, standing, on a subwoofer, on a speaker stand or stand or suspended
  • Suitable for car transport
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Rated power:400 W RMS
Program power:800 W
Components:30 cm woofer (12"), 3.6 cm horn (1.4")
Input:
Line:Combination XLR/6.3 mm jack, RCA L/R
Mic:Combination XLR/6.3 mm jack
Output:
Line:XLR
Sensitivity:97 dB
Maximum SPL:124 dB
Crossover frequency:2 kHz
Dispersion angle:50-100° x 55°
Dimensions (H x W x D):600 x 355 x 330 mm
Impedance:8 Ohm
Weight:17 kg
Power consumption:110 W
Size of woofer:30 cm (12")
Number of bass-woofer:1 Stück
Frequency range:55 - 20000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397531275 19,15 kg 45cm x 42cm x 68cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00087716.pdf 1.00 de/en
Catalog pages
Name Version Language
00097792.pdf 25.00 de
00097892.pdf 25.00 en
All images
Name Version Language
11039445.zip
Publications
City Sounds Flyer E 032017
Auf Seite: 34
Größe: 17 MB
