2-way multi-function speaker-system
OMNITRONIC PAS-212 MK2 2-way top

OMNITRONIC

2-way multi-function speaker-system

OMNITRONIC PAS-212 MK2 2-way top

Item no. 11039424

PAS-series
Our upper class speakers in wooden cabinets. And although the PAS-series is of top-quality workmanship, features a steel chassis, an unbalanced, rotatable horn with heavy-duty coil driver, and a bassreflex system it comes at a very favorable price. Moreover, it has a torsion-resistant aluminum chassis and is made of light-weight, yet solid multiplex wood.

The series abbrevations MK1 and MK2 determine the different crossovers, which have been optimized throughout the years. Every version can be modified into another version by installing a replacement crossover.

PAS-speakers can be used in many ways (lying, standing, flying, on distance tubes, in clusters). A completion to the series are the subwoofers which are powerful and persuasive.

Particularly worth mentioning are the four different wall-mounting systems (tiltable and swivelable, rotatable, tiltable on distance tubes, adjustable against walls) which allow for an unbelievably variety of applications.
Features
  • Rugged full-range top speaker in a stable wooden housing
  • Trapezoidal multi-functional housing with monitor shape
  • Qualified for suspended installation
  • Rotatable constant directivity horn (asymmetrical) with coil-driver
  • With passive 2-way crossover
  • Powerful, dry bass via voluminous housing with bass-reflex system
  • For applications requiring enhanced bass punch, we recommend a combination with the PAS-subwoofers
  • Balanced frequency range with high sound-pressure
  • Very high durability
  • Housing made of several layer, 18-mm birch plywood
  • Scratch-resistant lacquer surface
  • Impact-resistant steel grille with acoustic foam
  • Can be used lying, standing, on a subwoofer, on a speaker-stand or stand or suspended
  • With flange for speaker-stand installation etc.
  • Compact speaker-system for car transport
  • Very large amplification systems can be realized via several PAS speaker-systems and the respective power amplifiers
  • Ideal as PA system or amplification system for medium-sized and large discotheques
Technical specifications
Rated power:300 W RMS
Program power:600 W
Components:30 cm woofer (12"), 2.5 cm horn (1")
Connection: 2 Speaker sockets
Sensitivity:98 dB
Maximum SPL:125 dB
Impedance:8 ohms
Dispersion angle:50-100° x 55°
Dimensions (H x W x D):620 x 375 x 400 mm
Weight:25 kg
Frequency range:58 - 20000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397162578 23,70 kg 41,5cm x 41cm x 67cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00038314.pdf 1.40 de/en
Illustration
Name Version Language
00006290.jpg 0.00 de/en/fr/es
00006480.jpg 0.00 de/en/fr/es
00009615.pdf 0.00 de
Ring bolt M10/50mm
00037866.pdf
0.00 de
Catalog pages
Name Version Language
00067069.pdf 21.00 de
00067828.pdf 21.00 en
00086989.pdf 23.00 de
00087567.pdf 23.00 en
Data sheet
Name Version Language
00014498.pdf 1.20 de/en

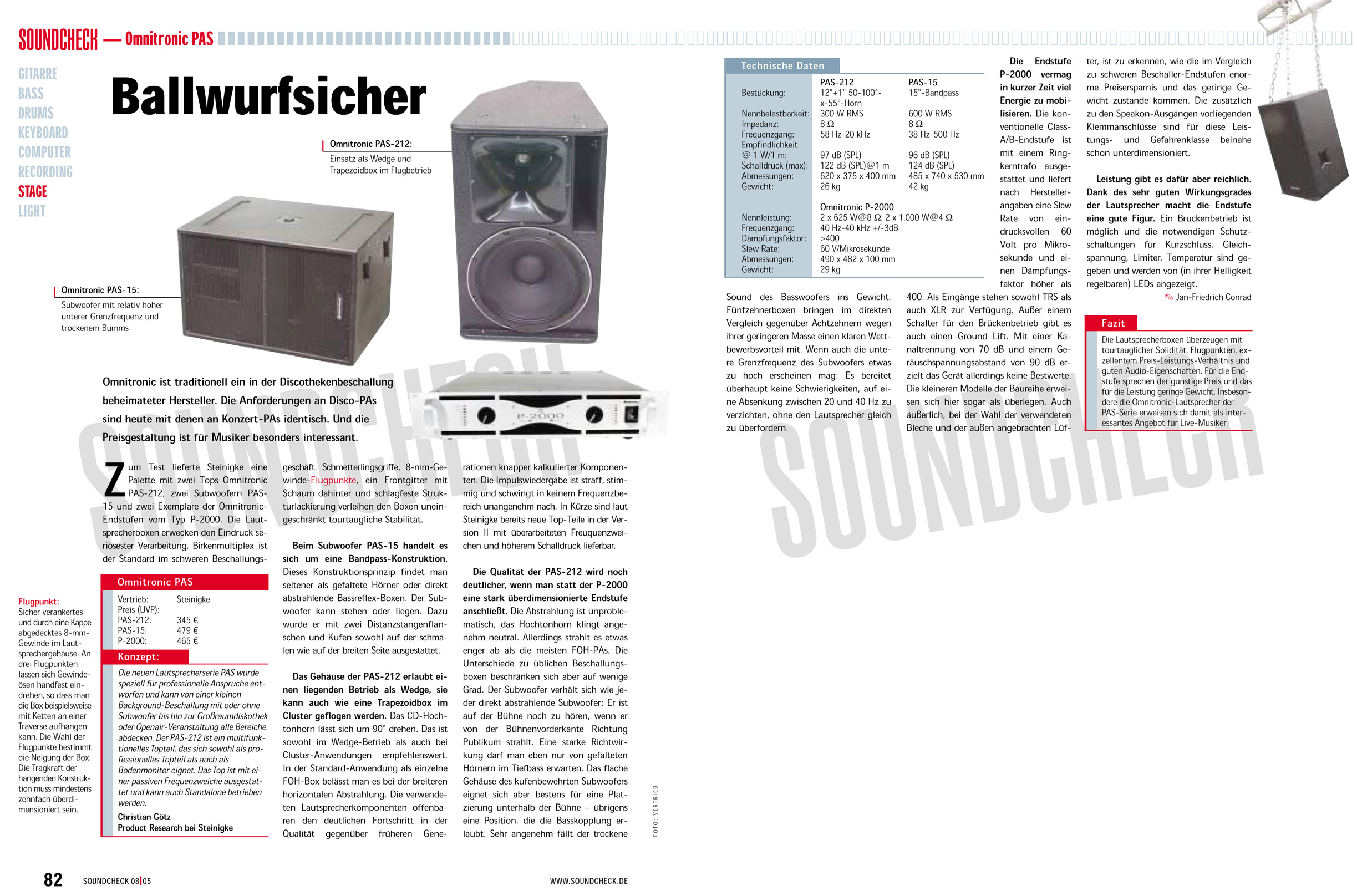

Press report
