2-way multi-function speaker-system
OMNITRONIC PAS-228 2-way top

OMNITRONIC

2-way multi-function speaker-system

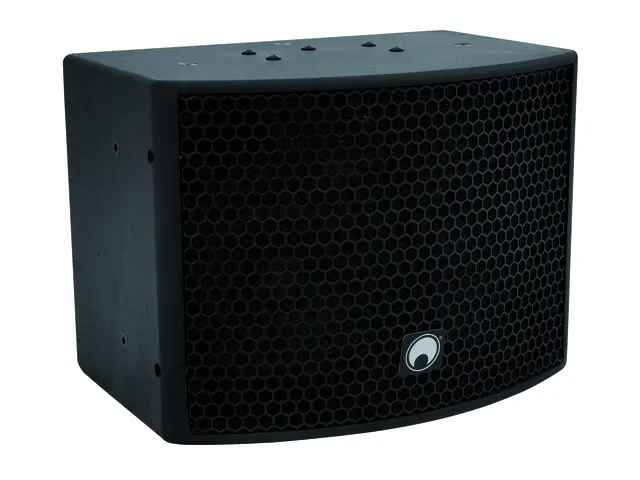

OMNITRONIC PAS-228 2-way top

Item no. 11039421

PAS-series
Our upper class speakers in wooden cabinets. And although the PAS-series is of top-quality workmanship, features a steel chassis, an unbalanced, rotatable horn with heavy-duty coil driver, and a bassreflex system it comes at a very favorable price. Moreover, it has a torsion-resistant aluminum chassis and is made of light-weight, yet solid multiplex wood.

The series abbrevations MK1, MK2 and MK3 determine the different crossovers, which have been optimized throughout the years. Every version can be modified into another version by installing a replacement crossover.

PAS-speakers can be used in many ways (lying, standing, flying, on distance tubes, in clusters). A completion to the series are the subwoofers which are powerful and persuasive.

Particularly worth mentioning are the four different wall-mounting systems (tiltable and swivelable, rotatable, tiltable on distance tubes, adjustable against walls) which allow for an unbelievably variety of applications.
Features
  • 2 x 20 cm woofer and 2 x 8 cm cone tweeter (2 x 3")
  • Designed for restaurants or bars where the background music should not be too dominant
  • Rugged full-range top speaker in a stable wooden housing
  • Trapezoidal housing shape for easy clustering
  • Qualified for suspended installation
  • With passive 2-way crossover
  • For applications requiring enhanced bass punch, we recommend a combination with the PAS subwoofers
  • Balanced frequency range with high sound-pressure
  • Housing made of several layer, 18-mm birch plywood
  • Scratch-resistant lacquer surface
  • Impact-resistant steel grille with acoustic foam
  • Can be used standing, on a subwoofer, on a speaker-stand or stand or suspended
  • With flange for speaker-stand installation etc.
  • Compact speaker-system for car transport
  • Ideal as PA system or amplification system for small and medium-sized discotheques
Technical specifications
Rated power:180 W RMS
Program power:360 W
Components:2 x 20 cm woofer (2 x 8"), 2 x 8 cm tweeter (2 x 3")
Connection: 2 Speaker sockets
Sensitivity:93 dB
Maximum SPL:115 dB
Impedance:4 ohms
Dimensions (H x W x D):355 x 490 x 340 mm
Weight:14 kg
Frequency range:67 - 18000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397326703 16,00 kg 36cm x 35cm x 50cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
Warnhinweis
Additional information00038177.pdf
1.40 de/en
00038314.pdf 1.40 de/en
Illustration
Catalog pages
Name Version Language
00067070.pdf 21.00 de
00067829.pdf 21.00 en
00086989.pdf 23.00 de
00087567.pdf 23.00 en
All images
Name Version Language
11039421.zip
