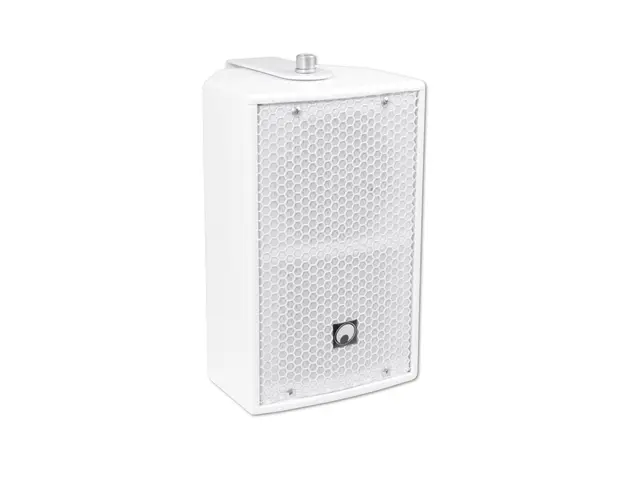

Speaker with mount, 4" woofer, 1" dome tweeter, 30 W RMS
OMNITRONIC LI-204W MK2 2-Way Top

The article is no longer in our assortment.

Check out the alternatives:

No. 11038985

Features

Speaker with mount, 4" woofer, 1" dome tweeter, 30 W RMS

Dedicated full-range bassreflex system for fixed installation
10 cm (4") bass speaker and 25 mm (1") horn tweeter
Attractive trapezoidal cabinet made of 8/12 mm plywood
Scratch-resistant lacquer surface in black or white

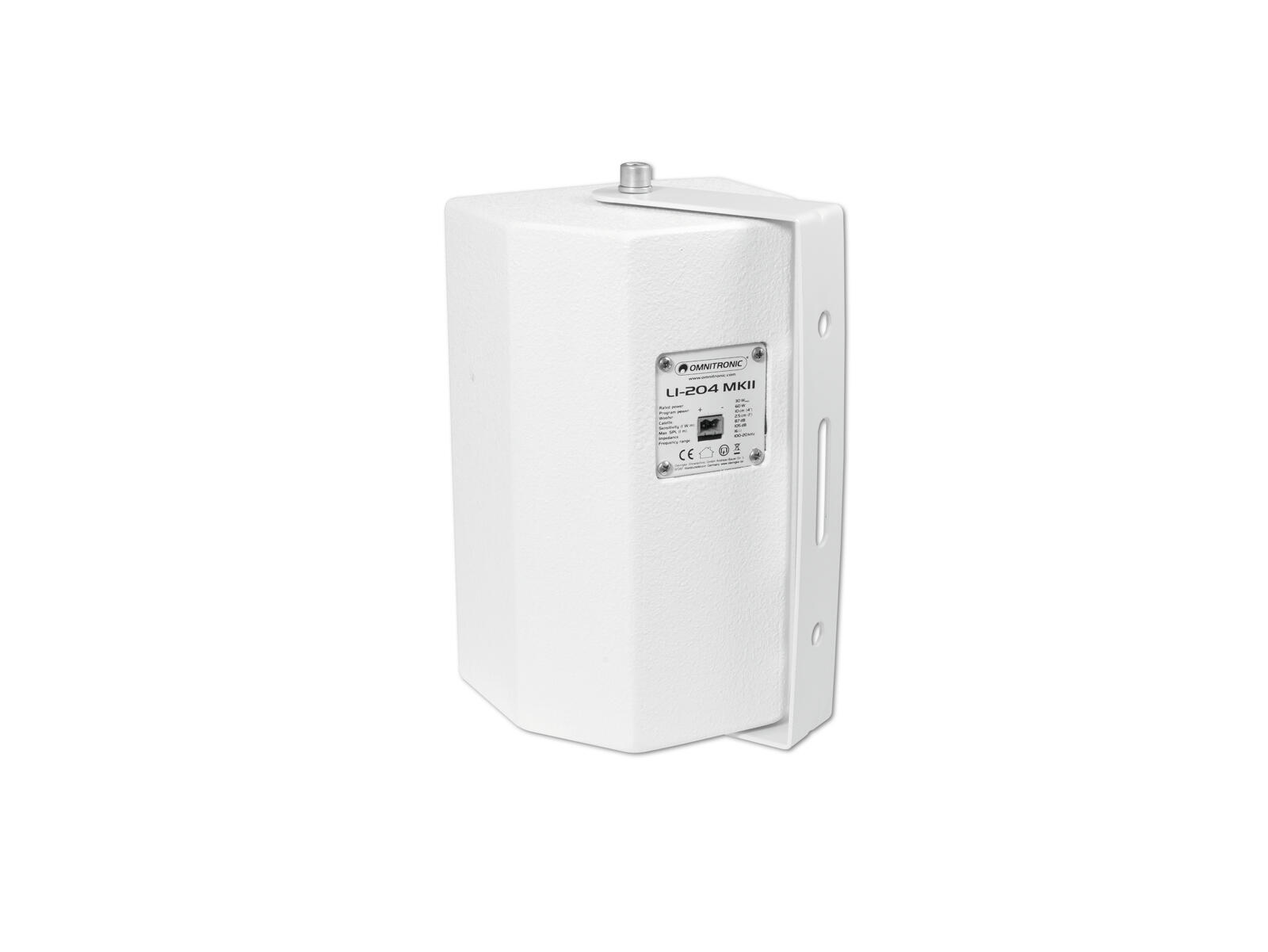

Supplied with movable mounting bracket for ceiling or wall installation
Impact-resistant steel grille with acoustic foam
2 x M10 thread inserts
For PA applications in restaurants, bars, discos and shops
With panning and tilting mounting bracket for ceiling or wall installation in most varying angles

Technical specifications

Power:	Program: 60W Rated: 30W RMS
Frequency range:	100 - 20000 Hz
Sensitivity:	87 dB
Max. SPL:	105 dB
Dispersion angle:	120° x 120°
Attachment system:	Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
Connections:	Speaker via screw plug-in terminal
Crossover frequency:	3500 Hz
Speaker:	1 x woofer 4" 1 x dome tweeter 1"
Type of speaker:	On ceiling/on wall speaker
Color:	White
Dimensions:	Width: 15.2 cm Depth: 13.6 cm Height: 24.5 cm
Weight:	3.10 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397493924	3,25 kg	16,5cm x 15cm x 27cm
6	4026397505382	20,00 kg	47cm x 36cm x 30,5cm
