Speaker with mount,, 6.5" full-range speaker and 1" horn tweeter, 50 W RMS

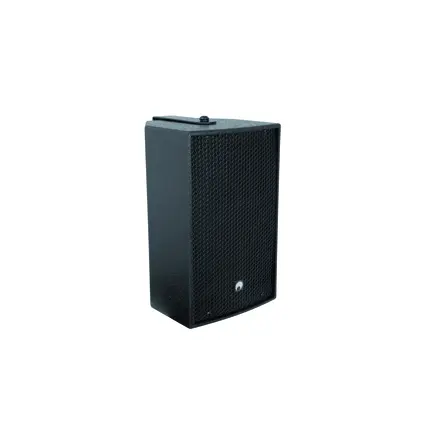

OMNITRONIC LI-206B MK2 2-Way Top

Name: OMNITRONIC LI-206B MK2 2-Way Top
Brand: OMNITRONIC

Stock for approx. 12 wk(s)

74,90 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Features

Speaker with mount,, 6.5" full-range speaker and 1" horn tweeter, 50 W RMS

Dedicated full-range bassreflex system for fixed installation
16.5 cm (6.5") bass speaker and 25 mm (1") horn tweeter, with PTC tweeter protection
Attractive trapezoidal cabinet made of 8/12 mm plywood
Scratch-resistant lacquer surface in black or white
Supplied with movable mounting bracket for ceiling or wall installation
Impact-resistant steel grille with acoustic foam
2 x M10 thread inserts
For PA applications in restaurants, bars, discos and shops

Technical specifications

Components:	16.5 cm woofer (6.5"), 2.5 cm calotte (1")
Connection:	2-pole plug-in screw terminal
Sensitivity:	89 dB
Maximum SPL:	109 dB
Crossover frequency:	2200 kHz
Dispersion angle:	120°
Dimensions (H x W x D):	320 x 200 x 200 mm
Weight:	4,7 kg
Program power:	100 W
Rated power:	50 W RMS
Color:	Black
Size of woofer:	(6,5") ca. 17 cm
Frequency range:	80 - 20000 Hz
Height:	32 cm
Depth:	20 cm
Width:	20 cm
Attachment:	Panning and tilting mounting bracket for ceiling or wall installation in most varying angles

Packaging units

PU	EAN	Weight	Dimensions
1	4026397493931	5,00 kg	21cm x 21cm x 35cm
4	4026397505375	21,10 kg	45cm x 45cm x 38cm
6	4026397499933
