Active 2-way speaker-system

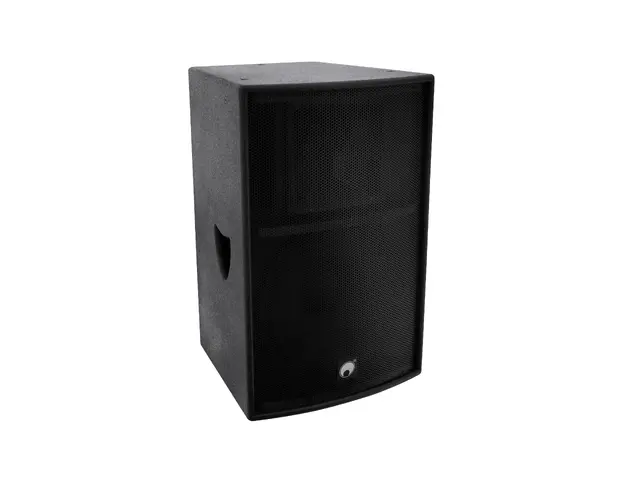

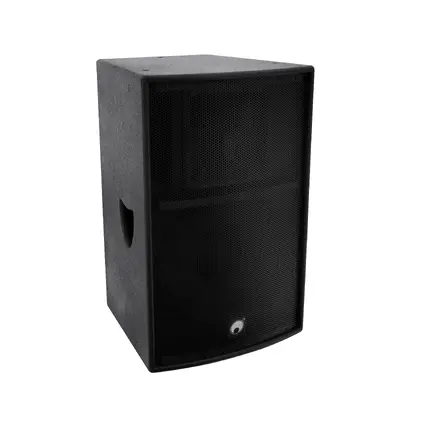

OMNITRONIC AZ-215A, 2-way top, 200W

OMNITRONIC

Active 2-way speaker-system

OMNITRONIC AZ-215A, 2-way top, 200W

Item no. 11038975

AZ series
Our upper class speakers in wooden cabinets. And although the AZ series is of top-quality workmanship, features a steel chassis, an unbalanced, rotatable horn with heavy-duty coil driver (except for the AZ-208), and a bassreflex system it comes at a very favorable price. AZ speakers can be used in many ways (lying, standing, flying, on distance tubes, in clusters) and are available in a fancy white. A completion to the series are the subwoofers which are powerful and persuasive.

Sounds to good to be true!
Music is kind of a gift. It touches our feelings, inspires and helps processing emotions. Still, if an untalented hobby singer turns an amazing melody into a nasty version of squeal tones, the gift soon turns into an instrument of torture. Similar can happen if speakers of a stereo system break down, produce scratches or are failing to transfer parts of frequencies. Surely a bad performer is worse, still you can tell the difference between good sounding speakers and really good sounding ones. If you put your trust into our OMNITRONIC AZ series you will experience what we are talking about. Because this full range top pieces are shining with a well balanced and exceptional sound and enable the music to flow freely. Herebythey are hugely resilient, solid, and convince with a cheeky generous price. Don't miss out on that.
Features
  • Rugged full-range top speaker in a stable wooden housing
  • Balanced signal input (XLR/6.3 mm jack combination)
  • Balanced parallel line output (XLR)
  • 2-way tone control and master level control
  • Microphone input (6.3 mm jack) with level control
  • Protective circuit and three indicators: protect, singal/limit, power
  • Rotatable horn with coil driver for balanced sound
  • Passive 2-way high-power crossover
  • Bi-amped for cristal clear playback
  • Powerful, dry bass via voluminous housing with bass-reflex system
  • For applications requiring enhanced bass punch, we recommend a combination with a subwoofer
  • Balanced frequency range with high sound-pressure
  • Very high durability
  • Trapezoidal housing shape for easy clustering
  • Qualified for suspended installation
  • Scratch-resistant lacquer surface
  • Impact-resistant steel grille
  • Can be used lying, standing, on a subwoofer, on a speaker stand or stand or suspended
  • Very large amplification systems can be realized via several AZ speaker-systems and the respective power amplifiers
  • Ideal as PA system or amplification system for small and medium-sized discotheques
Technical specifications
Power supply:230 V AC, 50 Hz
Fuse:T 3.15 A, 250 V
Rated power:200 W RMS
Program power:400 W
Components:38 cm woofer (15"), 2.5 cm horn (1")
Sensitivity:97 dB
Amplifier:
Nominal power output:200 W RMS
Maximum power output:400 W
Inputs:XLR or balanced 6.3 mm jack
Outputs:
1 Line OutXLR
Dimensions (H x W x D):690 x 470 x 445 mm
Weight:28 kg
Power consumption:350.00 W
Frequency range:60 - 18000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397343762 30,35 kg 51cm x 51cm x 76cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00038394.pdf 1.00 de/en
Illustration
Name Version Language
Product design00038391.pdf 0.00 de
Ring bolt M8/30mm
00041911.pdf
0.00 de
Catalog pages
Name Version Language
00067074.pdf 21.00 de
00067833.pdf 21.00 en
