Extremely compact 5 W waistband amplifier

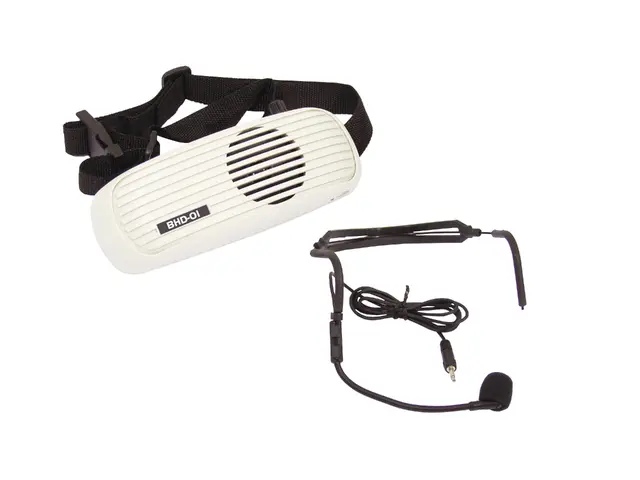

OMNITRONIC BHD-01 Waist band amplifier

OMNITRONIC

Extremely compact 5 W waistband amplifier

OMNITRONIC BHD-01 Waist band amplifier

Item no. 11038881

Features

Extremely compact 5 W waistband amplifier

  • Waistband amplifier with active speaker and headset microphone
  • Designed as girdle bag with adjustable snap-in strap
  • A full success as ideal PA-system for professional promotion events "on the road" or for hobby promotion shows
  • Ideal for all mains independent and wireless applications like seminars, conferences, presentations, tradeshows, fashion shows, solo entertainers, weddings, sales booths, aerobics etc.
  • For voice amplification with up to 50 listeners
  • With mic input and volume control
  • Power supply via 6 optional mignon batteries (type AA) or rechargeable batteries
  • Built-in battery charger
  • Optional power unit for charging the rechargeable batteries
  • Do not connect the optional power unit when using standard batteries (e.g. alkaline)!
Technical specifications
Power consumption:3,00 W
Frequency range:100 - 10000 Hz
Width:20 cm
Height:5 cm
Depth:8 cm
Weight:0,51 kg
Waistband amplifier + active speaker:
Power supply:9 V DC
via power unit:9 V DC, 300 mA
via batteries:6 x 1.5 V Mignon (AA)
Nominal power output:3 W RMS
Maximum power output:5 W
Distortion:5 %
S/N-ratio:50 dB
Operating time:
Mains operation:unlimited
Battery operation:6-8 hours
Recharging time:7-10 hours
Dimensions:200 x 80 x 50 mm
Headset microphone:
Type:Uni-directional electret headset microphone
Directivity pattern:Cardioid directivity pattern
Sensitivity:-70 dB (±3 dB)
Impedance:200 ohms
Operation voltage:1.5 V - 10 V
Current consumption:approx. 0.5 mA
Cable-length:approx. 1 m
Connection:via 3.5 mm jack plug (1/8")
Dimensions:220 x 140 x 140 mm
Packaging units
PU EAN Weight Dimensions
1 4026397231632 0,63 kg 27cm x 14,5cm x 7cm
20 4026397305012 13,40 kg 61,5cm x 29cm x 37cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
11038881-Manual-14065-1.000-de_en.pdf (824 KB) 1.000 de_en
