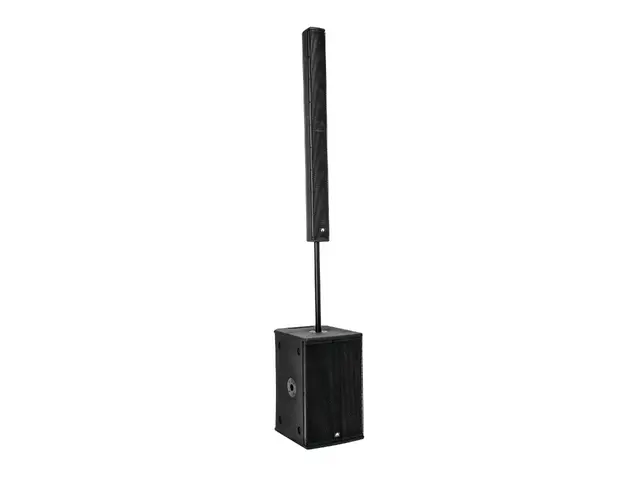

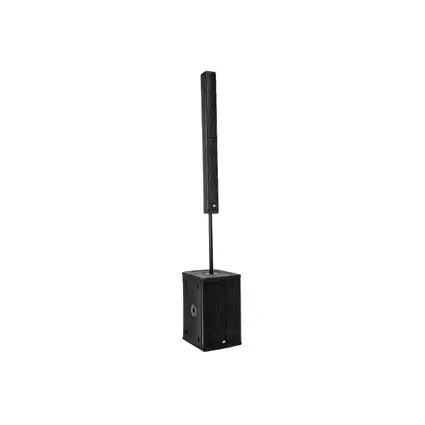

Powerful mobile column PA system, 600 watts RMS
OMNITRONIC ASS-1023 Active system

OMNITRONIC

Powerful mobile column PA system, 600 watts RMS

OMNITRONIC ASS-1023 Active system

Item no. 11038852

Features
  • Mobile column PA system with top speaker and active subwoofer with class D circuitry
  • Ultra-compact, extremely light - this system can be installed and setup in time
  • Convinces with excellent speech reproduction and wide coverage
  • Ideal for DJs, entertainers, small bands and various kinds of mobile PA applications
  • Dual class D amplifier (400 W + 200 W RMS) with SMPS
  • 2 x 25 cm bassreflex subwoofer
  • Fullrange column speaker with 12 x 8 cm drivers
  • Balanced 6.3 mm jack input and parallel XLR output
  • Master level control with peak indication
  • Adjustable crossover frequency for subwoofer
  • Phase switchable for subwoofer
  • Subwoofer with plywood enclosure
  • Column speaker with MDF enclosure
  • Scratch-resistant lacquer surface, impact-resistant steel grille and flange
  • Delivery includes distance tube, speaker cable and power cable
  • Castor set and wheel board available as accessory
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Power consumption:200 W (1/8 power)
Power output sine:
Subwoofer:400 W RMS
Satellite speaker:200 W RMS
Components:
Subwoofer:2 x 25 cm woofer (10")
Satellite speaker:12 x 8 cm mid-high driver (12 x 3")
Maximum SPL:
Subwoofer:120 dB
Satellite speaker:118 dB
Frequency range:
Subwoofer:45-180 Hz
Satellite speaker:120-20000 Hz
Crossover frequency:40-160 Hz
Microphone input:combination XLR/6.3 mm jack, bal.
Line input:combination XLR/6.3 mm jack, bal. and RCA L/R
Speaker output:1 x speaker, 4 ohms
Packaging units
PU EAN Weight Dimensions
1 4026397568493
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00084241.pdf 1.00 de/en
Catalog pages
Name Version Language
00097112.pdf 25.00 de
00097909.pdf 25.00 en
All images
Name Version Language
11038852.zip
