Technical specifications
Power supply:
100-240 V AC, 50/60 Hz
Frequency range:
40 - 18000 Hz
Dimensions:
Width: 71 cm
Depth: 48.5 cm
Height: 38 cm
Weight:
18.50 kg
Rated power:
200 W RMS
Program power:
300 W
Components:
38 cm woofer (15"), 4.4 cm horn (1.73")
Storage media:
USB devices and SD(HC) cards
Inputs:
1 Mic:
3-pin XLR or 6.3 mm jack, unbal.
1 Line:
XLR or stereo RCA
Outputs:
1 Line:
3-pin XLR or 6.3 mm jack, unbal.
Maximum SPL:
120 dB
Packaging units
PU
EAN
Weight
Dimensions
1
4026397423402
20,10 kg
49,5cm x 43cm x 77cm
Spare parts
Downloads
Spezifications
Name
Version
Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral
Service document
Name
Version
Language
11038791-Service-76813-1.0000-de.pdf (101 KB)
1.0000
de
All images
Name
Version
Language
11038791-Images-.zip

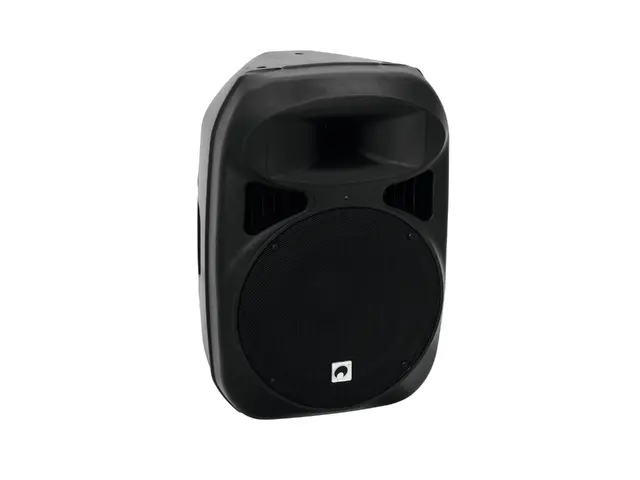

OMNITRONIC NKB-215AP Plastic cabinet active
Double tap or pinch to zoom
Hover to zoom
Bildergalerie öffnen
Detail images (13 overall)

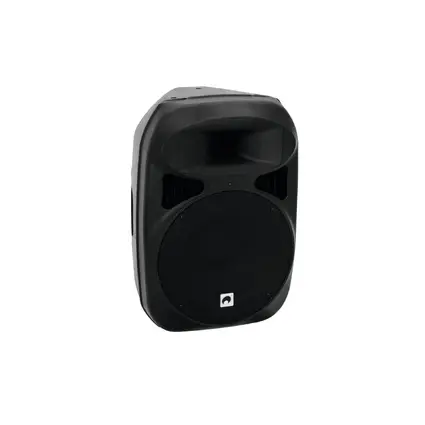

OMNITRONIC NKB-215AP Plastic cabinet active
The article is no longer in our assortment.
No. 11038791
Active 2-way speaker system for PA and DJ applications
Built-in MP3 player with SD card slot and USB input
Class D circuitry: optimum sound and power at low weight and compact dimensions
2-way bass-reflex system with 38 cm woofer and 4.5 cm tweeter
Mic and line inputs with separate level controls
Master control with 2-way tone control and clip LED
Line output for linking further active speaker systems
Front blue signal LED
Stable plastic housing with protective grille and handles
Flange for stand installation
Can be used as floor monitor, standing, on a speaker stand or wall holder
For mobile live and DJ applications
Technical specifications
