Active 2-way speaker system for PA and DJ applications

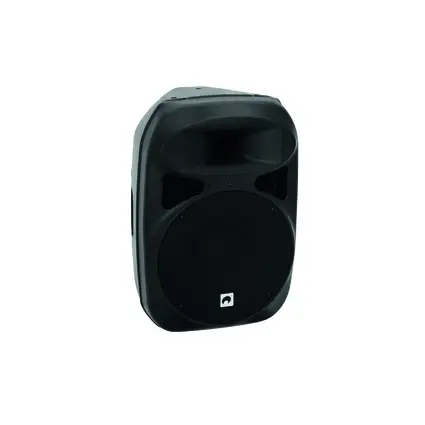

OMNITRONIC NKB-215A Plastic cabinet active

OMNITRONIC

Active 2-way speaker system for PA and DJ applications

OMNITRONIC NKB-215A Plastic cabinet active

Item no. 11038790

Features

Active 2-way speaker system for PA and DJ applications

  • Class D circuitry: optimum sound and power at low weight and compact dimensions
  • 2-way bass-reflex system with 38 cm woofer and 4.4 cm tweeter
  • Mic and line inputs with separate level controls
  • Master control with 2-way tone control and clip LED
  • Line output for linking further active speaker systems
  • Front blue signal LED
  • Stable plastic housing with protective grille and handles
  • Flange for stand installation
  • Can be used as floor monitor, standing, on a speaker stand or wall holder
  • For mobile live and DJ applications
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Frequency range:40 - 18000 Hz
Width:71 cm
Height:38 cm
Depth:48,5 cm
Weight:19,75 kg
Rated power:200 W RMS
Program power:300 W
Components:38 cm woofer (15"), 4.4 cm horn (1.73")
Inputs:
1 Mic:3-pin XLR or 6.3 mm jack, unbal.
1 Line:XLR or stereo RCA
Outputs:
1 Line:3-pin XLR or 6.3 mm jack, unbal.
Maximum SPL:120 dB
Packaging units
PU EAN Weight Dimensions
1 4026397423396 20,95 kg 49cm x 43cm x 76,5cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
11038790-Manual-58981-1.100-de_en.pdf (921 KB) 1.100 de_en
Service document
Name Version Language
11038790-Service-76813-1.000-de.pdf (101 KB) 1.000 de
All images
Name Version Language
11038790-Images.zip
