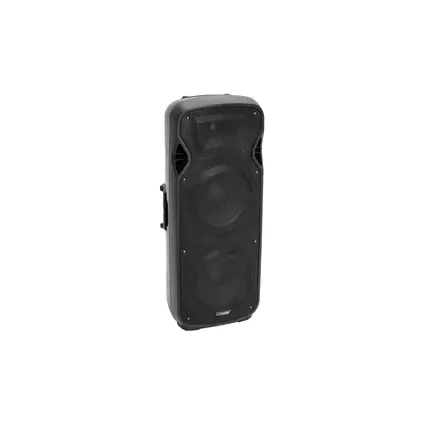

Speaker with 2 x 12" woofer, 1" driver, 150 W RMS player and Bluetooth
OMNITRONIC VFM-2212AP 2-Way Speaker, active

Name: OMNITRONIC VFM-2212AP 2-Way Speaker, active
Brand: OMNITRONIC
SKU: 11038778
Price: 199.00 EUR
Availability: InStock

Stock for approx. 12 wk(s)

199,00 €

167,23 €

-16% valid until 30.06.2020

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Features

Speaker with 2 x 12" woofer, 1" driver, 150 W RMS player and Bluetooth

MP3 player with Bluetooth receiver, blue LCD and IR remote control
SD card slot and USB input
Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
Class A/B circuitry: optimum sound and power at low weight and compact dimensions
2-way bassreflex system with 2 x 30 cm woofer and 2.5 cm tweeter
2 mic inputs with separate level controls
Line input, RCA
Master control with 2-way tone control, clip and power LED
Line output for linking further active speaker systems
2 wheels for easy transport
Stable plastic housing with protective grille and handles
Flange for stand installation
Can be used as floor monitor, standing, on a speaker stand or wall holder
For mobile live and DJ applications
Control: IR remote control; Bluetooth
Transport aid: Trolley

Technical specifications

Power supply:	230 V AC, 50 Hz
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Rated power:	150 W RMS
Program power:	300 W
Frequency range:	50 - 20000 Hz
Sensitivity:	96 dB
Max. SPL:	122 dB
Control:	IR remote control
	Bluetooth
Audio player:	USB + SD + Bluetooth
Equalizer:	master: 1 x 2-band tone control
Attachment system:	Ø 35mm
Connections:	Input: 2 x Microphone via 3-pin XLR
	Input: 2 x Microphone via 6.3 mm plug (unbal.)
	Input: 1 x line via Stereo RCA
	Output: line via Stereo RCA
input channels:	2 x Mono via XLR or jack, channel control via Rotary knob
	1 x Stereo with RCA/player button via RCA or player, channel control via Rotary knob
Format:	MP3, WAV
Number of files:	max. 999
Available storage media:	USB devices/SD cards
Speakers:	1 x compression tweeter highs (1") approx 2,5 cm with Neodymiummagnet
	Voice coil compression tweeter highs (1") approx 2,5 cm
	Horn vent (1") approx 2,5 cm
	2 x woofer (12") approx 30 cm with Ferritmagnet
	Voice coil lows (1.5") approx 4 cm
Width:	32 cm
Height:	95 cm
Depth:	39.5 cm
Weight:	16 kg
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in

Packaging units

PU	EAN	Weight	Dimensions
1	4026397596649	17,95 kg	44cm x 37cm x 100,5cm
