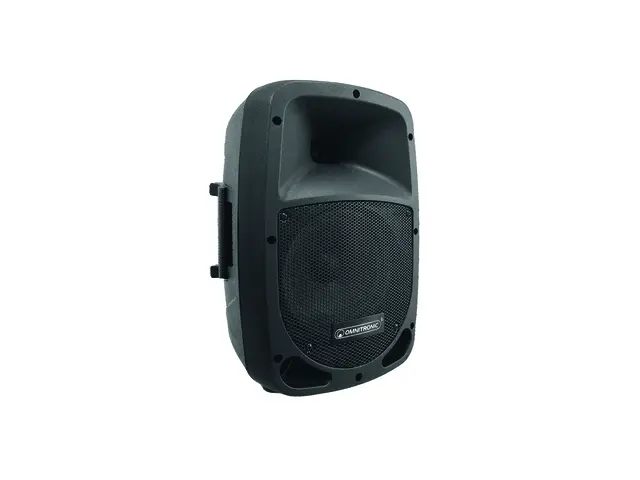

Passive speaker, 8" woofer, 1" driver, 80 W RMS, 8 ohms
| Rated power: | 80 W RMS |
| Program power: | 160 W |
| Frequency range: | 75 - 20000 Hz |
| Max. SPL: | 111 dB |
| Impedance: | 8 Ohm |
| Attachment: | Flange system Ø 35mm |
| Connections: | Input: 2 x Speakers via Speaker built-in socket (f) |
| Speakers: | 1 x Tweeter highs (1") approx 2,5 cm with Ferritmagnet |
| Voice coil tweeter (1") approx 2,5 cm | |
| Horn vent (1") approx 2,5 cm | |
| 1 x woofer (8") approx 20 cm with Ferritmagnet | |
| Voice coil lows (1.5") approx 4 cm | |
| Width: | 29.5 cm |
| Height: | 43.8 cm |
| Depth: | 24.5 cm |
| Weight: | 3.90 kg |
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397542721 | 4,60 kg | 45cm x 25cm x 30cm |
| Name | Version | Language |
|---|---|---|
| 11038765-Manual-89122-1.000-de_en.pdf (833 KB) | 1.000 | de_en |
| Name | Version | Language |
|---|---|---|
| 11038765-Page-97887-25.00-en.pdf (285 KB) | 25.00 | en |
| 11038765-Page-97786-25.00-de.pdf (283 KB) | 25.00 | de |
| 11038765-Page-115469-27.00-en.pdf (213 KB) | 27.00 | en |
| 11038765-Page-115032-27.00-de.pdf (213 KB) | 27.00 | de |
| Name | Version | Language |
|---|---|---|
| 11038765-Images.zip |
