Active plastic cabinet
OMNITRONIC KPR-212A PA cabinet active

OMNITRONIC

Active plastic cabinet

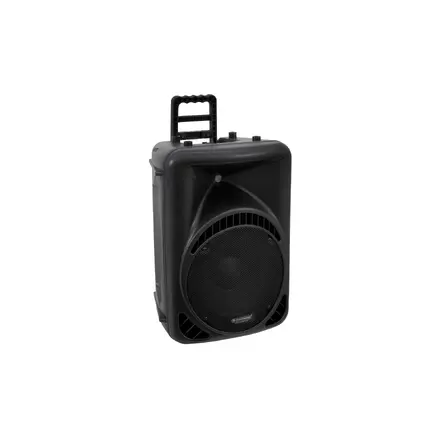

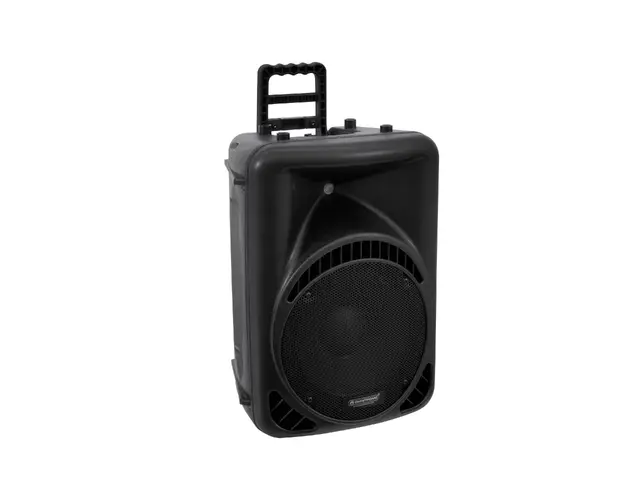

OMNITRONIC KPR-212A PA cabinet active

Item no. 11038760

Features
  • Active speaker-system for direct connection with the signal source
  • Controllable mic input and line input
  • 2-band EQ master-signal
  • Large mid-range horn
  • 2-way crossover
  • Powerful bass via voluminous housing and bass-reflex tubes
  • Ideal for standing or on a speaker-stand
  • Strong protective grille for perfect protection
  • Scratch-resistant plastic housing
  • Compact speaker-system for car transport
  • Ideal for live music or for permanent installation in party-rooms
  • Transport handle and two wheels
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Rated power:150 W RMS
Program power:300 W
Components:30 cm woofer (12"), 3.5 cm horn (1.35")
Maximum SPL:115 dB
Amplifier:
Nominal power output:150 W RMS
Maximum power output:300 W
Inputs:
1 MicXLR or balanced 6.3 mm jack
1 LineXLR or RCA
Outputs:
1 Line OutXLR or balanced 6.3 mm jack
Dimensions (H x W x D):600 x 410 x 350 mm
Power consumption:230.00 W
Weight:17 kg
Frequency range:45 - 20000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397236620 19,00 kg 45cm x 38cm x 65cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00015001.pdf 1.10 de/en
Service document
Name Version Language
Circuit diagram00015006.pdf 1.00 de
All images
Name Version Language
11038760.zip
