Active plastic cabinet

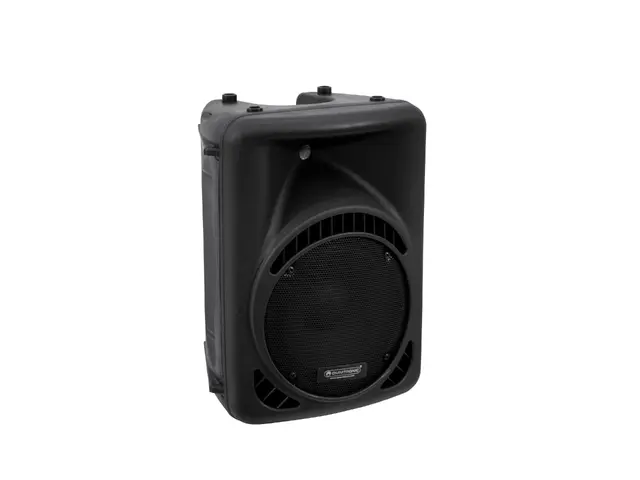

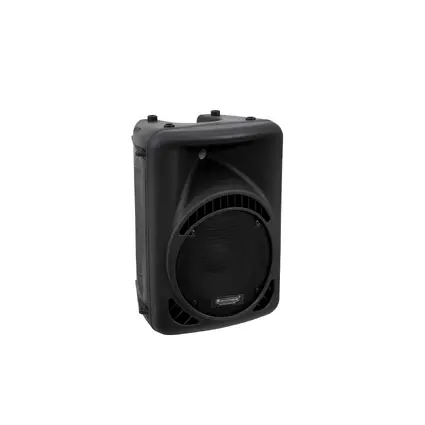

OMNITRONIC KPR-210A PA cabinet active

OMNITRONIC

Active plastic cabinet

OMNITRONIC KPR-210A PA cabinet active

Item no. 11038756

Features
  • Active speaker-system for direct connection with the signal source
  • Controllable mic input and line input
  • 2-band EQ master-signal
  • Large mid-range horn
  • 2-way crossover
  • Powerful bass via voluminous housing and bass-reflex tubes
  • Ideal for standing or on a speaker-stand
  • Strong protective grille for perfect protection
  • Scratch-resistant plastic housing
  • Compact speaker-system for car transport
  • Ideal for live music or for permanent installation in party-rooms
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Rated power:120 W RMS
Program power:240 W
Components:25 cm woofer (10"), 3.5 cm horn (1.35")
Maximum SPL:110 dB
Amplifier:
Nominal power output:120 W RMS
Maximum power output:240 W
Inputs:
1 MicXLR or balanced 6.3 mm jack
1 LineXLR or RCA
Outputs:
1 Line OutXLR or balanced 6.3 mm jack
Frequency range:50-20000 Hz
Dimensions (H x W x D):515 x 380 x 315 mm
Power consumption:230.00 W
Weight:13 kg
Packaging units
PU EAN Weight Dimensions
1 4026397236668 15,35 kg 40cm x 35cm x 58cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00015001.pdf 1.10 de/en
Service document
Name Version Language
Circuit diagram00015006.pdf 1.00 de
All images
Name Version Language
11038756.zip
