Active 2-way speaker system

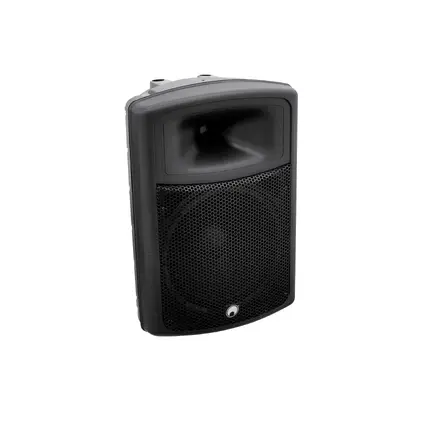

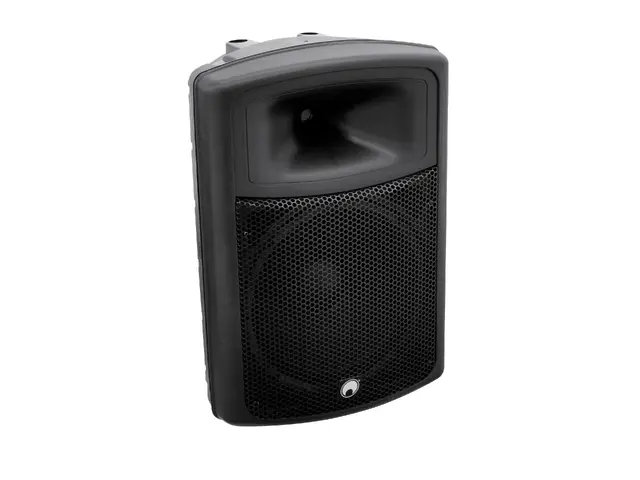

OMNITRONIC KPA-215A PA Cabinet active

OMNITRONIC

Active 2-way speaker system

OMNITRONIC KPA-215A PA Cabinet active

Item no. 11038722

Features
  • XLR and jack socket for direct connection with the signal source (line, mic)
  • Line/Mic pad for input level adjustment
  • Large mid-range horn with powerful driver
  • Bi-amped for cristal clear playback
  • Ideal as floor-monitor, standing, on a speaker stand or on a wall-mounting
  • Strong protective grille for perfect protection
  • Scratch-resistant plastic housing
  • Compact speaker system for car transport
  • Ideal for live music or discotheques
Technical specifications
Power supply:230 V AC, 50 Hz
Dimensions (H x W x D):730 x 500 x 360 mm
Speaker-system:
Rated power:250 W RMS
Program power:500 W
Components:38 cm woofer (15"), 2.5 cm horn (1")
Inputs:XLR/jack
Dispersion angle:90° x 40°
Maximum SPL:120 dB
Impedance:8 ohms
LF-amplifier:
Maximum power output:450 W / 4 ohms
Distortion:0.1 %
HF-amplifier:
Maximum power output:50 W / 4 ohms
Distortion:0.1 %
Weight:21 kg
Power consumption:510.00 W
Frequency range:55 - 18000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397200799 25,10 kg 55cm x 41cm x 76cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00020764.pdf 1.10 de/en
Illustration
Name Version Language

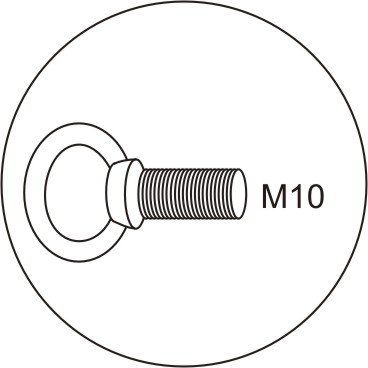

Ring bolt M10/17mm
0.00 de
Catalog pages
Name Version Language
00067073.pdf 21.00 de
00067832.pdf 21.00 en
Data sheet
Name Version Language
00009404.pdf 1.00 de
00009405.pdf 1.00 en
All images
Name Version Language
11038722.zip
