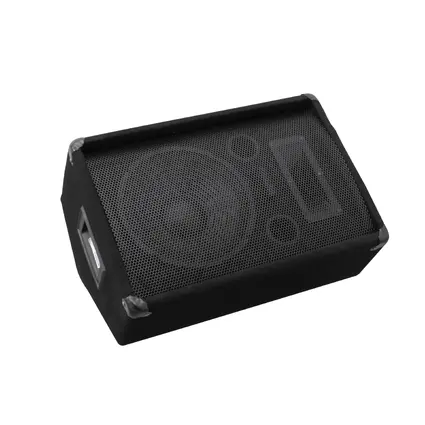

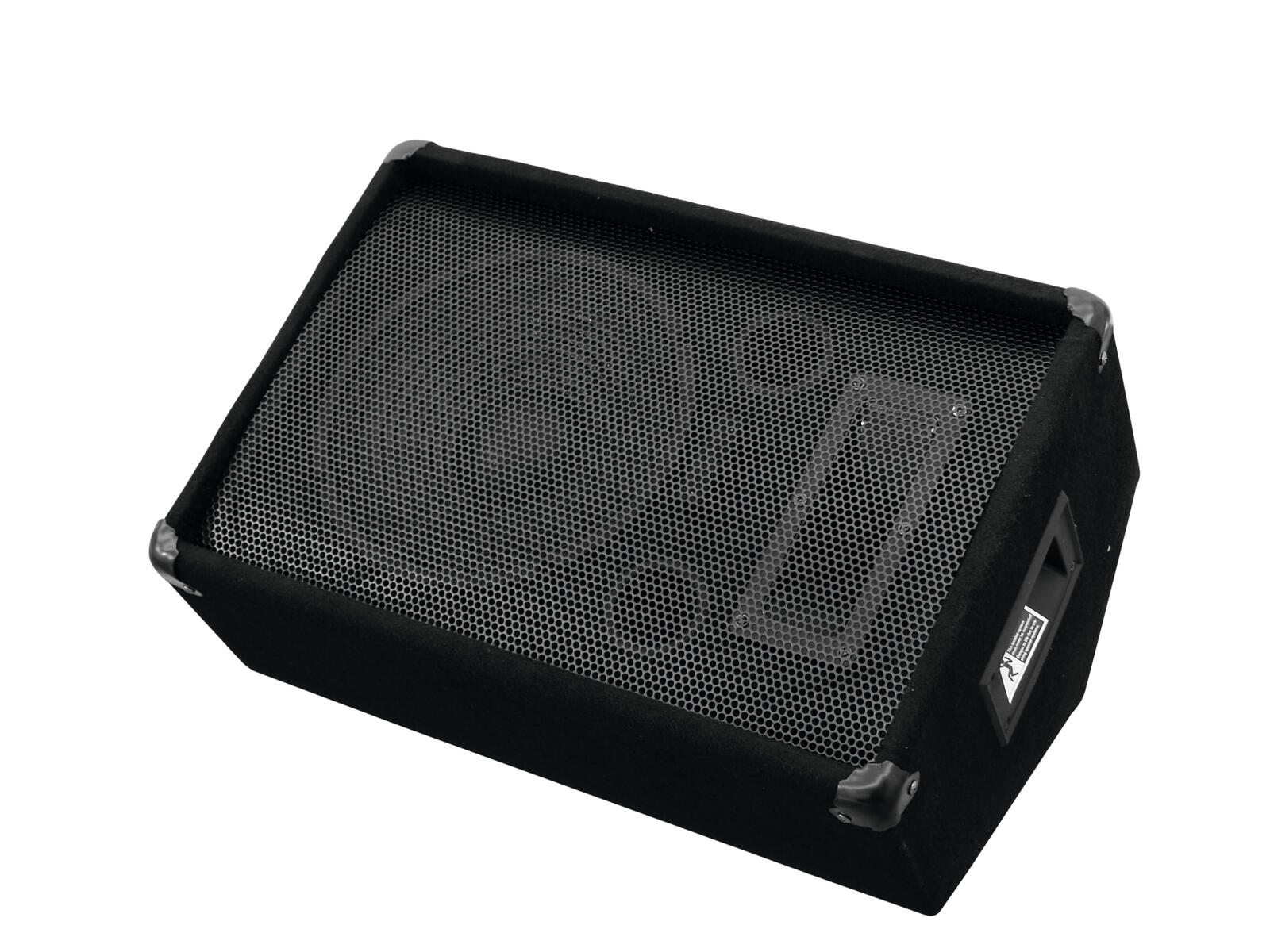

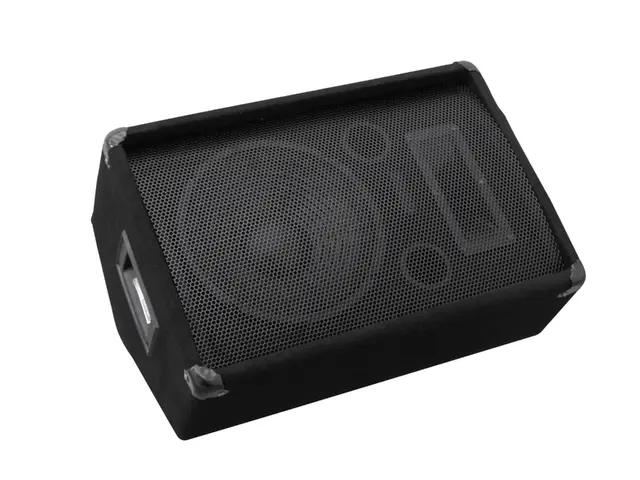

2-way stage monitor
OMNITRONIC M-1020 Monitor 400W

Name: OMNITRONIC M-1020 Monitor 400W
Brand: OMNITRONIC

2-way stage monitor

OMNITRONIC M-1020 Monitor 400W

The article is no longer in our assortment.

Item no. 11038006

Print product

Product badge

Hear it right!
A monitor - the word is borrowed from Latin, by the way - somehow describes itself without much explanation. It controls something or to be exact, it easily enables a musician to check what he or she is playing and if it sounds right - so does the M-1020. This rugged monitor has a very high durability and was created for the use on stages. A product, that is absolutely indispensable for any live event.

Features

2-way stage monitor

Rugged 2-way speaker-system in a stable wooden housing
Large mid-range horn with coil-driver for balanced mids
With passive 2-way crossover
Powerful, dry bass via voluminous housing and bass-reflex tubes
Horizontal loudspeaker alignment
Very high durability
Scratch-resistant, black felt-covering
Strong protective grille for perfect protection
With stable protective steel corners

Technical specifications

Frequency range:	40 - 18000 Hz
Width:	34,5 cm
Height:	51,5 cm
Depth:	29 cm
Weight:	9,00 kg
Rated power:	200 W RMS
Program power:	400 W
Components:	25 cm woofer (10"), horn
Connection:	2 Speaker sockets
Sensitivity:	95 dB
Impedance:	8 ohms
Dimensions (H x W x D):	345 x 515 x 290 mm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397288674	9,90 kg	38cm x 32cm x 56cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Loading spareparts. Please wait...

Downloads

User manual

Name	Version	Language
11038006-Manual-64404-1.400-de_en.pdf (4 MB)	1.400	de_en

All images

Name	Version	Language
11038006-Images.zip
