Active 2-way PA speaker system
OMNITRONIC MagiCarpet-212A 2-Way Active Speaker

OMNITRONIC

Active 2-way PA speaker system

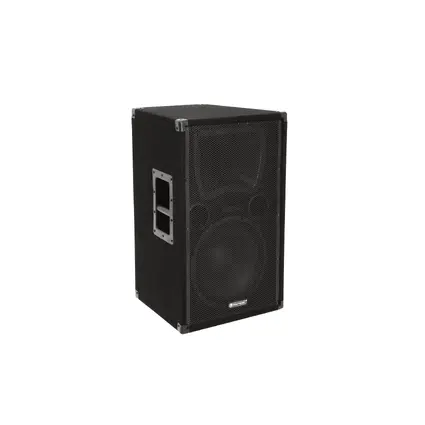

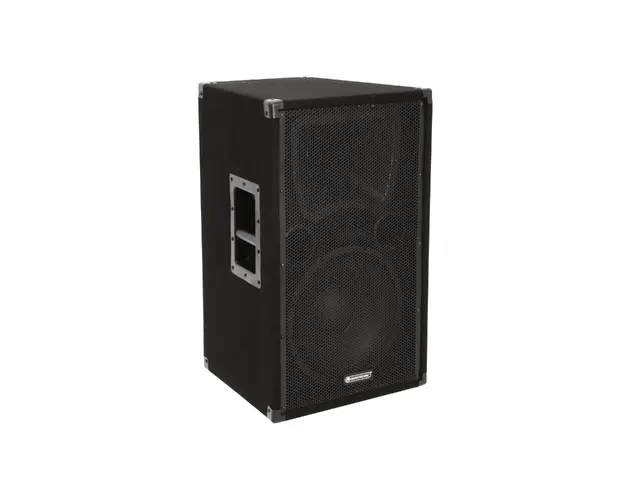

OMNITRONIC MagiCarpet-212A 2-Way Active Speaker

Item no. 11037403

Features
  • Active full-range party speaker system with 150 W RMS power
  • 30 cm bass speaker (12") with 50 mm voice coil
  • 34 mm titanium driver
  • Passive 2-way crossover, PTC tweeter protection
  • Adjustable microphone input (XLR and 6.3 mm jack)
  • Adjustable line input (XLR and RCA L/R)
  • Line output (6.3 mm jack)
  • Master volume control
  • Equalizer for adjusting low and high frequencies
  • LED power and clipping indicator
  • Rugged wooden housing with black felt cover
  • Flange for stand installation
  • Bar handles for easy transport
  • Impact-resistant steel grille, steel corners and support feet
  • For mobile applications and permanent installations
  • Can be used lying, standing, on a subwoofer or on a speaker stand
  • Suitable for car transport
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Power consumption:70 W (1/8 power)
Rated power:150 W RMS
Program power:300 W
Components:30 cm woofer (12"), 34 m m horn
Input:
Line:6.3 mm jack, RCA L/R
Mic:2 x XLR, 6.3 mm jack, RCA
Output:
Line:6.3 mm jack
Sensitivity:92 dB
Dimensions (H x W x D):410 x 415 x 680 mm
Weight:24 kg
Frequency range:50 - 18000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397535228 30,20 kg 76,5cm x 48,5cm x 49cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00088653.pdf 1.00 de/en
Catalog pages
Name Version Language
00097784.pdf 25.00 de
00097885.pdf 25.00 en
All images
Name Version Language
11037403.zip
