Technical specifications

IP classification:	IP56
Power:	Program: 200W (8 ohms) Rated: 100W RMS (8 ohms)
Frequency range:	100 - 18000 Hz
Sensitivity:	93 dB (1W/1m)
Max. SPL:	116 dB
Dispersion angle:	100° x 100° conical
Impedance:	8 ohms; public address systems 100V
Attachment system:	Mounting bracket
Power tapping:	25W; 50W; 100W RMS via selector switch switchable
Connections:	Screw terminal
Crossover frequency:	2800 Hz
Speaker:	1 x woofer 6.5" with ferrit magnet Voice coil lows 1.4" 1 x compression tweeter highs 0.8" Voice coil compression tweeter highs 1"
Type of speaker:	On ceiling/on wall speaker
Type of construction:	Vented
Color:	White
Dimensions:	Width: 25.65 cm Depth: 27.3 cm Height: 25.85 cm
Weight:	7.20 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397721515	8,20 kg	32,5cm x 32,5cm x 30cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
11036972-Images-.zip

OMNITRONIC ODX-206T Installation Speaker 100V white

Name: OMNITRONIC ODX-206T Installation Speaker 100V white
Brand: OMNITRONIC
SKU: 11036972
Price: 249.00 EUR
Availability: InStock

Stock for approx. 12 wk(s)

249,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 11036972

Weather-proof 6.5" wall speaker (IP56) with mount, 100 W RMS

2-way coaxial system
Durable plastic cabinet with metal grille
Power selector switch with 8 ohms operating position
Screw terminals for parallel connection

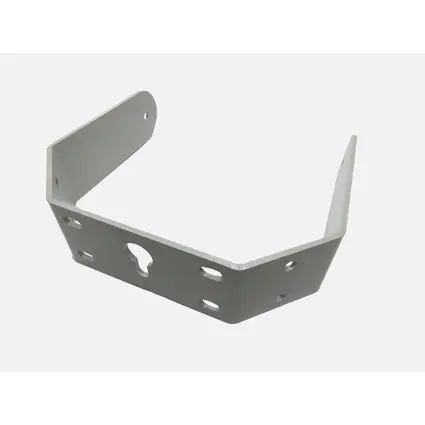

With mounting bracket
White metal grille
Suitable for outdoor use IP56
For application areas such as: Installation; sports centres/gyms; multi-purpose hall

Technical specifications

Spare parts

User manual

Downloads

Manufacturer information

Scope of delivery
