Steinigke Showtechnic GmbH - Your wholesale company for event technology. We only sell to commercial customers. All prices without tax.


2 active speakers with mount, 6.5" woofers and 45 RMS

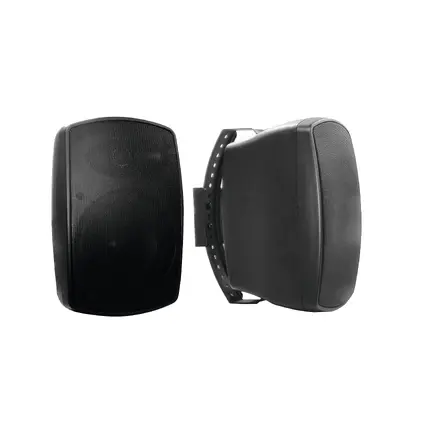

OMNITRONIC OD-6A Wall Speaker active black 2x


2 active speakers with mount, 6.5" woofers and 45 RMS

OMNITRONIC OD-6A Wall Speaker active black 2x


2 active speakers with mount, 6.5" woofers and 45 RMS

  • Dedicated PA speaker systems for fixed installations
  • 2-way system with 16.5 cm woofer (6.5") and dome tweeter, magnetic shielding
  • Class A/B circuitry: optimum sound and power at low weight and compact dimensions
  • Separate controls for volume, high and low frequencies
  • Each speaker system is equipped with an unbalanced RCA input and balanced spring terminals
  • Additional 3.5 mm jack input, ideal for portable MP3 players
  • Attractive plastic cabinet with metal grille
  • Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles
  • Packed as a pair
  • For indoor PA applications
Technical specifications
Power supply:230 V AC, 50 Hz
Power connection:Mains input IEC connector (M) mounting version Power supply cord with Euro plug (provided)
Rated power:45 W RMS
Program power:90 W
Frequency range:80 - 20000 Hz
Sensitivity:89 dB
Max. SPL:96 dB
Dispersion angle:170° x 170°
Attachment system:Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
Circuitry:Class AB
Connections:1 x line via 3.5 mm jack (mono) mounting version
1 x line via RCA (f) mounting version
Speakers:1 x woofer (6.5") approx. 17 cm
1 x horn (1") approx 2,5 cm
Dimension:Width: 19.5 cm
Depth: 19.5 cm
Height: 30 cm
Weight:8.90 kg
Packaging units
PU EAN Weight Dimensions
1 4026397543681 9,50 kg 50cm x 23,5cm x 33cm
2 4026397544169 20,00 kg 52cm x 48cm x 36cm
