2 active speakers with mount, 5.25" woofers and 35 W RMS

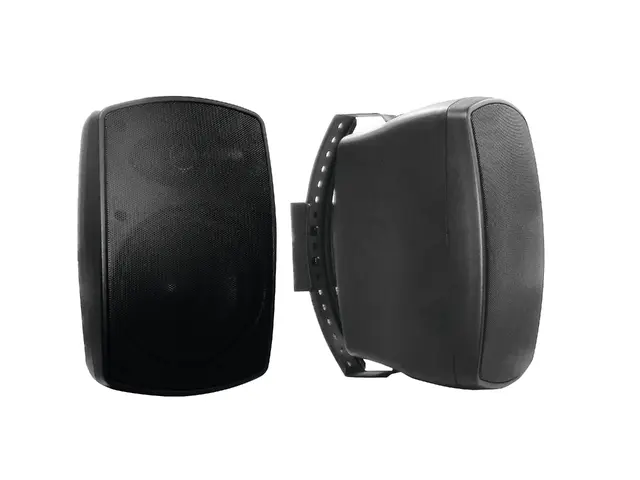

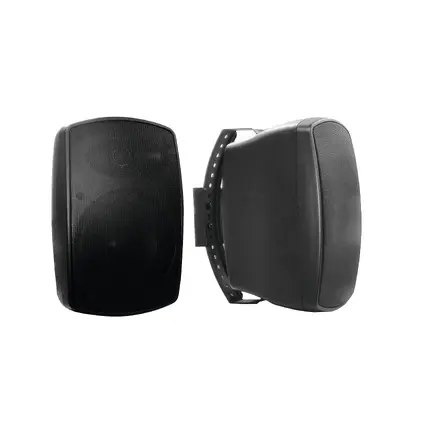

OMNITRONIC OD-5A Wall Speaker active black 2x

mpn11036922-omnitronic-od-5a-wall-speaker-active-black-2x-MainBild
download image
Detail images (4 overall)
mpn11036922-omnitronic-od-5a-wall-speaker-active-black-2x-Bild-1
mpn11036922-omnitronic-od-5a-wall-speaker-active-black-2x-Bild-2
mpn11036922-omnitronic-od-5a-wall-speaker-active-black-2x-Bild-3
mpn11036922-omnitronic-od-5a-wall-speaker-active-black-2x-Bild-4
svg
svg
svg
OMNITRONIC

2 active speakers with mount, 5.25" woofers and 35 W RMS

OMNITRONIC OD-5A Wall Speaker active black 2x

Stock for approx. 12 wk(s)
149,00 €
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 11036922

Print product
Product badge
Features

2 active speakers with mount, 5.25" woofers and 35 W RMS

  • Dedicated PA speaker systems for fixed installations
  • 2-way system with 13.5 cm woofer (5.25") and dome tweeter, magnetic shielding
  • Class D circuitry: optimum sound and power at low weight and compact dimensions
  • Separate controls for volume, high and low frequencies
  • Each speaker system is equipped with an unbalanced RCA input and balanced spring terminals
  • Attractive plastic cabinet with metal grille
  • Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles
  • Packed as a pair
  • For indoor PA applications
Technical specifications
Power supply:230 V AC, 50 Hz
Power connection:Mains input IEC connector (M) mounting version Power supply cord with Euro plug (provided)
Rated power:35 W RMS
Program power:75 W
Frequency range:80 - 20000 Hz
Sensitivity:89 dB
Max. SPL:93 dB
Dispersion angle:170° x 170°
Color:Black
Attachment:Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
Circuitry:Class D
Connections:line via screw terminal
1 x line via RCA (f) mounting version
Speakers:1 x woofer (5") approx. 13 cm
1 x Horn (0.5") approx. 1.27 cm
Width:16,3 cm
Height:25,5 cm
Depth:16 cm
Weight:6,30 kg
Packaging units
PU EAN Weight Dimensions
1 4026397543629 6,80 kg 42cm x 20cm x 28cm
2 4026397544107 14,20 kg 44cm x 40cm x 30,5cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
11036922-Manual-94881-1.100-de_en.pdf (1 MB) 1.100 de_en
Catalog pages
Name Version Language
11036922-Page-97882-25.00-en.pdf (219 KB) 25.00 en
11036922-Page-97781-25.00-de.pdf (220 KB) 25.00 de
11036922-Page-115453-27.00-en.pdf (354 KB) 27.00 en
11036922-Page-115016-27.00-de.pdf (354 KB) 27.00 de
All images
Name Version Language
11036922-Images.zip
