Active design speaker pair
OMNITRONIC EG-30A, active,white/set

OMNITRONIC

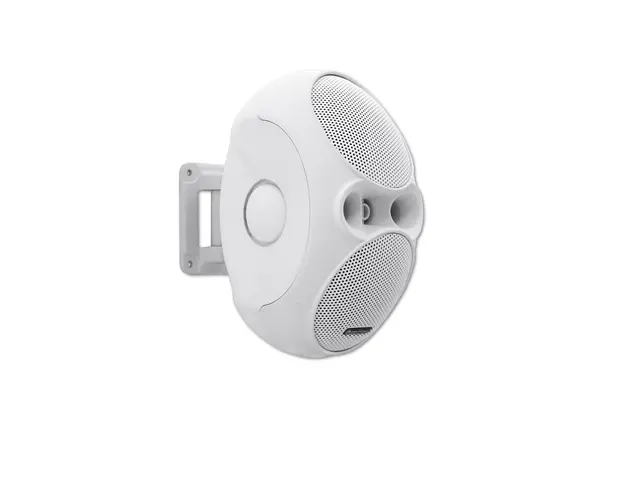

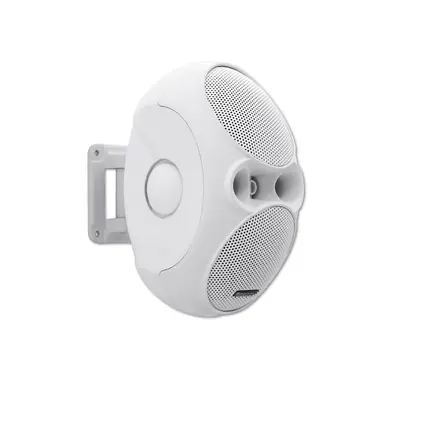

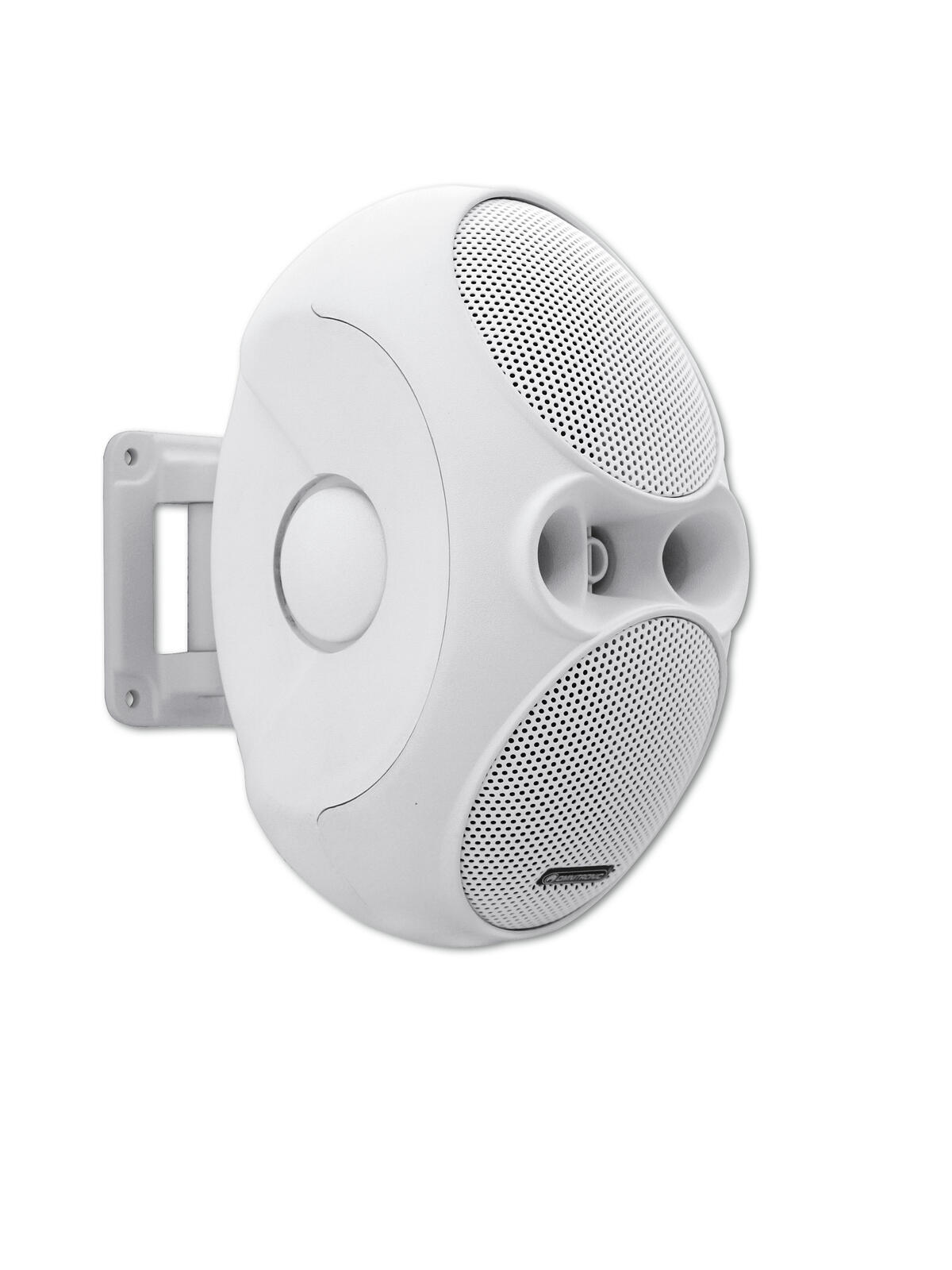

Active design speaker pair

OMNITRONIC EG-30A, active,white/set

Item no. 11036856

Features
  • High-quality sound, capable of high volumes due to 2-way system
  • 2 x 8 cm woofer (2 x 3") and 2 cm tweeter (0.75")
  • 2-way tone control and level control
  • Signal input and output via balanced XLR connectors
  • Oval-shaped design cabinet with bass-reflex system
  • White or black plastic housing (ABS) with metal grille
  • Packed as a pair (2 pieces)
  • Delivery includes mounting bracket (adjustable at will) for ceiling or wall installation
  • Ideal for decentral sound-surroundings in bars, lounges, shops, etc.
Technical specifications
Power supply:230 V AC, 50 Hz
Rated power:20 W RMS
Program power:30 W
Components:2 x 8 cm woofer (2 x 3"), 2 cm horn (0.75")
Connection: 3-pin XLR
Maximum SPL:88 dB
Impedance:4 ohms
Dimensions (H x W x D):244 x 128 x 170 mm
Power consumption:50.00 W
Weight:3 kg
Frequency range:70 - 18000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397325140 4,90 kg 30cm x 27,5cm x 24cm
4 4026397325263 20,60 kg 58cm x 32cm x 50cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00032453.pdf 1.10 de/en
