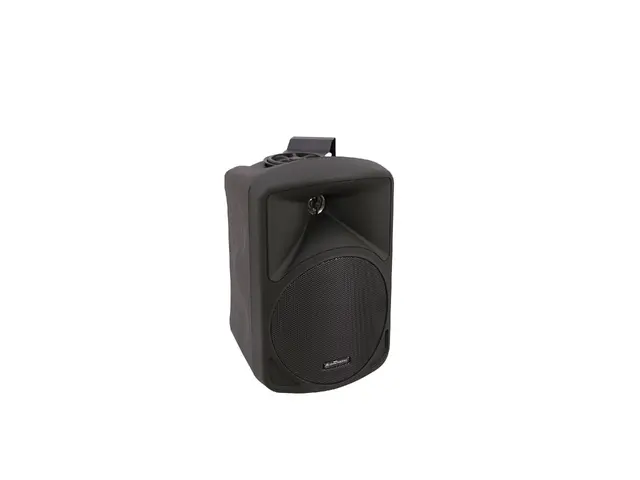

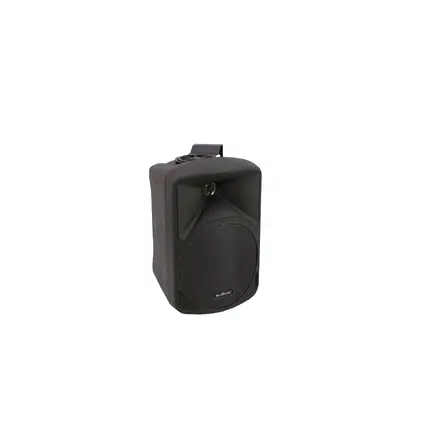

Active speaker pair
OMNITRONIC DH-40A, active,titanium/set

OMNITRONIC

Active speaker pair

OMNITRONIC DH-40A, active,titanium/set

Item no. 11036761

Features

Active speaker pair

  • Dedicated PA speaker system for fixed installations
  • 2-way speaker system with 13 cm polypropylene woofer (5") and 2 cm dome tweeter (0.75") with horn front attachment
  • Well-balanced and clear sound, even with demanding music
  • 2-way tone control and level control
  • Signal input and output via XLR connectors
  • LED level indicator at the front panel
  • White or titanium plastic housing (ABS) with metal grille
  • Delivery includes movable mounting bracket for ceiling or wall installation
  • Ideal for PA applications in restaurants, bars, discos, shops, conferences, etc.
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:50 W
Frequency range:60 - 18000 Hz
Max. SPL:100 dB
Connections:2 x 3-pin XLR
Width:24,7 cm
Height:15,2 cm
Depth:15,8 cm
Weight:7,00 kg
Components:13 cm woofer (5"), 2 cm horn (0.75")
Connection: 3-pin XLR
Maximum SPL:100 dB
Dimensions (H x W x D):247 x 158 x 152 mm
Packaging units
PU EAN Weight Dimensions
1 4026397272161 7,50 kg 39,5cm x 19cm x 28cm
4 4026397272178 31,20 kg 40cm x 42cm x 60cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
Service document
Name Version Language
11036761-Service-66204-1.000-en.pdf (67 KB) 1.000 en
