Technical specifications

Power supply:	230 V AC, 50 Hz
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Device fuse:	5 x 20 mm, T 1 A fuse replaceable
Power:	Program: 80W Rated: 50W RMS
Frequency range:	50 - 20000 Hz
Sensitivity:	89 dB (1W/1m)
Attachment system:	Mounting bracket

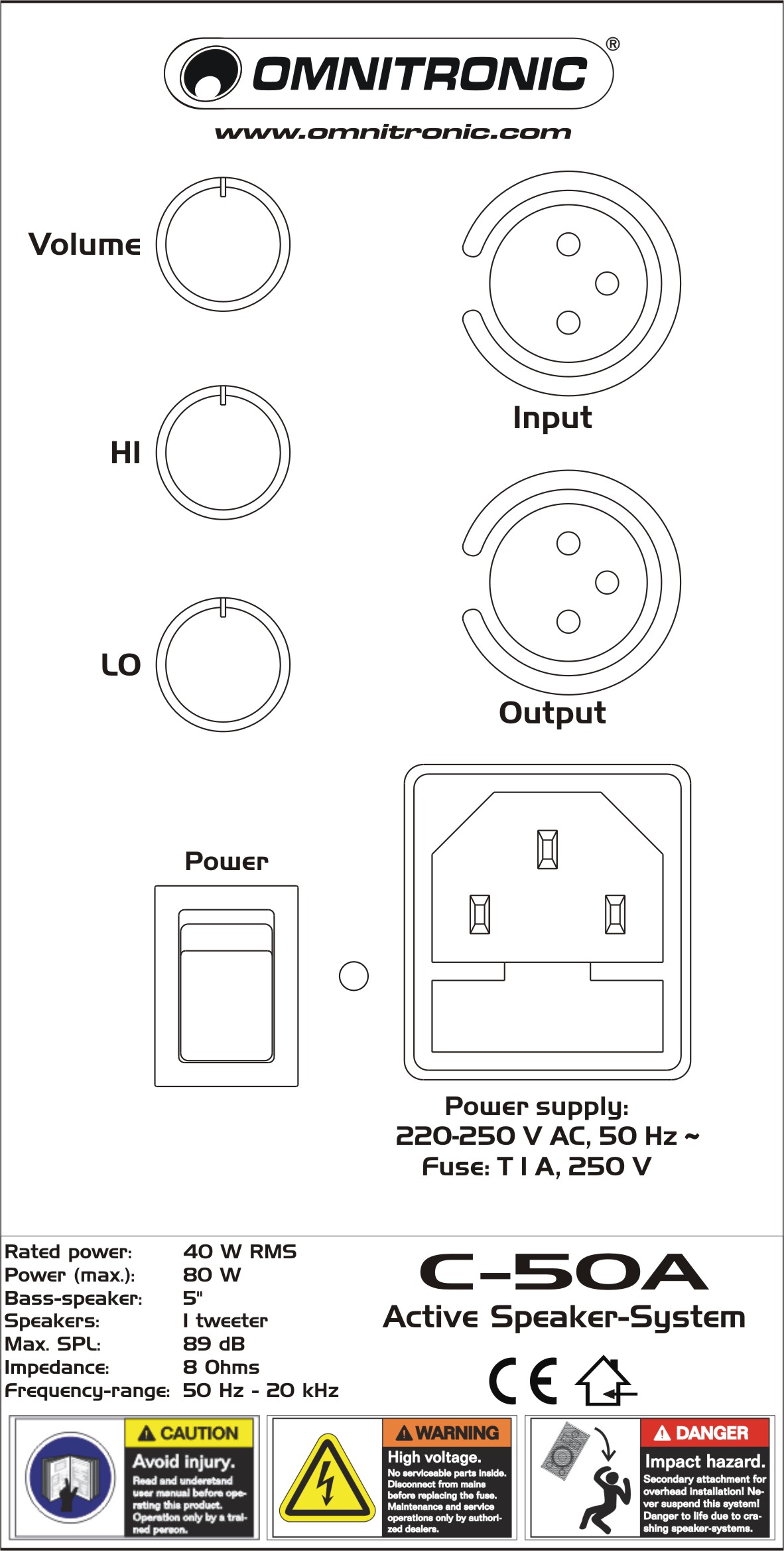

Control elements:	Level control, tone control, power switch
Status LED:	Power
Connections:	Input: line via 1 x 3-pin XLR (F) mounting version Output: 1 x 3-pin XLR (M) mounting version
Speaker:	1 x woofer 5" Basket material: steel Conematerial: cardboard/paper 1 x tweeter 1"
Material:	ABS Acrylonitrile butadiene styrene
Color:	Black, scratchproof and shockproof
Dimensions:	Width: 18 cm Depth: 16.6 cm Height: 23 cm
Weight:	6.30 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397356274	6,80 kg	37,5cm x 21cm x 28cm
4	4026397356281	28,30 kg	43,5cm x 45cm x 60cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Illustration

Name	Version	Language

All images

Name	Version	Language
11036716-Images-.zip

OMNITRONIC C-50A active black 2x

Name: OMNITRONIC C-50A active black 2x
Brand: OMNITRONIC
SKU: 11036716
Price: 159.00 EUR
Availability: InStock

Stock for approx. 12 wk(s)

159,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 11036716

Active 2-way speaker pair with mount, 5" woofers and 50 W RMS

Dedicated PA speaker system for fixed installations
2-way system with 13 cm woofer (5") and 2.5 cm dome tweeter (1")
2-way tone control and level control
Signal input and output via balanced XLR connectors
Trapezoidal cabinet for corner installation
With mounting bracket
Black metal grille
Scratchproof and shockproof
For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures
