Active 2-way nearfield monitor

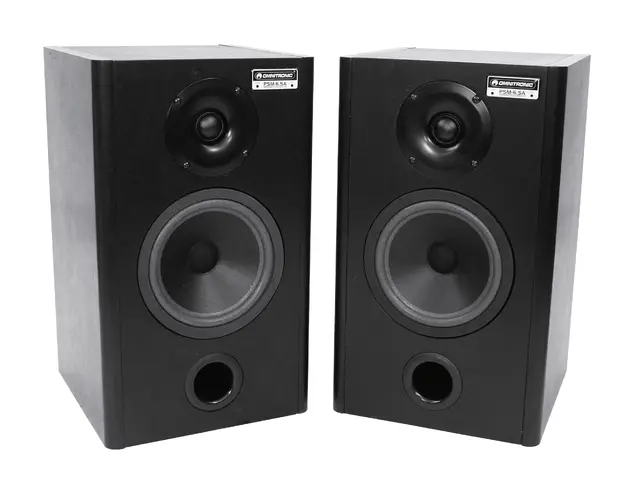

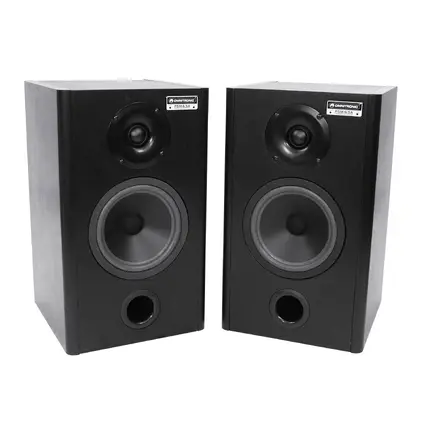

OMNITRONIC PSM-6.5A Studio monitors/pair

OMNITRONIC

Active 2-way nearfield monitor

OMNITRONIC PSM-6.5A Studio monitors/pair

Item no. 11036473

Features

Active 2-way nearfield monitor

  • Balanced frequency range for uncolored playback
  • For studio use, home recording or high-end playback in living rooms
  • Magnetic shielding for use next to computer monitors etc.
  • Ferrofluid-cooled tweeter for brilliant treble
  • Two independent amplifiers for HF and LF
  • Active 2-way crossover
  • Bass-reflex system
  • Gain control for adjusting the input signal
  • Dip switches for adjusting the monitor to the environmental conditions
  • Limiter, switchable for avoiding clipping
  • Line signal connection via XLR/jack socket
  • Rugged MDF wood housing
  • Packed as a pair (2 pieces)
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Power consumption:115,00 W
output:max. 85 W
Frequency range:40 - 20000 Hz
Width:41,5 cm
Height:28,5 cm
Depth:24,5 cm
Weight:24,50 kg
Amplifier power:
HF:30 W
LF:85 W
Components:16.5 cm woofer (6.5"), 2.5 cm tweeter (1")
Connection: XLR/jack socket
Sensitivity:90 dB
Crossover:2.5 kHz
Total Harmonic Distortion:0.05 %
Min. input sensitivity:1 V
Input impedance:10 kohms
Gain control:-6/+9 dB
HF/MF-adjustment:±2 dB @ 10-20 kHz
LF-adjustment:±2 dB @ 20-80 Hz
Dimensions (H x W x D):415 x 245 x 285 mm
Packaging units
PU EAN Weight Dimensions
1 4026397192667 26,50 kg 62cm x 3,5cm x 52cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
11036473-Manual-6863-1.000-de_en.pdf (1 MB) 1.000 de_en
Video file
Name Version Language
11036473-Video-51537-de_en_fr_es.flv (64 MB) 0.000 de_en_fr_es
All images
Name Version Language
11036473-Images.zip
