The completion for your studio monitors

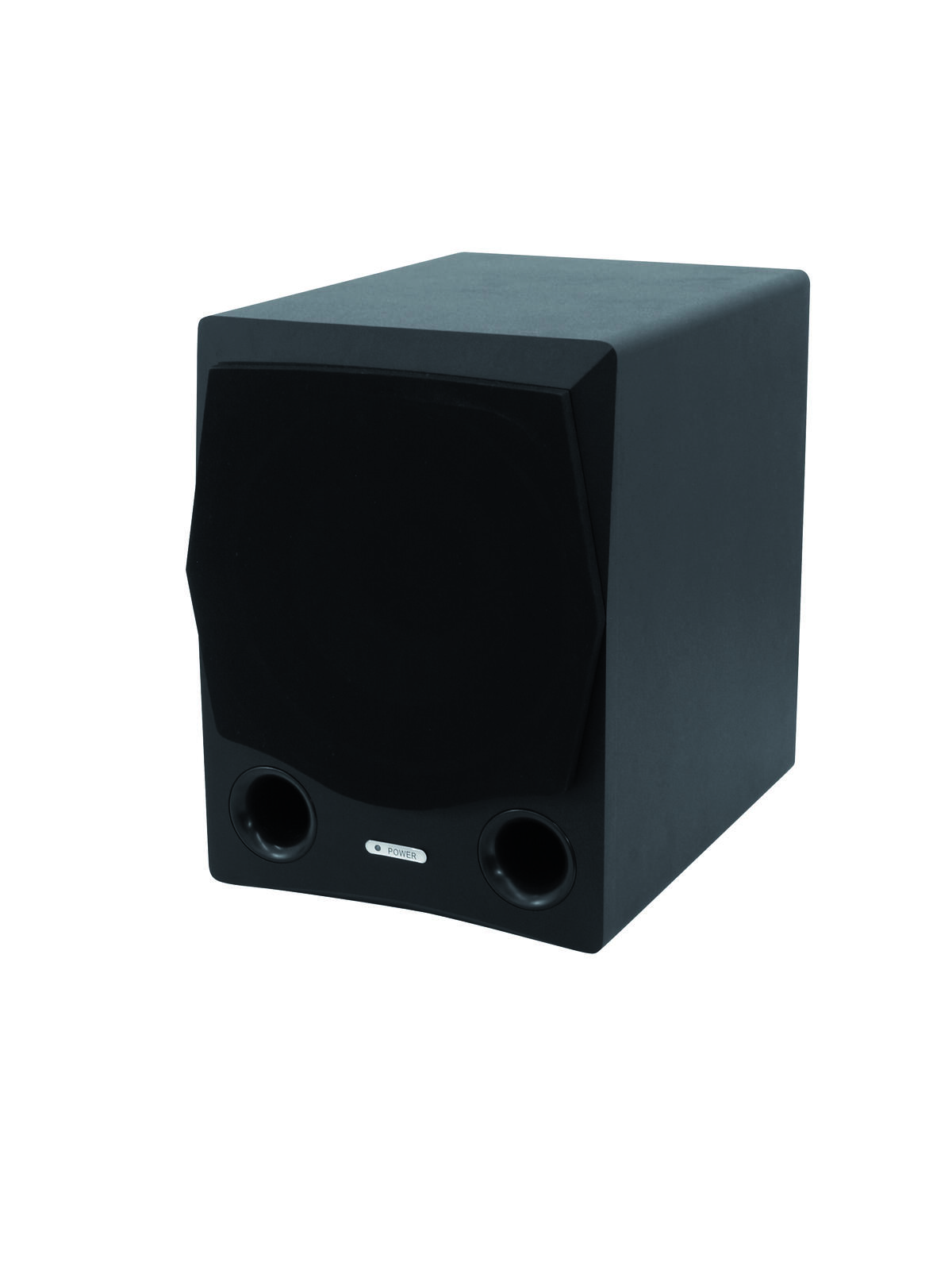

OMNITRONIC PMS-10 Studio subwoofer


The completion for your studio monitors

OMNITRONIC PMS-10 Studio subwoofer

Item no. 11036468


The completion for your studio monitors

  • Suitable for PMM-4, PMM-5, PMM-8, PSM-6.5, PSM-6.5A and all other passive systems in need of bass support
  • High efficiency
  • Stereo input (XLR/6.3 mm jack)
  • Stereo output and feed-through output (both XLR)
  • Active 2-way crossover
  • Level control
  • Phase inversion switch
  • High-pass filter, selectable via footswitch
  • Standby mode
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:250 W
Frequency range:40 - 350 Hz
Connections:1 x 3-pin XLR 1 6.3 mm plug (unbal.)
Length:430 mm
Width:43 cm
Height:31,5 cm
Depth:43 cm
Weight:15,50 kg
Amplifier power:150 W
Components:25 cm woofer (10")
Inputs: XLR/6.3 mm jack
Outputs: XLR
Footswitch: 6.3 mm jack
Distortion factor:0.05 %
Min. input sensitivity:0.775 V
Input impedance:4 ohms
Dimensions (H x W x D):430 x 430 x 315 mm
Packaging units
PU EAN Weight Dimensions
1 4026397222517 17,40 kg 55cm x 53cm x 44cm
Spare parts
Loading spareparts. Please wait...
User manual
Name Version Language
11036468-Manual-9669-1.000-de_en.pdf (1 MB) 1.000 de_en
