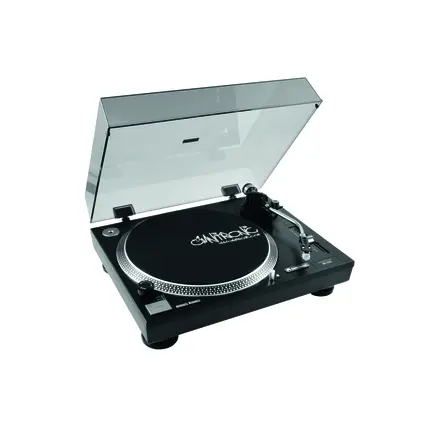

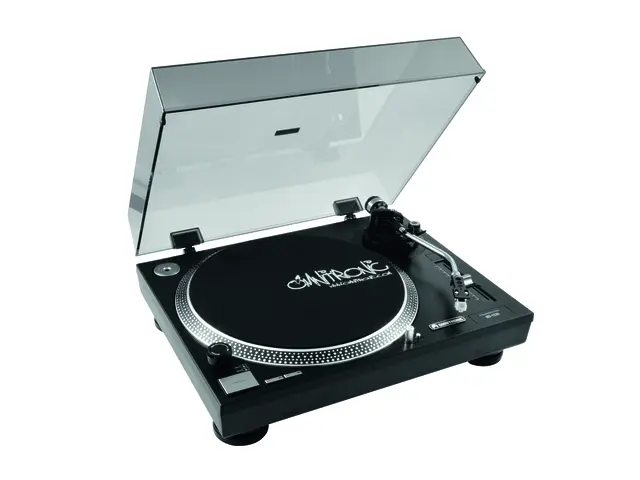

Belt drive DJ turntable, black
OMNITRONIC BD-1520 Turntable bk

OMNITRONIC

Belt drive DJ turntable, black

OMNITRONIC BD-1520 Turntable bk

Item no. 10603045

Features
  • Delivery includes high-quality pick-up system qualified for back-cueing
  • Adjustable ±10 % speed control
  • Large start/stop button
  • Instant start due to a powerful motor; short stop time via belt
  • Remote start possible via 6.3 mm connection (1/4") on the rear panel
  • Strobe lamp for exact speed adjustment
  • Target lamp
  • Delivery includes removable dustcover
  • Adjustable anti-skating
  • Shock-absorbing feet
Technical specifications
Type:Manual turntable
Drive method:Belt drive
Motor:DC motor
Speed:33 1/3 RPM and 45 RPM
Change time between the speeds:
33 ->45 RPM in <1 sec
45 ->33 RPM in <5 sec
Pitch adjustment:±10 %
Initial torque:>650 g/cm
Wow and flutter:<0.25 %
Start time:<1 sec
Stop time:<1 sec
Rumble:50 dB DIN B
Platter:Outer diameter 320 mm
Tonearm:S-shape with Cardan's suspension
Tonearm length:234 mm
Overhang:16 mm
Adjustable stylus pressure:0-4 g
Anti-skating range:0-7 g
Power supply:230 V AC, 50 Hz
115 V/60 Hz
Maximum starting current:260 mA
Output connectors:RCA, 6.3 mm jack
Dimensions:450 x 352 x 148 mm
Weight:4 kg
Power consumption:8.00 W
Height:14,8 cm
Depths:35,2 cm
Width:45 cm
Packaging units
PU EAN Weight Dimensions
1 4026397066708 11,60 kg 53,5cm x 43,5cm x 22cm
2 4026397067644 24,60 kg 54cm x 45,5cm x 47cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00007720.pdf 1.30 fr/en/de
Instruction belt installation
00033818.pdf
0.00 en
Catalog pages
Name Version Language
00097155.pdf 25.00 de
00097814.pdf 25.00 en
Service document
Name Version Language
00002116.pdf 0.00 de/en/fr/es
All images
Name Version Language
10603045.zip
