High-power amplifier

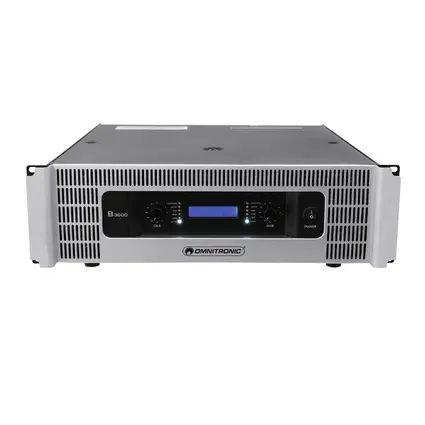

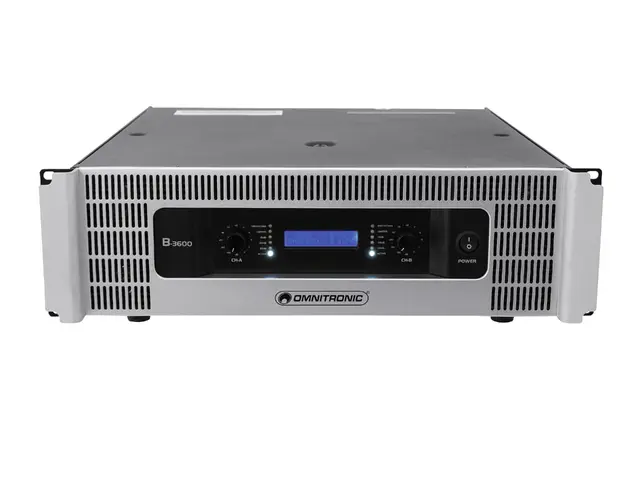

OMNITRONIC B-3600 Amplifier


High-power amplifier

OMNITRONIC B-3600 Amplifier

Item no. 10451830

Impressive peak power!
Like all technical fields audio technology has to be up-to-date. As in professional use the expectations for quality and power are high, a further development is all the more important. With the B series, OMNITRONIC presents its new top league of professional PA amplifiers. Equipped with powerful and high-grade power supplies, these power packs can generate up to 3,600 watts. Therefore, they perfectly feed power-hungry subwoofers and big tops. A particularly useful feature is the LCD status display: You can see all important operating conditions such as the temperature. Allowing you to keep track even with large setups.

High-power amplifier

  • Class H construction: 2-step power output
  • Enormous power with highest brilliance
  • 2 gain controls on the front panel
  • All operation modes controllable via LCD display
  • Signal inputs via XLR-mounting sockets
  • Signal outputs for daisy-chaining via XLR connector
  • Speaker connection via lockable Speaker plugs
  • Many protection circuits for optimized equipment protection
  • High-Cut and Low-Cut with a crossover frequency of 120 Hz, switch positions SUB, FULLRANGE, SAT
  • Very rugged housing with recessed screws
  • Rack installation with 3 units
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:1440,00 W
Width:48,3 cm
Height:8,9 cm
Depth:48,9 cm
Weight:35,76 kg
Power output sine:
Stereo 4 ohms2 x 1800 W
Stereo 8 ohms2 x 1000 W
8 ohms bridged1 x 3600 W
Frequency range:20-20000 Hz, ±0.5 dB
Damping factor:>700
Distortion factor:0.5 %
Signal-to-noise ratio:>95 dB
Channel seperation (at 1 kHz):>60 dB
Input impedance:20 kohms (balanced)
Input connectors:2 x XLR mounting socket
Output connectors:2 x Speaker (stereo)
Control elements:Power switch, input attenuators (one per channel), Mode switch - Stereo/Parallel/Bridged, Ground Lift
LED indicators:
Global:Stereo, Parallel, Bridge
Per channel:Signal, Clip/Limit, Protect
Protection circuits:Short-circuit, overvoltage, DC, thermal, softstart
Construction:Steel chassis, aluminum front panel
Packaging units
PU EAN Weight Dimensions
1 4026397351392 40,15 kg 64,5cm x 59cm x 21cm
