High-power amplifier 2 x 500 W/4 ohms

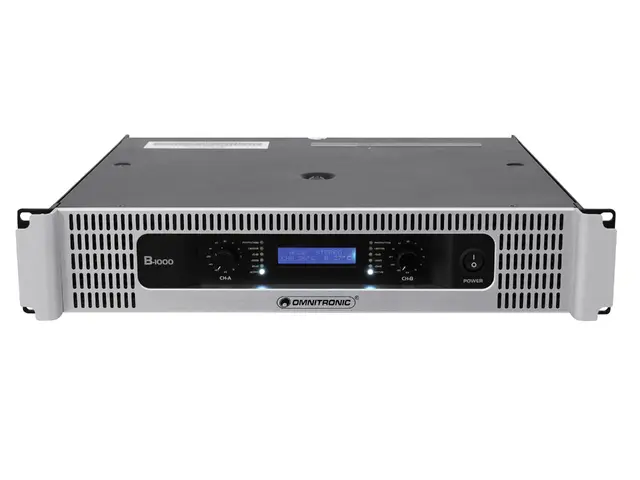

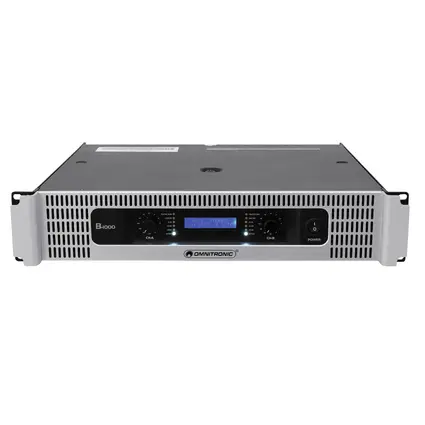

OMNITRONIC B-1000 Amplifier

OMNITRONIC

High-power amplifier 2 x 500 W/4 ohms

OMNITRONIC B-1000 Amplifier

Item no. 10451805

Impressive peak power!
Like all technical fields audio technology has to be up-to-date. As in professional use the expectations for quality and power are high, a further development is all the more important. With the B series, OMNITRONIC presents its new top league of professional PA amplifiers. Equipped with powerful and high-grade power supplies, these power packs can generate up to 3,600 watts. Therefore, they perfectly feed power-hungry subwoofers and big tops. A particularly useful feature is the LCD status display: You can see all important operating conditions such as the temperature. Allowing you to keep track even with large setups.
Features

High-power amplifier 2 x 500 W/4 ohms

  • Class A/B construction
  • Enormous power with highest brilliance
  • 2 gain controls on the front panel
  • All operation modes controllable via LCD display
  • Signal inputs via XLR mounting sockets
  • Speaker connection via lockable Speaker plugs or screw terminals
  • Many protection circuits for optimized equipment protection
  • High-Cut and Low-Cut with a crossover frequency of 120 Hz, switch positions SUB, FULLRANGE, SAT
  • Very rugged housing with recessed screws
  • Rack installation with 2 units
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:460,00 W
output:max. 1000 W
Width:48,3 cm
Height:8,9 cm
Depth:39,7 cm
Weight:16,12 kg
Power output sine:
Stereo 4 ohms2 x 500 W
Stereo 8 ohms2 x 350 W
8 ohms bridged1 x 1000 W
Frequency range:20-20000 Hz, ±0.5 dB
Damping factor:>300
Distortion factor:0.5 %
Signal-to-noise ratio:>95 dB
Channel seperation (at 1 kHz):>60 dB
Input impedance:20 kohms (balanced)
Input connectors:2 x XLR, 2 x 6.3 mm jack mounting socket
Output connectors:2 x Speaker (stereo), 2 x screw connectors
Control elements:Power switch, input attenuators (one per channel), Mode switch - Stereo/Parallel/Bridged, Ground Lift
LED indicators:
Global:Stereo, Parallel, Bridge
Per channel:Signal, Clip/Limit, Protect
Protection circuits:Short-circuit, overvoltage, DC, thermal, softstart
Construction:Steel chassis, aluminum front panel
Packaging units
PU EAN Weight Dimensions
1 4026397352610 19,45 kg 60cm x 57,5cm x 16cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
10451805-Manual-57096-1.100-de_en.pdf (1 MB) 1.100 de_en
Illustration
Name Version Language
10451805-Illustration-40815-1.000-de_en_fr.pdf (305 KB) 1.000 de_en_fr
Catalog pages
Service document
Name Version Language
10451805-Service-53900-1.000-en.pdf (107 KB) 1.000 en
Video file
Name Version Language
10451805-Video-57759-es_fr_en_de.flv (10 MB) 0.000 es_fr_en_de
All images
Name Version Language
10451805-Images.zip
