Digital high-power amplifier

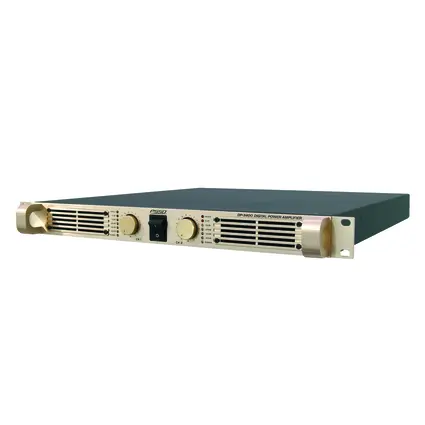

PSSO DP-3400 Full digital amplifier

PSSO

Digital high-power amplifier

PSSO DP-3400 Full digital amplifier

Item no. 10451735

Features
  • Extremely efficient due to PMW technology
  • Advantages in low weight and little space due to switch-mode power supply instead of large and heavy transformers
  • Switch mode power supply
  • High efficiency
  • Extremely wide frequency range covers the whole bandwidth
  • Power supply with softstart
  • High impulse stability
  • Stable metal housing, light and compact
  • Plain design with aluminum front panel
  • Rack installation with only 1 unit!
  • Complete protection set against overheat, overload, short-circuit, DC, softstart
  • Thermal stability via two radial fans
  • Highly efficient front-to-rear air routing
  • Detachable front grille for easy filter exchange
  • Electronically balanced inputs via XLR/Jack mounting sockets
  • Outputs via lockable Speaker plugs
  • Operation mode visible via LED display for Signal, Limit and Protect
  • 4-fold LED meter per channel
  • Input controls only adjustable with tools, power switch
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • Combines superior sound quality with highest reliabilty at significant lower weight
  • Excellent power/weight-relation
  • Reliable power amp for a wide range of applications
  • Suitable for compact PAs, multi PAs, rental companies
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power output (RMS):
Stereo 4 ohms2 x 1700 W
Stereo 8 ohms2 x 1000 W
Signal-to-Noise ratio:>105 dB
Total harmonic distortion:0.1 %
Damping factor:>500
Voltage gain:32 dB
Slew rate:40 V/µsec.
Crosstalk:>70 dB
Input sensitivity:1.1 V
Input impedance:10 kohms
Input connectors:2 x XLR/jack mounting socket
Output connectors:2 x Speaker (stereo)
Protection:Overheat, overload, short-circuit, DC, softstart
Cooling:2 radial fans, front-to-rear
Controls:Power switch, input attenuators
Indicators:Signal, Clip, Protect, 4-fold LED meter
Construction:Steel chassis, aluminum front panel
Dimensions:455 x 482 x 44 mm
Power/weight-relation:340 W/ kg
Power consumption:4600.00 W
Weight:10 kg
Frequency range:5 - 30000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397198850 13,00 kg 62cm x 58cm x 10cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00004464.pdf 1.10 de/en/fr
Data sheet
Name Version Language
00008612.pdf 0.00 de/en
All images
Name Version Language
10451735.zip
